Name: Kingston KVR26N19S6/4 4GB DDR4 2666MHz PC4 2666 UDIMM Desktop RAM
Brand: Kingston
SKU: RAM-4GB-2666-KVR26N19S6/4
Price: 198.00 MYR
Availability: InStock

Kingston KVR26N19S6/4 4GB DDR4 2666MHz PC4 2666 UDIMM Desktop RAM

RM198.00 RM299.00 RM

Kingston KVR26N19S6/4 4GB DDR4 2666MHz PC4 2666 UDIMM Desktop RAM

Price	RM198.00 RM299.00 RM
Product SKU	RAM-4GB-2666-KVR26N19S6/4
Brand	Kingston
Size (L x W x H)	8 cm x 4 cm x 19 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Power Supply : VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Single-rank
8 internal banks; 2 groups of 4 banks each
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology



Description

This document describes ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

Power Supply : VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
8 internal banks; 2 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus

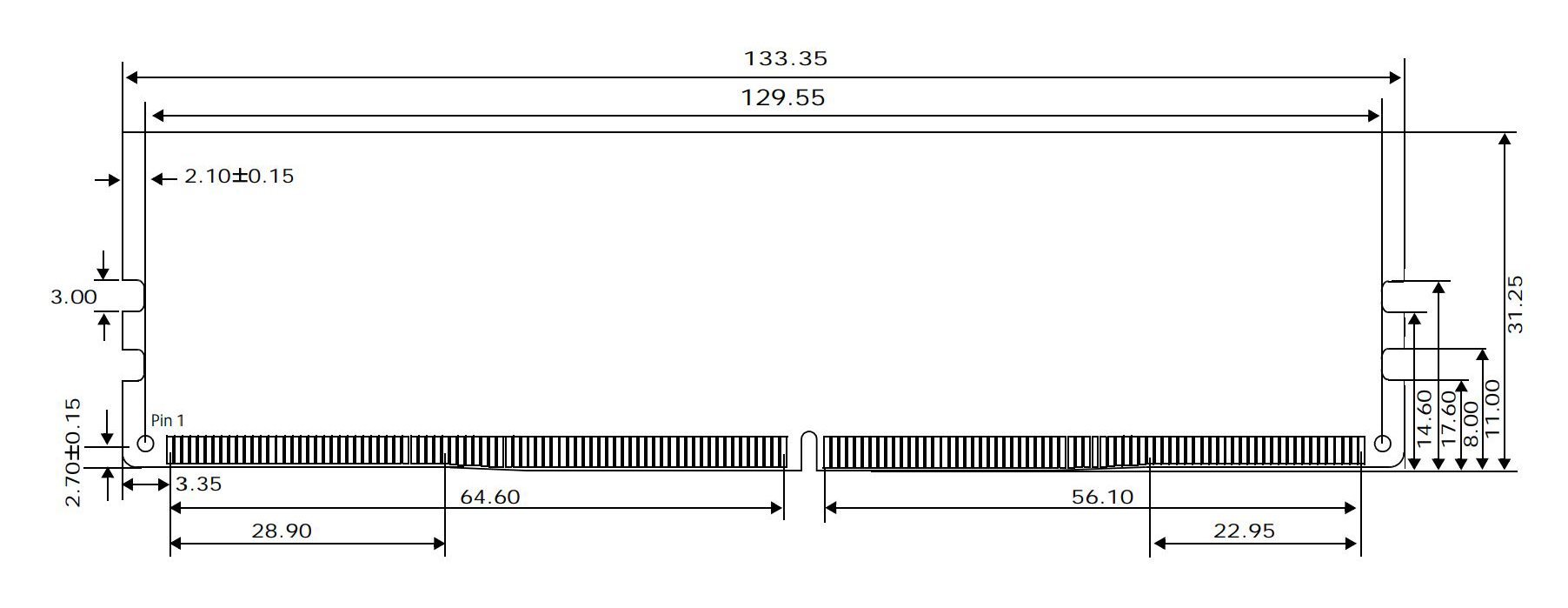

PCB : Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

Specifications

CL(IDD)	19 cycles
Row Cycle Time (tRCmin)	45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	350ns(min.)
Row Active Time (tRASmin)	32ns(min.)
Maximum Operating Power	TBD W*
UL Rating	94V - 0
Operating Temperature	0ºC to +85ºC
Storage Temperature	-55ºC to +100ºC
