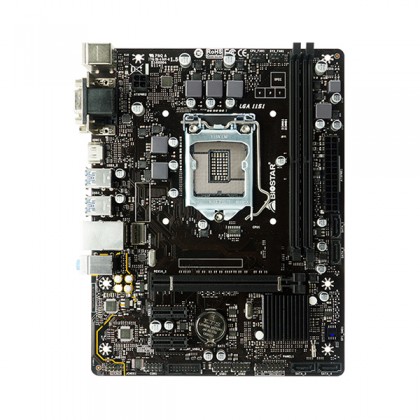

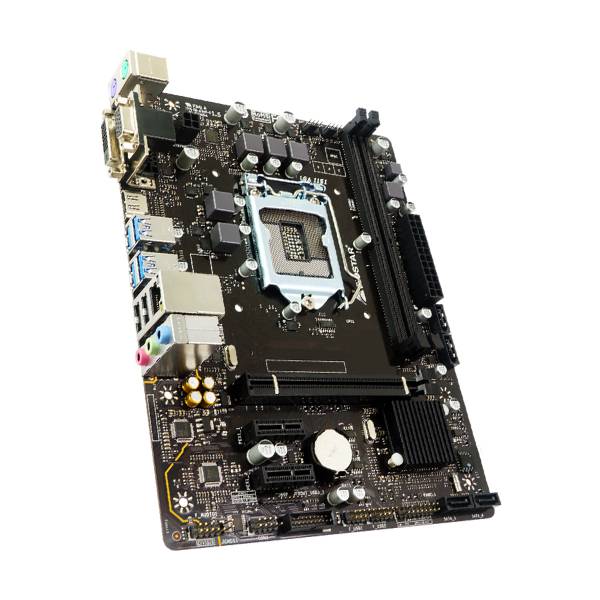

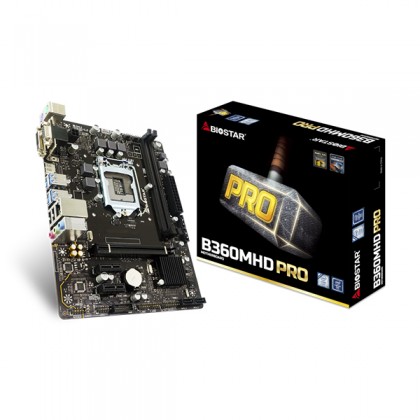

Biostar B360MHD PRO 8th Gen Intel B360 LGA 1151 DDR4 HDMI DVI VGA Micro ATX Motherboard
| Price | RM285.00 RM399.00 RM |
| Product SKU | MOBO-BIOSTAR-B360MHD-PRO |
| Brand | Biostar |
| Size (L x W x H) | 30 cm x 9 cm x 25 cm |
| Availability | Out Of Stock |
Description
Highlight
- Supports 8th Generation Intel® Core™ Processor
- Intel B360 single chip architecture
- Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
- Support USB 3.1 Gen1
- Support HDMI display port
- Support GbE LAN
Specifications
| Chipset | Intel B360 |
| CPU Support |
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
8th Generation Intel® Core™ Processor Family only support 300-Series
|
| Memory | Support Dual Channel DDR4 1866/2133/2400/2666 MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory |
| Integrated Video | By CPU model Supports DX12 Supports HDCP |
| Storage | 4 x SATA3 Connector |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| Codec | Realtek ALC887 8-Channel HD Audio Support HD Audio |
| USB | 6 x USB 3.1 Gen1 Ports(4 on rear I/Os and 2 via internal header) 1 x USB 3.1 Gen1 Header 6 x USB 2.0 Ports(2 on rear I/Os and 4 via internal header) 2 x USB 2.0 Header |
| Expansion SLO |
T 1 x PCI-E 3.0 x16 Slot
2 x PCI-E 3.0 x1 Slots
|

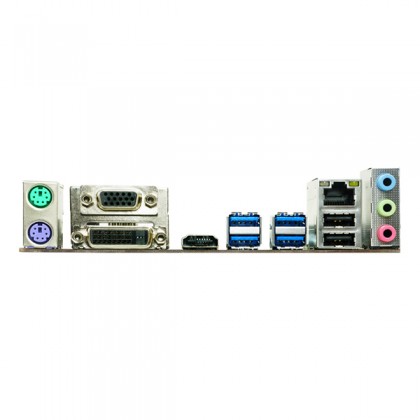

| Rear I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 4 x USB 3.1 Gen1 Port 2 x USB 2.0 Port 1 x HDMI Connector, resoltuion up to 4096*2160 @ 24Hz, compliant with HDMI 1.4 1 x DVI-D Connector, resolution up to 1920*1200@60Hz 1 x VGA Port, resolution up to 1920*1600@60Hz 1 x LAN port 3 x Audio Jacks |
| Internal I/O |
1 x USB 3.1 Gen1 Header(each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers(each header supports 2 USB 2.0 ports)
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
|
| Dimension | Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L ) |
| OS Support | Support Windows 10(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice |
| Accessories | 1 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
Reviews (0)
view all
back
What's in the box
- 1 x Biostar B360MHD PRO 8th Gen Intel B360 LGA 1151 DDR4 HDMI DVI VGA Micro ATX Motherboard
- 1 x I/O Shield
- 1 x Quick Installation Guide
- 1 x User Manual CD
- 2 x SATA Cable
