Description
Highlight
- Supports 8th Generation Intel® Core™ Processor
- Intel H310 single chip architecture
- Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
- Support USB 3.1 Gen1
- Support HDMI display port
- Support GbE LAN

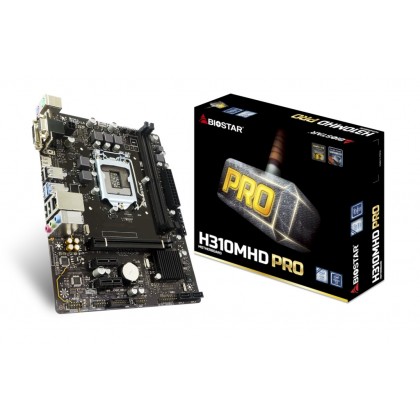

Biostar H310MHD PRO Micro ATX Motherboard
|
Specification
| Chipset |
Intel H310 |
| CPU SUPPORT |
8th Gen Intel® Core™ i7 LGA 1151 Processor
8th Gen Intel® Core™ i5 LGA 1151 Processor
8th Gen Intel® Core™ i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor |
| MEMORY |
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory |
| EXPANSION SLOT |
1 x PCI-E 3.0 x16 Slot
2 x PCI-E 2.0 x1 Slot |
| STORAGE |
4 x SATA3 Connector |
| USB |
2 x USB 3.1 Gen1 Port
1 x USB 3.0 Header
4 x USB 2.0 Port
1 x USB 2.0 Header |
| LAN |
Realtek RTL8111H - 10/100/1000 Controller |
| INTEGRATED VIDEO |
By CPU model
Supports DX12
Supports HDCP |
| CODEC |
Realtek ALC887 8-Channel HD Audio
Support HD Audio |
| READ I/O |
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Port
4 x USB 2.0 Port
1 x HDMI Connector, resoltuion up to 4096*2160@24Hz, compliant with HDMI 1.4
1 x DVI-D Connector, resolution up to 1920*1200@60Hz
1 x VGA Port, resolution up to 1920*1600@60Hz
1 x RJ-45 Port
3 x Audio Connector |
| INTERNAL I/O |
1 x USB 3.1 Gen1 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
1 x Serial Header |
| H/W MONITORING |
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring |
| DIMENSION |
Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L ) ( W x L ) |
| OS SUPPORT |
Support Windows 10(64bit) |
| ACCESSORIES |
1 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual |

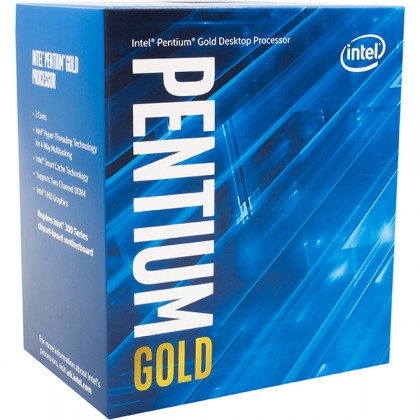

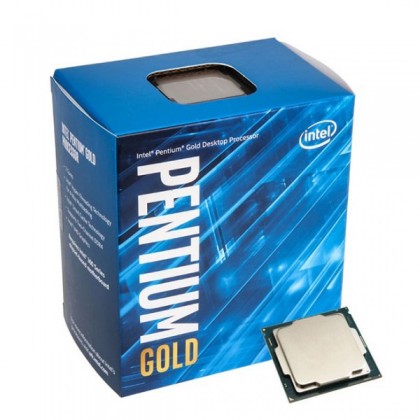

Intel Pentium Gold G5400 LGA1151 Desktop Processor
Essentials
- Product Collection ;Intel® Pentium® Gold Processor Series
- Code Name : Products formerly Coffee Lake
- Vertical Segment : Desktop
- Processor Number : G5400
- Status : Launched
- Launch Date : Q2'18
- Lithography : 14 nm
- Use Conditions : Embedded Broad Market Commercial Temp, PC/Client/Tablet
Performance
- # of Cores : 2
- # of Threads : 4
- Processor Base Frequency : 3.70 GHz
- Cache : 4 MB SmartCache
- Bus Speed : 8 GT/s DMI3
- TDP: 58 W
Supplemental Information
- Embedded Options Available: Yes
Memory Specifications
- Max Memory Size (dependent on memory type) : 64 GB
- Memory Types : DDR4-2400
- Max # of Memory Channels : 2
- Max Memory Bandwidth : 37.5 GB/s
- ECC Memory Supported ‡ : Yes
Processor Graphics
- Processor Graphics ‡ : Intel® UHD Graphics 610
- Graphics Base Frequency : 350 MHz
- Graphics Max Dynamic Frequency : 1.05 GHz
- Graphics Video Max Memory : 64 GB
- 4K Support : Yes, at 60Hz
- Max Resolution (HDMI 1.4)‡ : 4096x2304@24Hz
- Max Resolution (DP)‡ : 4096x2304@60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡ : 4096x2304@60Hz
- DirectX* Support : 12
- OpenGL* Support : 4.5
- Intel® Quick Sync Video : Yes
- Intel® InTru™ 3D Technology : Yes
- Intel® Clear Video HD Technology : Yes
- Intel® Clear Video Technology : Yes
- # of Displays Supported ‡ : 3
- Device ID : 0x3E90/x93
Expansion Options
- Scalability : 1S Only
- PCI Express Revision : 3.0
- PCI Express Configurations ‡ : Up to 1x16, 2x8, 1x8+2x4
- Max # of PCI Express Lanes :16
Package Specifications
- Sockets Supported : FCLGA1151
- Max CPU Configuration : 1
- Thermal Solution Specification : PCG 2015C (65W)
- TJUNCTION : 100°C
- Package Size : 37.5mm x 37.5mm
Advanced Technologies
- Intel® Optane™ Memory Supported ‡ : No
- Intel® Turbo Boost Technology ‡ : No
- Intel® vPro™ Platform Eligibility ‡ : No
- Intel® Hyper-Threading Technology ‡ : Yes
- Intel® Virtualization Technology (VT-x) ‡ : Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes
- Intel® TSX-NI : No
- Intel® 64 ‡ : Yes
- Instruction Set : 64-bit
- Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2
- Idle States : Yes
- Enhanced Intel SpeedStep® Technology : Yes
- Thermal Monitoring Technologies :Yes
- Intel® Identity Protection Technology ‡ : Yes
- Intel® Stable Image Platform Program (SIPP) : No
Security & Reliability
- Intel® AES New Instructions :Yes
- Secure Key :Yes
- Intel® Software Guard Extensions (Intel® SGX) :Yes
- Intel® Memory Protection Extensions (Intel® MPX) :Yes
- Intel® OS Guard : Yes
- Intel® Trusted Execution Technology ‡ : No
- Execute Disable Bit ‡ : Yes
- Intel® Boot Guard : Yes

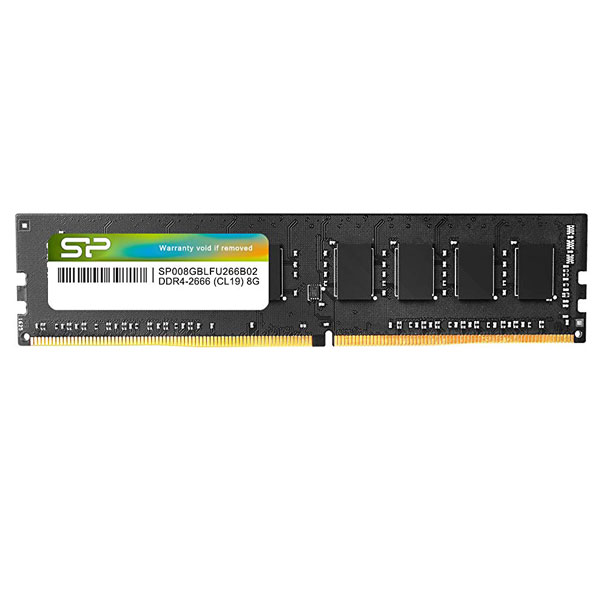

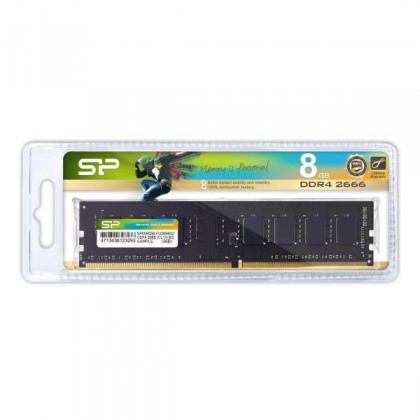

Silicon Power 8GB DDR4 PC4 2666 UDIMM Desktop RAM SP008GBLFU266B02

Specifications
- Specifications
- Capacity: 8GB
- Form Factor: 288Pin UDIMM non-ECC
- Frequency: (Speed)2133 MHz/2400MHz/2666MHz
- CAS Latency: CL15(2133)/CL17(2400)/CL19(2666)
- Voltage: 1.2 V
- Warranty: Lifetime warranty
|
What's in the box

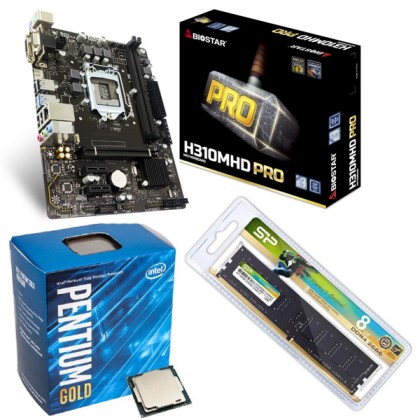

1 x Biostar H310MHD PRO Micro ATX Motherboard + Intel Pentium Gold G5400 LGA 1151 Desktop Processor + Silicon Power 8GB DDR4 PC4 2666 UDIMM Desktop RAM DIY Set
