| Price | RM351.00 RM386.00 RM |
| Product SKU | DVR-DAHUA-DH-XVR1B08H-I |
| Brand | Dahua |
| Size (L x W x H) | 38 cm x 29 cm x 11 cm |
| Availability | |
Description
Highlight
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
- Up to 8 channels video stream (analog channel) SMD Plus
Features
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
- Up to 8 channels video stream (analog channel) SMD Plus
Specification
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels : Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. |
| Camera Input | CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. CVBS: PAL/NTSC |
| IP Camera Input | Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function SMD will be disabled. |
| Encoding Capacity | Main Stream: All channel 5M-N@(1 fps–10 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 Kbps–6144 Kbps |
| Audio Sampling | 8 KHz, 16 bit |
| Audio Bit Rate | 64 Kbps |
| Video Output | 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711u/PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF 21.06; CGI Conformant |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; alarm; POS |
| Recording Playback | 1/4/8/9 |
| Backup Method | USB Device and Network |
| Playback Mode | Instant playback, general playback, event playback, tag playback |
| Alarm | |
| General Alarm | Motion detection, Video Loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
| Ports | |
| Audio Input | 1-channel RCA (external) 8-channel BNC (coaxial audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA Port,up to 16TB, the maximum HDD capacity varies with environment temperature |
| USB | 2 USB ports (USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12VDC, 1.5A |
| Power Consumption | <7 W |
| Net Weight | 0.57 kg (1.26 lb) |
| Gross Weight | 1.05 kg (2.31 lb) |
| Product Dimensions | 198.3 mm × 203.4 mm × 41.5 mm (7.81'' × 8.01'' × 1.63'') (W × D × H) |
| Packaging Dimensions | 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W× D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024 |
What In The Box

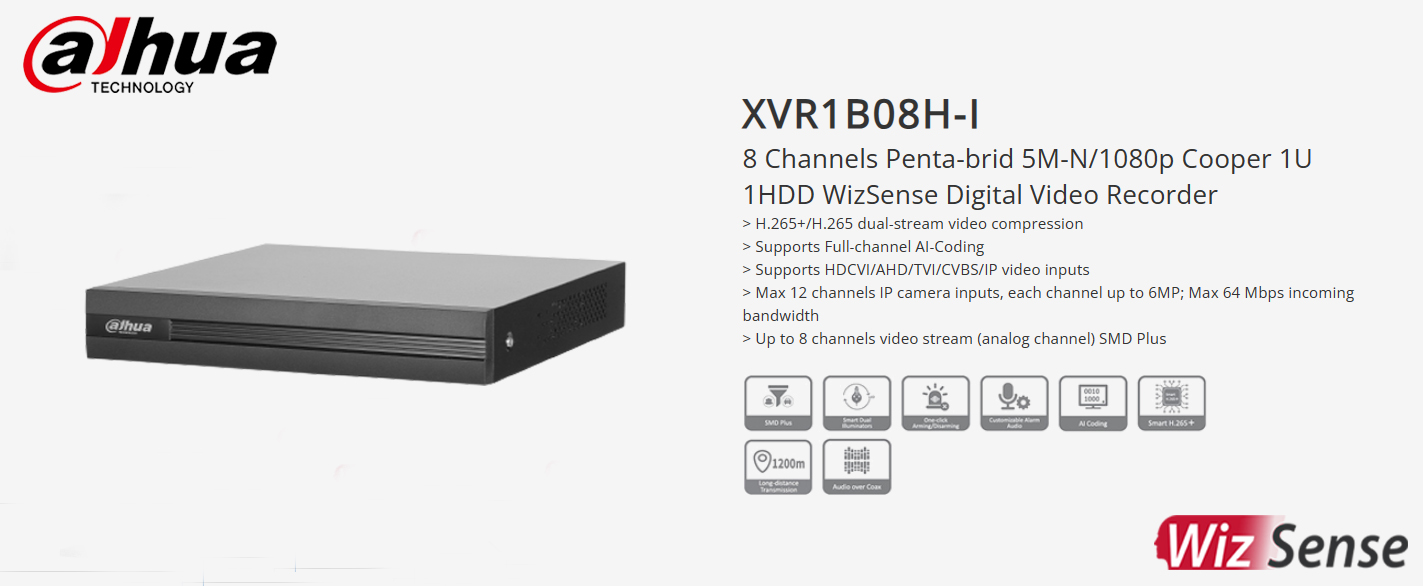

- 1 x DAHUA DH-XVR1B08H-I 8CH 5MP Wiz Sense HDCVI DVR
- 1 x DC 12V 1.5A Adaptor for DVR
- 1 x Mouse
- 1 x Sata Cable
- 1 x HardDisc Power Cable
- 1 x User Manual
Warranty
1 Year Limited Warranty
Local Manufacturer Warranty
