GENERAL

Standards

• IEEE 802.3/u/z
• Auto MDI/MDI-X
• SATA I, II, III

HDD (not included)

• Reformat Disk
• Up to 6TB HDD
• EXT3 file system

Two Reset Modes

• Reset firmware GUI button
• HW reset button (hold for 10 seconds)

Reset Button

• Reset to factory default

PERFORMANCE

Flash ROM

• 128 MB

RAM

• 1024MB DDR III

Network Interface

• Gigabit Ethernet LAN port (10/100/1000 Mbps)

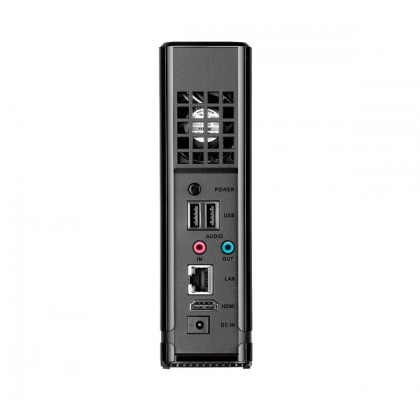

I/O Ports

• RJ45 Port
• DC-in jack
• HDMI
• 2 x USB 2.0 port (Mouse, UPS, Flash Disk, HDD with external power)

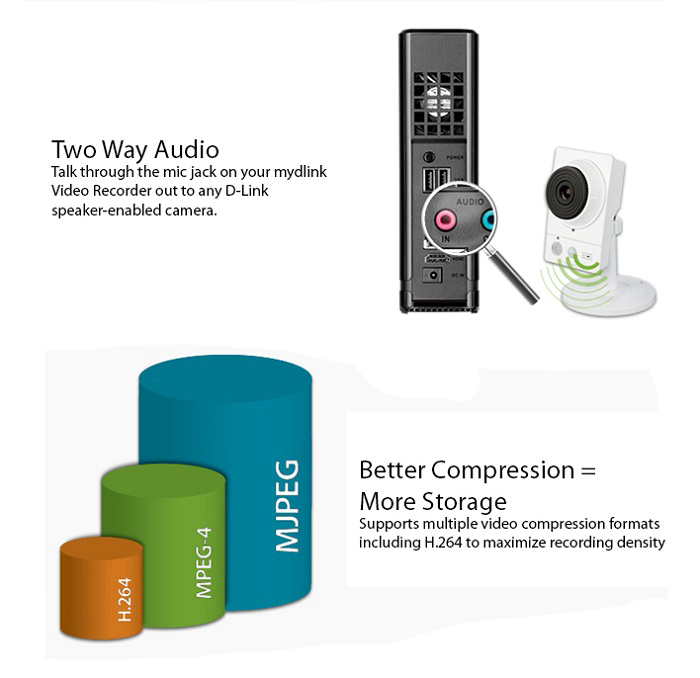

• 3.5mm audio input x 1, output x 1

Power Adapter

• DC 12V 3A

SOFTWARE FEATURES

OS

• Linux

Supported Cameras

• Supports all D-Link network cameras and megapixel resolution

System Requirements for Web Interface

• Browser: Internet Explorer, Firefox, Chrome, or Safari

Recording Performance

• First Video Profile:
• H.264 at 720p at 270 FPS
• H.264 at 1080p at 135 FPS
• Secondary Video Profile:
• H.264 at VGA at 135 fps

Camera Search

• UPnP

Audio and Video Recording

• Synchronized audio & video recording

Compression Format

• H.264, MPEG-4, MJPEG

Video Setting

• Resolution, quality, frame rate, enable audio, go to camera interface

Recording Type

• Record by schedule, manual, and event-based recording
• Motion-triggered recording

Remote Live View

• Supported via browser
• Supports mydlink portal

Remote Live View Control

• Live view, preset/go, patrol, focus, PTZ functions, snapshot, full screen, digital zoom

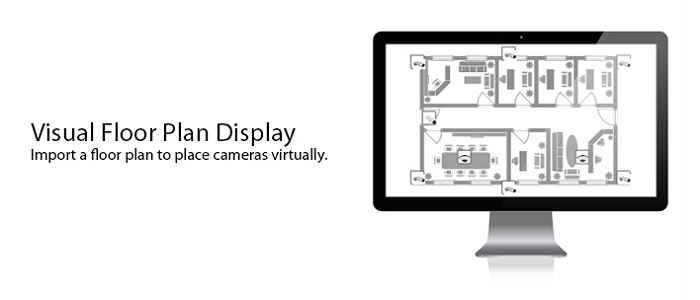

• e-map

Remote Playback Control

• Playback with normal, fast forward/rewind and step forward/rewind

Remote Playback

• Supported via browser and NVR client

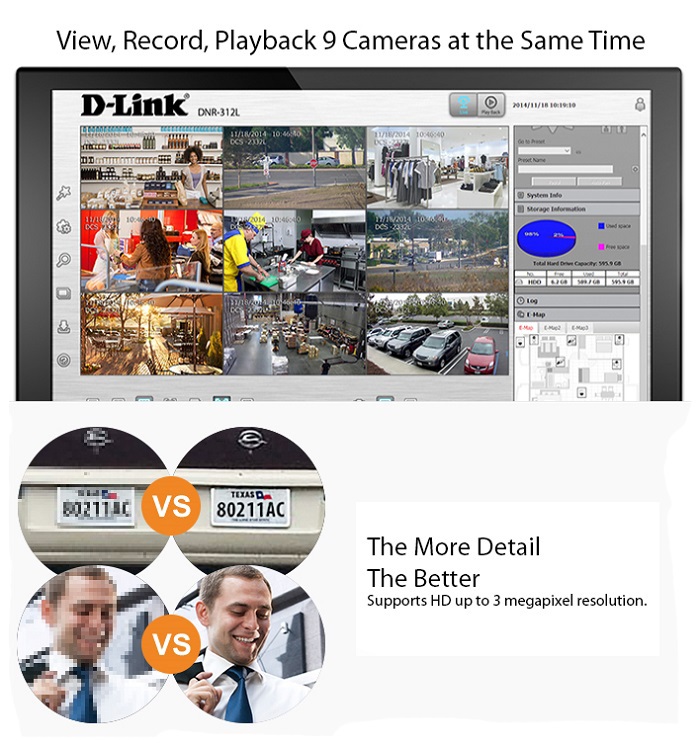

• Playback system with timeline GUI, search by event, area, cameras, date, and time
• Browser or NVR Remote Client support four channel simultaneous playback
• Digital zoom

Overwrite Recording

• Auto recycling when disk storage is full

File Export

• Export videos to AVI or ASF file
• Export images to BMP or JPG file

User Account

• Additional accounts can be created to allow users system access and specify authorization for camera channels, PTZ

DDNS

• D-Link DDNS and DynDns server support

System Time

• Set the system time (D-Link NTP, input time, sync with computer, Daylight Saving Time)

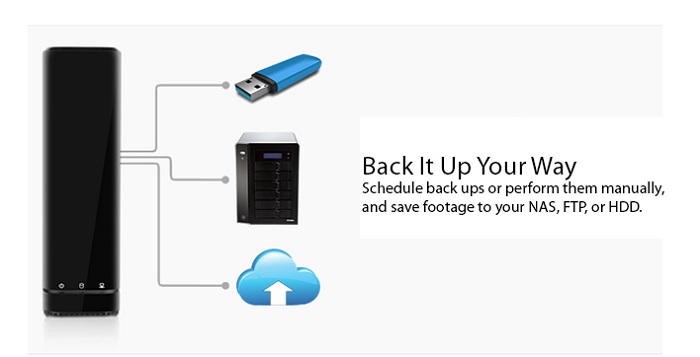

Remote Backup

• Remote backup software can backup raw data to redundant storage

System Status

• Camera status
• Still picture EMAP support
• System status

Network Service Protocols

• IPV4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client
• DNS Client
• DDNS Client
• SMTP Client
• FTP Client
• HTTP Server
• IP filtering
• UPnP
• HTTPS

User Interface

• HTTP Web browser
• mydlink portal

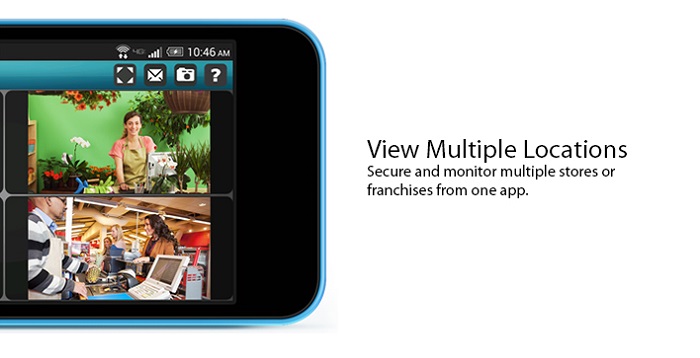

• Smart phone
• NVR Search utility

Package Contents

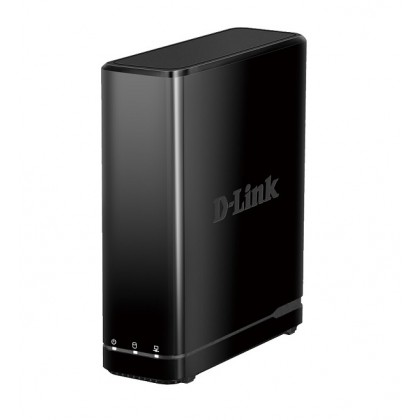

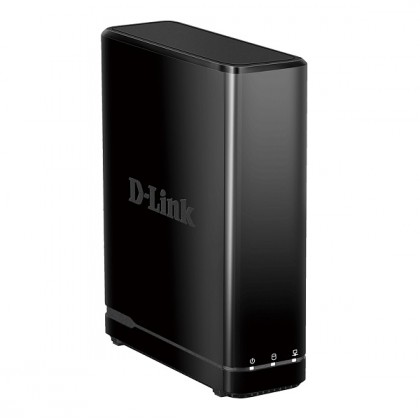

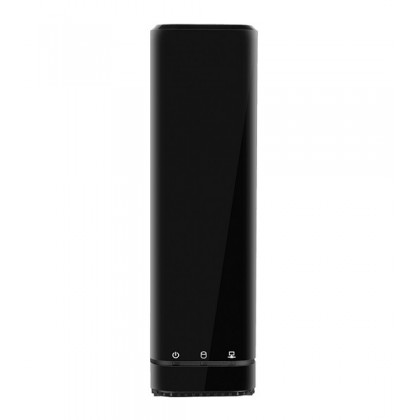

• mydlink One-bay standalone NVR
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
• CD-ROM with:
• Software
• Product Documentation

PHYSICAL

Weight

• 15 ounces (425 grams)

Maximum Power Consumption

• 30 W

Temperature

• Operating: 32° to 104°F (0° to 40°C)
• Storage: 32° to 104°F (0° to 40°C)

Humidity

• 5% to 90% non-condensing

Certifications

• CE
• FCC
• RoHS
• BSMI

What's in the box

• 1 x mydlink Network Video Recorder with HDMI
• 1 x Power adapter
• 1 x Ethernet cable
• 1 x Quick Installation Guide
• 1 x CD-ROM
• 1 x Warranty documents

Warranty
3 Months Warranty
Local Manufacturer Warranty
