RM338.00 RM399.00

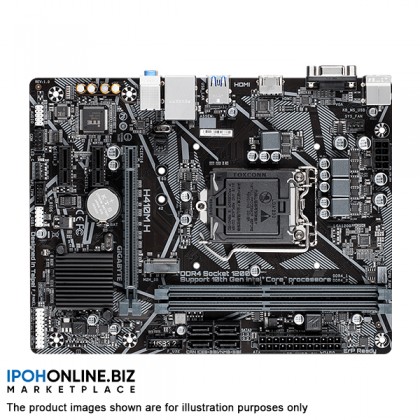

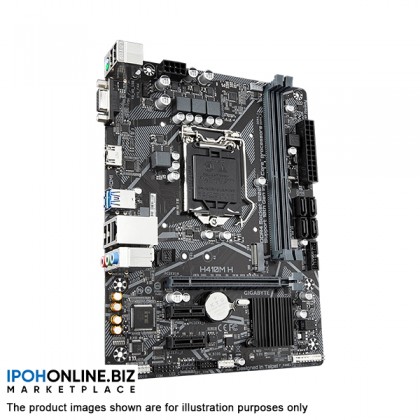

GIGABYTE H410M H Intel H410 LGA1200 DDR4 USB3.2 M.2 4K HDMI VGA Ultra Durable MicroATX Motherboard with Gaming LAN
Price RM338.00 RM399.00
Product SKU MOBO-GIGABYTE-H410M-H
Brand GIGABYTE
Size (L x W x H) 30 cm x 26 cm x 8 cm
Availability Out Of Stock
Description

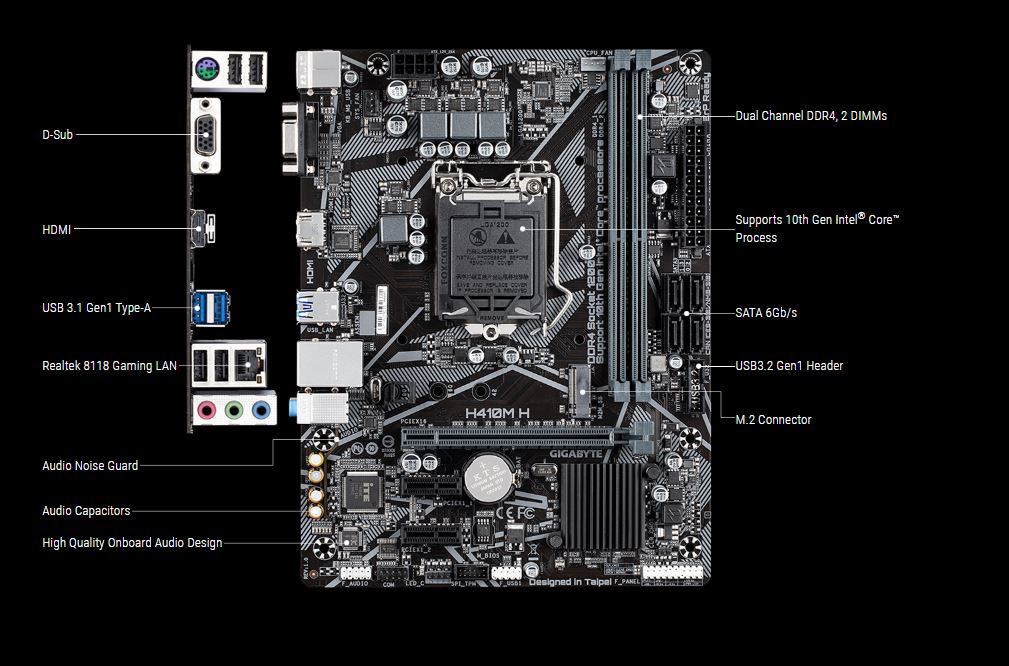

Highlight
  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio With High Quality Audio Capacitors

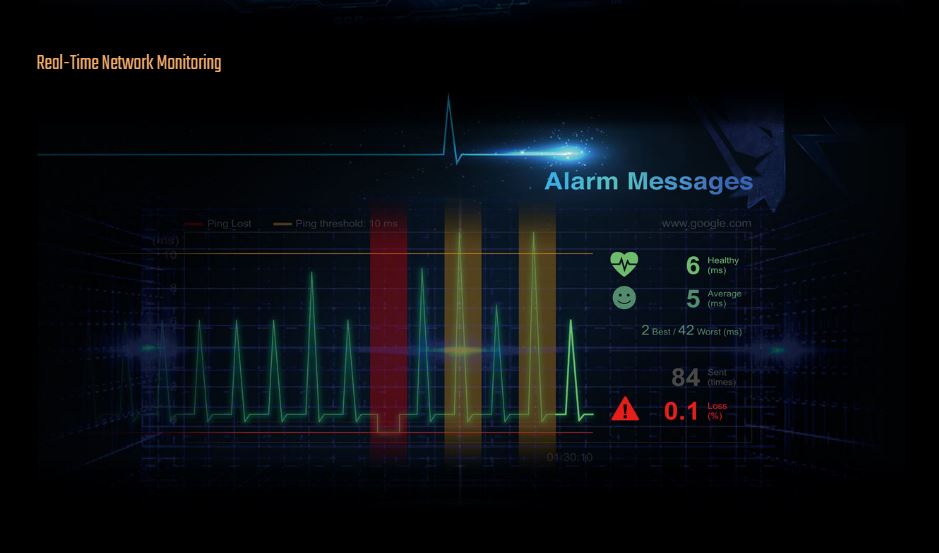

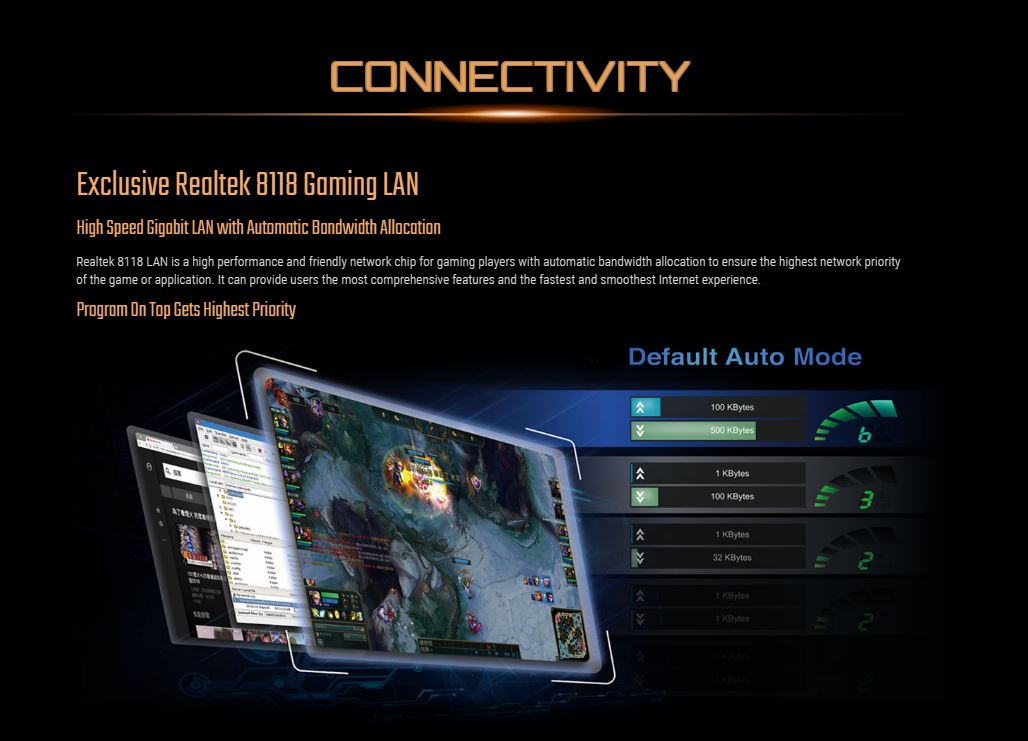

  • GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management

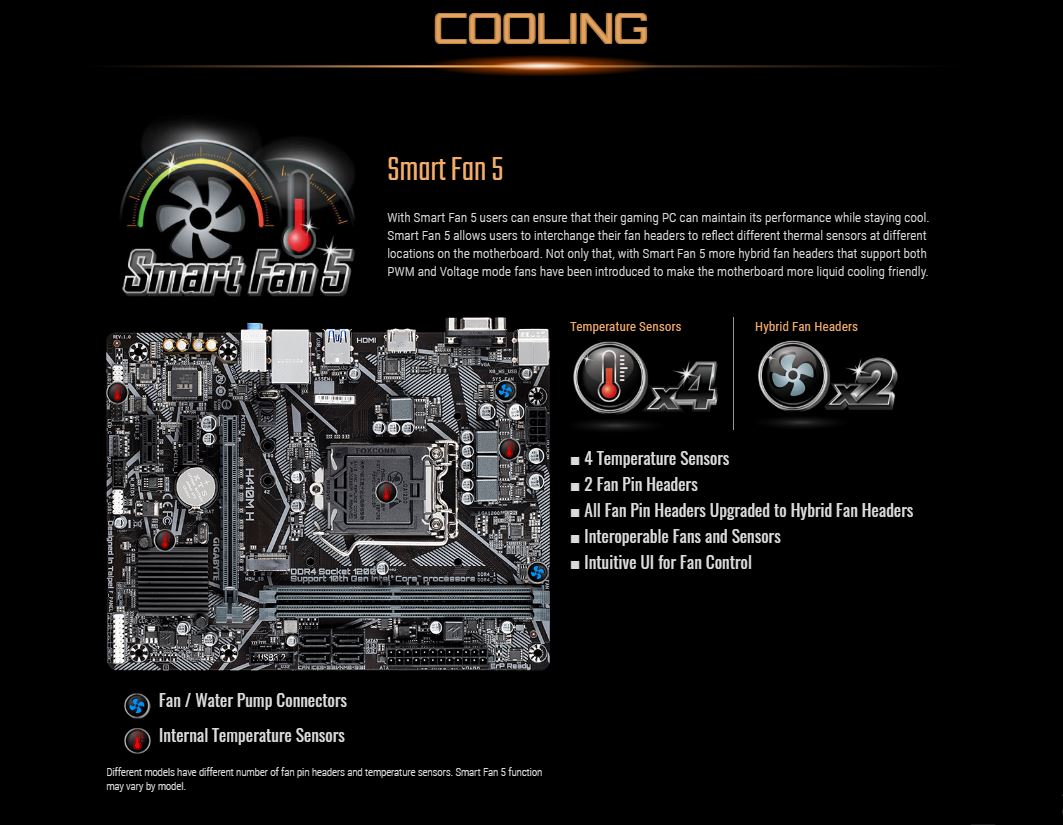

  • Smart Fan 5 Features Multiple Temperature Sensors And Hybrid Fan Headers With FAN STOP

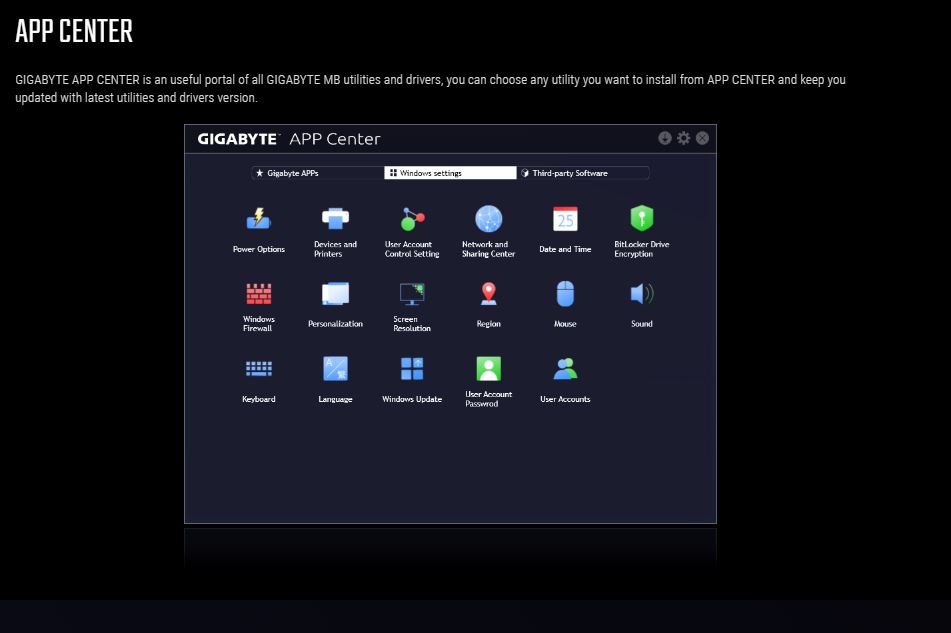

  • GIGABYTE APP Center, Simple And Easy Use
  • Anti-Sulfur Resistors Design
  • FCLGA1200
  • Intel®️ 400 Series Chipsets
  • GIGABYTE Gaming LAN
  • HDMI VGA
  • M.2 SSD



Specification

CPU Support for 10th Generation Intel® Core™ i9 Processor/Intel® Core™ i7 Processor/Intel® Core™ i5 Processor/Intel® Core™ i3 Processor/Intel® Pentium® Processor.Intel® Celeron® Processor In The LGA1200 Package
L3 Cache Varies With CPU
Chipset Intel® H410 Express Chipset
Memory Intel® Core™ i9/i7 Processors:
Support For DDR4 2933/2666/2400/2133 MHz Memory Modules.
Intel® Core™ i5/i3/Pentium®/Celeron® Processors: Support For DDR4 2666/2400/2133 MHz Memory Modules
2 x DDR4 DIMM Sockets Supporting Up To 64 GB (32 GB Single DIMM Capacity) Of System Memory
Dual Channel Memory Architecture
Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)
Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
Support For Extreme Memory Profile (XMP) Memory Modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics Support : 1 x D-Sub Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz , 1 x HDMI Ports, Supporting A Maximum Resolution Of 4096x2160@30 Hz * Support For HDMI 1.4 Version And HDCP 2.3. Maximum Shared Memory Of 512 MB
Audio Realtek® ALC887 Codec ,  High Definition Audio , 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Need To Open The Audio Software And Select Device Advanced Settings > Playback Device To Change The Default Setting First. Please Visit GIGABYTE's Website For Details On Configuring The Audio Software.
LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots 1 x PCI Express x16 Slot, Running At x16
2 x PCI Express x1 Slots
(The PCI Express Slots Conform To PCI Express 3.0 Standard.)
Supports Up To ASPM L1.2 Power Management Protocols

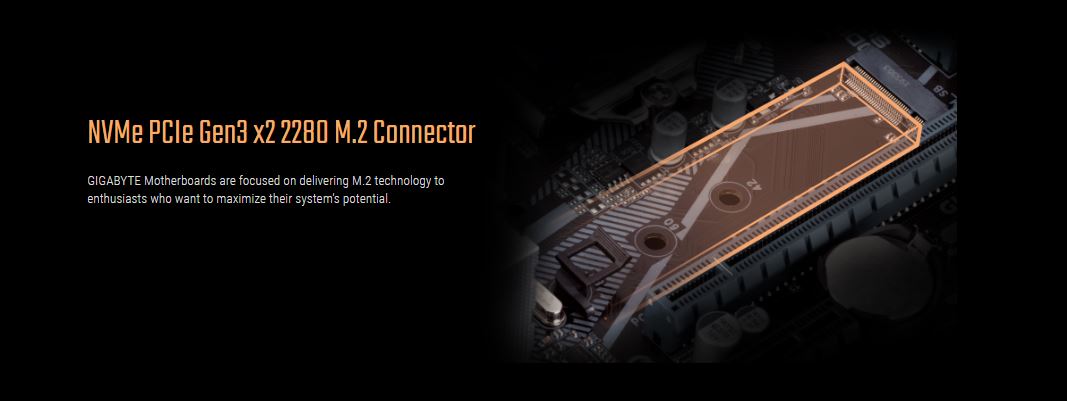

Storage Interface 1 x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 SATA And PCIe x2 SSD Support)
4 x SATA 6Gb/s Connectors
* Refer To "1-7 Internal Connectors," For The Installation Notices For The M.2 And SATA Connectors.
M.2 Connectors Support Up To ASPM L1.2 PCIe Power Management Protocols
USB (Chipset) 4 x USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 ports Available Through The Internal USB Header)
6 x USB 2.0/1.1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Internal I/O Connectors 1 x 24-Pin ATX Main Power Connector
1 x 8-Pin ATX 12V Power Connector
1 x CPU Fan Header
1 x System Fan Header
1 x RGB LED Strip Header
4 x SATA 6Gb/s Connectors
1 x M.2 Socket 3 connector
1 x Front Panel Header
1 x Front Panel Audio Header
1 x USB 3.2 Gen 1 Header
1 x USB 2.0/1.1 Header
1 x Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
1 x Serial Port Header
1 x Clear CMOS Jumper

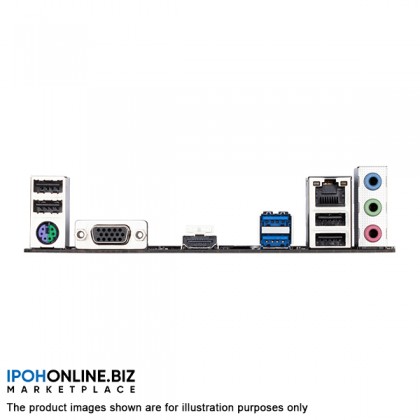

Back Panel Connectors 1 x PS/2 Keyboard/Mouse Port
1 x D-Sub Port
1 x HDMI Port
2 x USB 3.2 Gen 1 Ports

4 x USB 2.0/1.1 Ports
1 x RJ-45 Port
3 x Audio Jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage Detection
Temperature Detection
Fan Speed Detection
Overheating Warning
Fan Fail Warning
Fan Speed Control
* Whether The Fan Speed Control Function Is Supported Will Depend On The Cooler You Install.
BIOS 1 x 128 Mbit Flash
Use Of Licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support For APP Center
* Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup

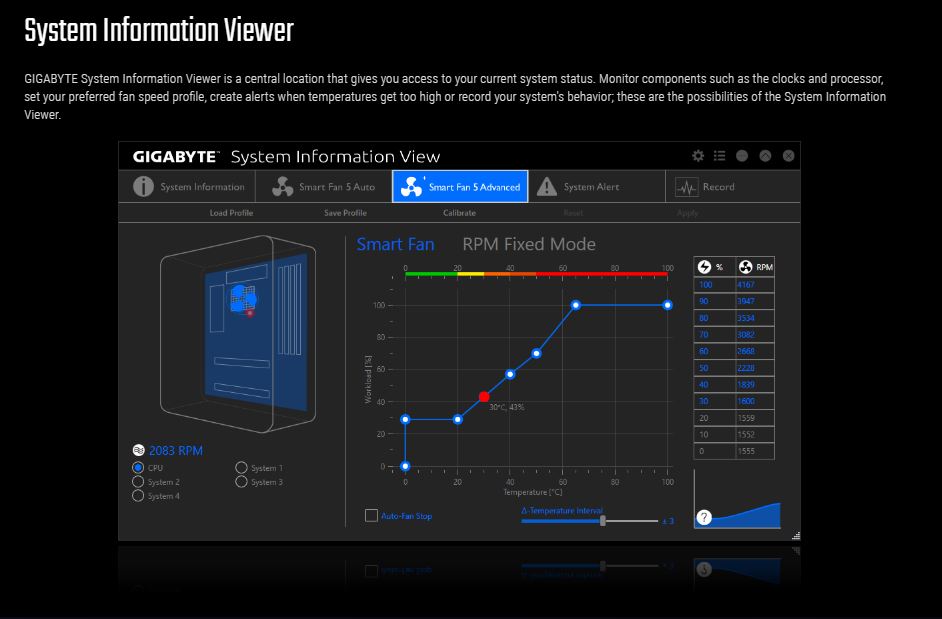

System Information Viewer
Support For Q-Flash
Support For Xpress Install
Bundled Software Norton® Internet Security (OEM Version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System Support For Windows 10 64-bit
Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm





What's In The Box

  • 1 x GIGABYTE H410M H Intel H410 LGA1200 DDR4 USB3.2 M.2 4K HDMI VGA Ultra Durable MicroATX Motherboard with Gaming LAN
  • 1 x Motherboard Driver Disk
  • 1 x User's Manual
  • 2 x Two SATA Cables
  • 1 x I/O Shield





Warranty
3 Years Warranty
Local Manufacturer Warranty
