Gigabyte AMD Socket AM4 X470/rev.1.0 DDR4 2-CH PCI-Ex16 ATX USB3.1 GbE LAN M.2 7.1-CH Audio Aorus Ultra Gaming
RM648.00 RM699.00 RM
Gigabyte AMD Socket AM4 X470/rev.1.0 DDR4 2-CH PCI-Ex16 ATX USB3.1 GbE LAN M.2 7.1-CH Audio Aorus Ultra Gaming
Price RM648.00 RM699.00 RM
Product SKU MOBO-GIGABYTE-X470-AORUS-ULTRA-GAMING
Brand Gigabyte
Size (L x W x H) 40 cm x 33 cm x 13 cm
Availability Out Of Stock
Description
Highlight
  • Supports AMD Ryzen™ 5000 series / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+3 Phase Hybrid Digital PWM Design
  • 2-Way CrossFire/ SLI Graphics Support with Dual Armor and Ultra Durable™ Design
  • ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with WIMA Audio Capacitors

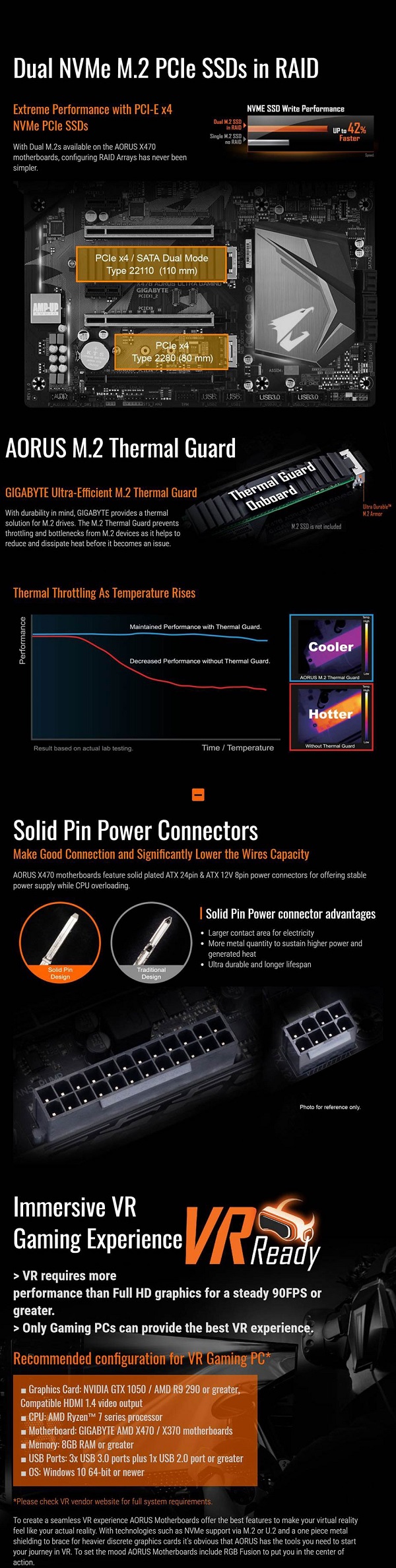

  • Dual Ultra-Fast M.2 with NVMe PCIe X4 with One Thermal Guard
  • RGB FUSION 2.0 with Multi-zone LED Light Show Design, Supports Digital LED & RGB LED Strips
  • Intel® Ethernet LAN with cFOS Speed Internet Accelerator
  • USB DAC-UP 2 with Adjustable Voltage
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • CEC 2019 Ready, Save Power with a Simple Click



Specifications

CPU AM4 Socket:
  1. Supports AMD Ryzen™ 5000 series processors / Ryzen 5000 G-Series / 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset
  1. AMD X470
Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor:
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz*
    * Support for HDMI 2.0 version and HDCP 2.2.*
    * Actual support may vary by CPU.
Audio
  1. Realtek® ALC1220-VB codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)*
    * Actual support may vary by CPU.
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)*
    * Actual support may vary by CPU.
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2B_SOCKET connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SOCKET connector.
  4. 2 x PCI Express x1 slots
    (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2* SSD support) (M2A_SOCKET)
    * Actual bandwidth may vary by CPU.
  2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
  3. 6 x SATA 6Gb/s connectors
  4. Support for RAID 0, RAID 1, and RAID 10
USB ASMedia® USB 3.1 Gen 2 Controller:
  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
  1. 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.1 Gen 1 ports available through the internal USB headers
  3. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 4 x system fan headers
  6. 2 x system fan/water cooling pump headers
  7. 2 x digital LED strip headers
  8. 2 x digital LED strip power select jumpers
  9. 1 x CPU cooler LED strip/RGB LED strip header
  10. 1 x RGB (RGBW) LED strip header
  11. 2 x M.2 Socket 3 connectors
  12. 6 x SATA 6Gb/s connectors
  13. 1 x front panel header
  14. 1 x front panel audio header
  15. 1 x S/PDIF Out header
  16. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  17. 2 x USB 3.1 Gen 1 headers
  18. 2 x USB 2.0/1.1 headers
  19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  20. 1 x Clear CMOS jumper
  21. 1 x temperature sensor header
Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 4 x USB 3.1 Gen 1 ports
  3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  4. 1 x USB 3.1 Gen 2 Type-A port (red)
  5. 1 x HDMI port
  6. 1 x RJ-45 port
  7. 1 x optical S/PDIF Out connector
  8. 5 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    Smart HUD
    System Information Viewer
    USB Blocker
    USB DAC-UP 2
    V-Tuner
  2. Support for Q-Flash
  3. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. cFosSpeed
Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.


What's in the box

  • Gigabyte AMD Socket AM4 X470/rev.1.0 DDR4 2-CH PCI-Ex16 ATX USB3.1 GbE LAN M.2 7.1-CH Audio Aorus Ultra Gaming
  • 1 x I/O Shield
  • 1 x Installation CD
  • 1 x User Guide
  • 1 x User Manual
  • 1 x G Connector
  • 2 x Sata Cable
  • 1 x Screw




Warranty
3 Years Warranty
Local Manufacturer Warranty
