RM3,189.00 RM3,999.00

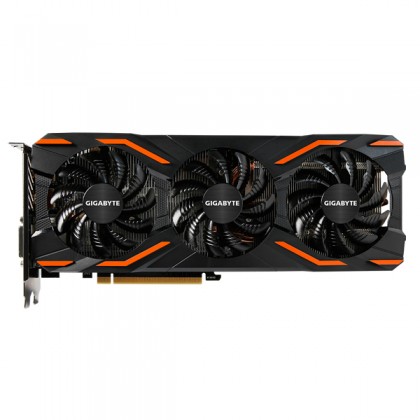

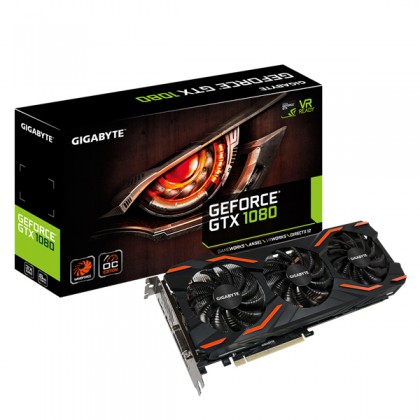

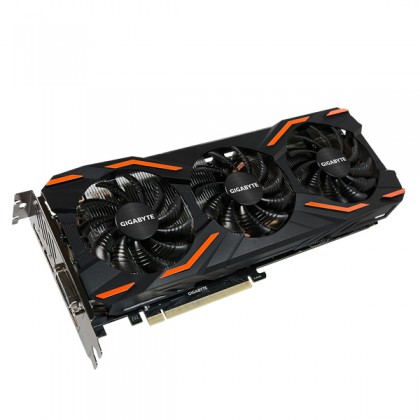

GIGABYTE NVIDIA GeForce GTX 1080 WINDFORCE OC 8GB GDDR5X 256 bit DVI HDMI 8K VR Gaming Mining GRAPHIC CARD GV-N1080WF3OC-8GD
Price RM3,189.00 RM3,999.00
Product SKU VGA-8GB-GV-N1080WF3OC-8GD
Brand GIGABYTE
Size (L x W x H) 41 cm x 8.5 cm x 23.5 cm
Availability Out Of Stock
Description
Highlight
  • Powered by GeForce® GTX 1080
  • Integrated with 8GB GDDR5X 256bit memory
  • WINDFORCE 3X with Blade Fan Design
  • Support up to 8K display @60Hz
  • Boost: 1797 MHz / Base: 1657 MHz in OC mode
  • Boost: 1771 MHz / Base: 1632 MHz in Gaming mode



WINDFORCE 3X Cooling System

The WINDFORCE 3X cooling system features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

WINDFORCE 3X Cooling System-Fans

Unique Blade Fan Design

The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.

3D Active Fan

The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.



WINDFORCE 3X Cooling System-Heat Pipes

Composite heat-pipes

The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.

Heat Pipe Direct Touch

The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.

Outlook

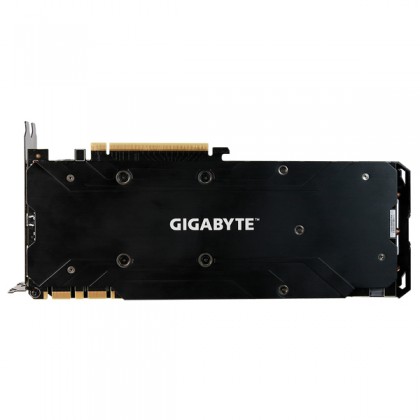

Stylish Metal Back Plate

The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.

Performance

One-click Super overclocking

With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.

Durability



Smart Power LED indicators

Be alert when PCI-E voltage is unstable with the smart power LED indicator.

Ultra Durable Materials

Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

Built for OverClocking with 8+2 power phases

Compared to founders edition, the 8+2 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output.

Intuitive Utility

Xtreme Engine

Adjust clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.



SPECIFICATION



Graphics Processing GeForce® GTX 1080
Core Clock Boost: 1797 MHz / Base: 1657 MHz in OC mode
Boost: 1771 MHz / Base: 1632 MHz in Gaming mode
CUDA® Cores 2560
Process Technology 16 nm
Memory Clock 10010 MHz
Memory Size 8 GB
Memory Type GDDR5X
Memory Bus 256 bit
Card Bus PCI-E 3.0 x 16
Output Dual-link DVI-D *1
HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)
Display Port-1.4 *3 (Max Resolution: 7680x4320 @60 Hz)
Digital max resolution 7680x4320
Multi-view 4
Card size H=41 L=280 W=114 mm
PCB Form ATX
DirectX 12
OpenGL 4.5
Recommended PSU 500W
Power Connectors 8 pin*1
SLI support 2-way SLI HB





Reviews (0)
view all
back
0
0 reviews
What's in the box

1 X Installation CD

1 X User Guide

1 X GIGABYTE NVDIA GeForce GTX 1080 WINDFORCE OC 8G GDDR5X Edition VR DVI HDMI Gaming Mining GRAPHIC CARD GV-N1080WF3OC-8GD
