RM459.00
RM699.00
RM

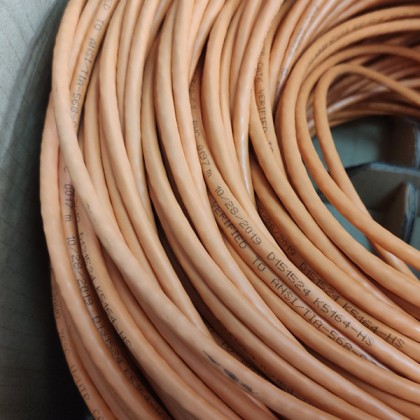

HIKVISION DS-1LN6U-SC0 23AWG UTP Cat6 Solid Copper PoE Network Cable 305M - CCTV Orange
| Price | RM459.00 RM699.00 RM |
| Product SKU | CAB-HIK-DS-ILN6U-SC0 |
| Brand | Hikvision |
| Size (L x W x H) | 43 cm x 26 cm x 43 cm |
| Availability | Out Of Stock |
Description
Highlight
- Full Diameter 305m CAT6 Network Cable
- Conductor Solid-Bare Copper (99.95%)
- 4PR 23AWG
- Core Diameter : 0.55mm
- Excellent Transmission Performance Using Solid Copper
- Quality Verified By Fluke Test
- Guaranteed Long PoE Transmission Distance
- Great PVC Flame Resistance
- Designed For CCTV
- For PoE Network Cabling
Features
- Full Diameter 305m CAT6 Network Cable
- Conductor Solid-Bare Copper (99.95%)
- 4PR 23AWG
- Core Diameter : 0.55mm
- Excellent Transmission Performance Using Solid Copper
- Quality Verified By Fluke Test
- Guaranteed Long PoE Transmission Distance
- Great PVC Flame Resistance
- Designed For CCTV
- For PoE Network Cabling
Specification
| Model | DS-1LN6U-SC0 |
| Category | Cat.6 |

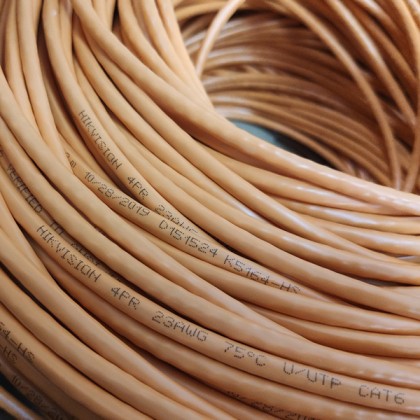

| Sheath Printing | HIKVISION 4PR 23AWG 75°C U/UTP Cat6 Verified To ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS |
| Reference Standard | ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 |
| Fire Resistance | No |
| Conductor | |
| Material | Solid-Bare Copper (99.95%) |
| Diameter | 0.55 ± 0.005 mm, 23 AWG |
| Insulation | |
| Material | HDPE |
| Diameter | 0.98 ± 0.05 mm |
| Sheath | |
| Thickness | 0.50 ± 0.10 mm |
| Diameter | 6.00 ± 0.30 mm |
| Material | PVC |
| Color | Orange |
| Rip-Cord | Yes |
| Separator | Yes |
| Sheath Physical Properties | |
| Before Aging | Tensile Strength ≥ 13.5 Mpa Elongation ≥ 150% |
| Aging Period | 100°C × 24h × 10d |
| After Aging | Tensile Strength ≥ 12.5 Mpa Elongation ≥ 125% |
| Cold Bend | -20 ± 2°C × 4h, 8 × Cable O.D, No Visible Cracks |
| Electrical Characteristics (20°C) | |
| 1.0-250.0 MHz Impedance | 100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz |
| 1.0-250.0 MHz Delay Skew | ≤ 45 ns/100 m |
| DC Resistance | ≤ 9.38 Ω/100 m |
| DC Conductor Resistance Unbalance | ≤ 5.0% |
| Package Dimension | 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″) |
| Weight | 12.3 ± 0.5kg |
| Cable Length | (305 ± 1.5) m |
| Ambient Temperature | -20°C to 75°C (-4°F to 167°F) |
| Operating Voltage | 60 V |
What In The Box
- 1 x HIKVISION DS-1LN6U-SC0 23AWG UTP Cat6 Solid Copper PoE Network Cable 305M - CCTV Orange
Warranty
No Warranty
