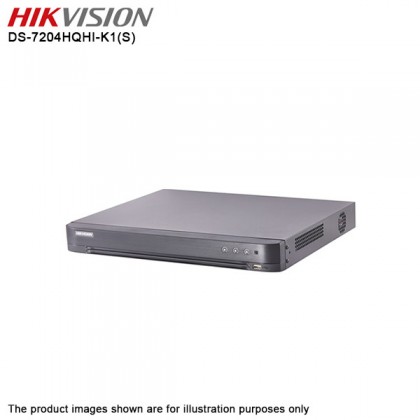

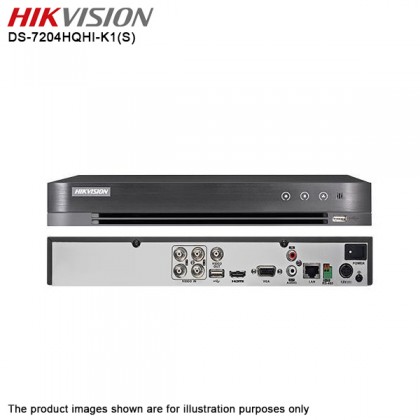

Name: Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR
Brand: Hikvision
SKU: DVR-HIKVISION-DS-7204HQHI-K1(S)
Price: 197.00 MYR
Availability: OutOfStock

Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR

RM197.00 RM399.00 RM

Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR

Price	RM197.00 RM399.00 RM
Product SKU	DVR-HIKVISION-DS-7204HQHI-K1(S)
Brand	Hikvision
Size (L x W x H)	52 cm x 12 cm x 32 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								H.265(K-Series) And H.264 Video Compression
High Defenition Real-Time Recording
Support Turbo HD Video Input
Easy Smart Search For Motion Event During Playback
HDMI Output At Up To 4K Resolution
Live View From Smart Device Or Internet
Two-Way Audio
Multi-Channel Synchronous Playback
 4 Channel Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input and up to 2-ch 4 MP IP cameras input
Up to 3MP resolution recording & supportH.265+/H.265/H.264+/H.264 encoding
Audio over coaxial cable
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
 Simultaneous HDMI/VGA output.
1 SATA interface (up to 6 TB capacity per HDD)
1 RJ45 10M/100M Ethernet network interface
Hik-Connect apps for mobile view & DDNS for easy network management



Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR

Specifications

Product Name	Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR
Video/Audio Input
Audio Input	4-CH
Video Compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Analog Video Input	4-CH
Supported Camera Types	HDTVI Input : 5MP, 4MP, 3MP, 1080p25, 720p60, 720p50, 720p30, 720p25 AHD Input : 5MP, 4MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 4MP, 1080p25, 1080p30, 720p25, 720p30 CVBS Input : PAL / NTSC
IP Video Input	Up To 8-CH
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
CVBS Output	1-CH, BNC (1.0 Vp-p, 75 Ω), Resolution : PAL : 704x576, NTSC : 704x480
HDMI / VGA Output	1920x1080/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	5MP / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate	Main Stream 5MP@12fps / 4MP@15fps / 3MP@18fps 1080p / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)
Sub-Stream	WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
Stream Type	Video / Video & Audio
Audio Output	1-CH RCA (Linear, 1kΩ)
Network management
Network Management	32
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type	1 SATA Interface
Capacity	Up To 10TB Capacity For Each Disk
External Interface
Network Interface	1 RJ45 10M / 100M Adaptive Ethernet Interface
USB Interface	2 USB 2.0 Interfaces
Serial Interface	1; Standard RS-485 Serial Interface, Half-Duplex
Alarm Input	4-CH
Alarm Output	1-CH
General
Power Supply	12 VDC
Consumption	≤ 10W
Working Temperature	-10ºC To +55ºC (+14ºF To +131ºF)
Working Humidity	10% To 90%
Dimensions	315x242x45 MM
Weight	≤ 1.16 KG

What In The Box

1 x Hikvision DS-7204HQHI-K1(S) 4 Channel Audio over Coax Turbo HD 4MP CCTV DVR
1 x Power Adapter
1 x Mouse
1 x User Manual

Warranty
1 Year Warranty
Local Manufacturer Warranty

Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
