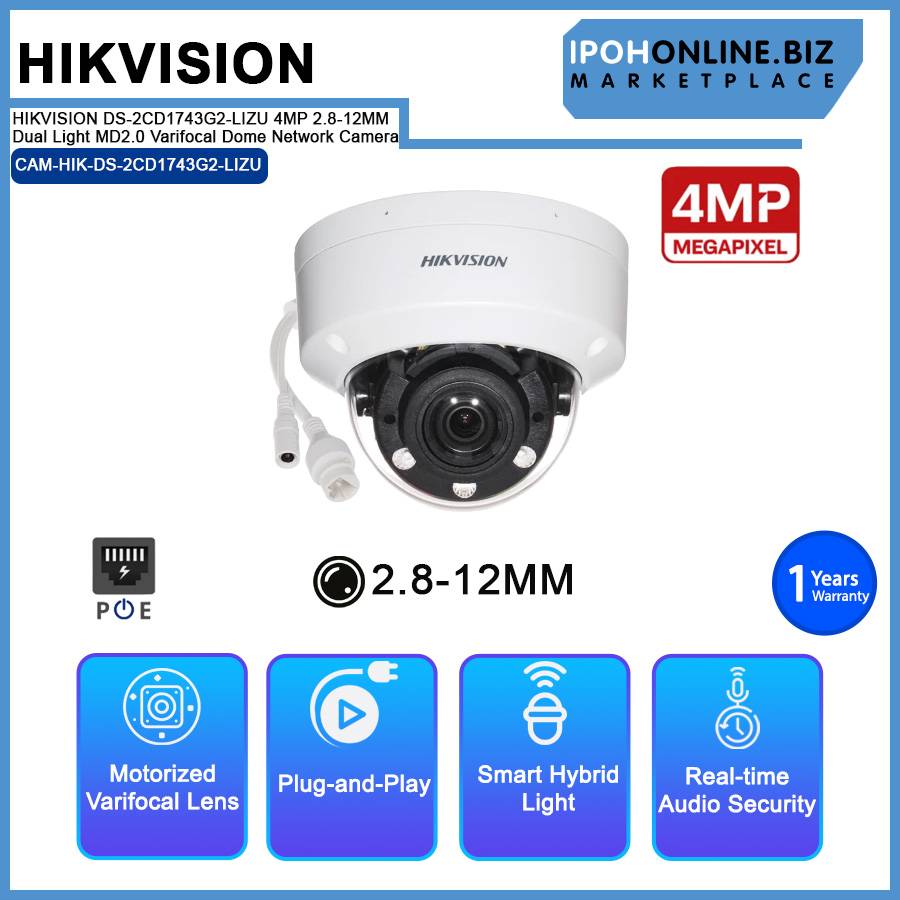

HIKVISION DS-2CD1743G2-LIZU 4MP 2.8-12MM Dual Light MD2.0 Varifocal Dome Network Camera
| Price | RM579.00 RM659.00 RM |
| Product SKU | CAM-HIK-DS-2CD1743G2-LIZU |
| Brand | Hikvision |
| Size (L x W x H) | 20 cm x 20 cm x 20 cm |
| Availability | 2 |
| Quantity |
|
Description
Highlight
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB true WDR technology
- Support on-board storage up to 512 GB (SD card slot)
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67), vandal proof (IK08)
Features
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB true WDR technology
- Support on-board storage up to 512 GB (SD card slot)
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67), vandal proof (IK08)

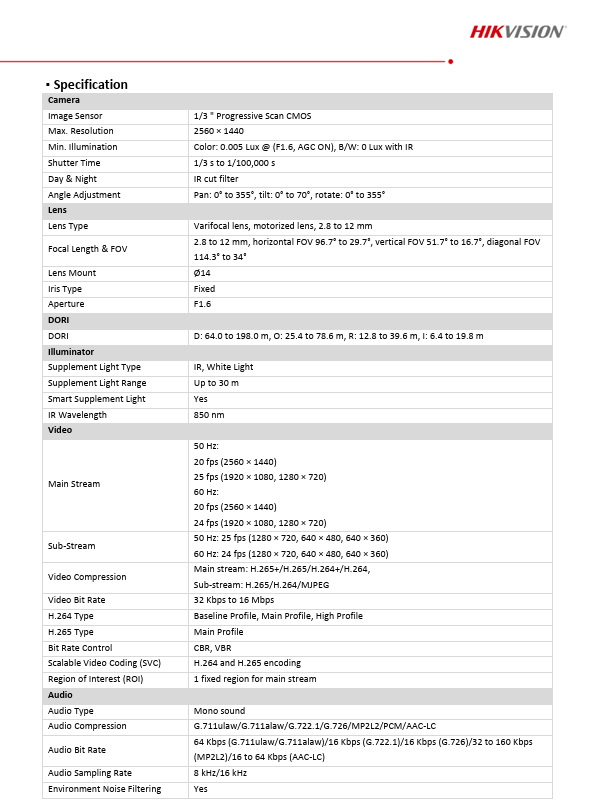

Specification
| Model | DS-2CD1743G2-LIZU |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 (4 MP) |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0–355°, Tilt: 0–70°, Rotate: 0–355° |
| Lens Type | Motorized varifocal 2.8 – 12 mm |
| Focal Length | 2.8 – 12 mm |
| Field of View (FOV) | Horizontal: 96.7° – 29.7° |
| Aperture | F1.6 |
| DORI Range | D: 64 – 198 m, O: 25.4 – 78.6 m, R: 12.8 – 39.6 m, I: 6.4 – 19.8 m |
| Illuminator | Dual Light (IR + White Light) |
| Illumination Range | Up to 30 m |
| Smart Hybrid Light | Yes |
| IR Wavelength | 850 nm |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Main Stream Frame Rate | 2560×1440 @ 20 fps (50/60 Hz) |
| Sub Stream Frame Rate | Up to 25 fps @ 720p |
| Video Bitrate | 32 Kbps – 16 Mbps |
| WDR | 120 dB True WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Audio | Built-in microphone; Mono sound |
| Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Network Protocols | TCP/IP, DHCP, DNS, HTTP, RTSP, NTP, FTP, SMTP, IPv6, QoS, IGMP |
| Simultaneous Users | Up to 32 users |
| ONVIF / API | ONVIF Profiles S/G/T, ISAPI, SDK |
| Storage | microSD up to 512 GB |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Security | Password protection, HTTPS, digest & basic auth |
| Power | 12 VDC ±25% / PoE (802.3af) |
| Power Consumption | Max ~10–12 W |
| Operating Temperature | –30 °C to 60 °C |
| Ingress Protection | IP67 (dust & water resistance) |
| Vandal Resistance | IK08 |
| Dimensions | ~Ø153.3 mm × 111.6 mm |
| Weight | ~1.1 kg |
What's in the box
- 1 x DS-2CD1743G2-LIZU dome network camera
- 1 x Mounting screw pack (screws and wall plugs)
- 1 x Drill template
- 1 x Waterproof cable connector kit
- 1 x Quick start guide / installation manual
Warranty
1 Year Warranty
Local Manufacturer Warranty
