Features

• 24 x 10/100 Mbps PoE ports, 1 x 10/100/1000 Mbps uplink Ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
• IEEE 802.3 af & at high POE power supply
• Maximum 250 m long distance PoE transmission
• VIP port transmission priority
• Safe and reliable using 6 KV high surge protection
• Supports store-and-forward
• Supports MAC address auto learning and auto aging
• Supports smart cache optimization
• Supports desktop / wall mounting.

Specification
General

• Storage Temperature : -40 °C ~ 70 °C
• Operating Temperature : 0 °C ~ 40 °C
• Operating Humidity : 10% - 90% RH non-condensing
• Storage Humidity : 5% - 90% RH non-condensing
• Power Input : 100~240 V AC，50/60 Hz
• Power Consumption : ≤250w

Performance

• Switching Capacity : 8.8 Gbps
• Store-and-forward : Supported
• MAC Address Table : 4 k
• MAC Address Learning : Auto-learning/ Auto-aging

PoE

• Working Mode : Priority, Standard, Isolate, Extend
• PoE Standard : IEEE 802.3af, IEEE802.3at
• PoE Powering Mode : Supports 8-pin power supply
• PoE Port : 1-32
• Maximum Total Output : 225 W
• Maximum Port Output : 30 W

Port

• High-priority Port : Port 1 - 8
• 1000 Mbps SFP : 1 independent
• 10/100/1000 Mbps RJ45 : 1
• 10/100 Mbps RJ45 : 24

Standard

• Network Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z

Network

• Transmission Speed : Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex)
• Transmission Medium : Ethernet: Cat 3 or better UTP/STP Fast Ethernet: Cat 5 or better UTP/STP Gigabit Ethernet: Cat 5 or better UTP/STP 1000 Base-SX: MMF (Multimode optical fiber) 1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)
• Lightning-proof Ranking : 4 kV

POE

• PoE Powering Mode : Supports 8-pin power supply
• PoE Port : 1-32

What In The Box

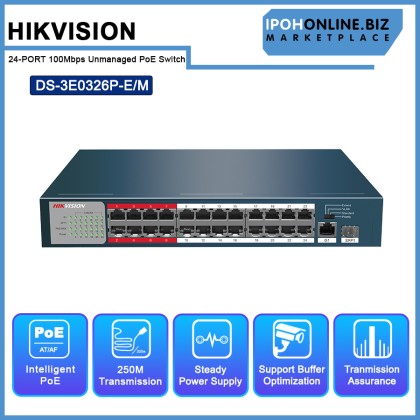

• 1 x Hikvision DS3E0326PEM 24-PORT 100 MBPS Unmanaged PoE Switch
• 1 x Power Cable
• 1 x User Manual

Warranty

3 Years Warranty

Local Manufacturer Warranty
