Name: Hikvision DS-7204HUHI-K1 4 Channel Turbo HD DVR + Hikvision 1MP Turbo HD IR Bullet Camera x 4 + 1TB CCTV Internal Hard Drive + Mean Well Embedded Switch Mode Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 4 Package
Brand: Hikvision
SKU: DVR-HIK-DS-7204HUHI-K1-PROMOTEPACK
Price: 1050.00 MYR

Hikvision DS-7204HUHI-K1 4 Channel Turbo HD DVR + Hikvision 1MP Turbo HD IR Bullet Camera x 4 + 1TB CCTV Internal Hard Drive + Mean Well Embedded Switch Mode Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 4 Package

RM1,050.00 RM1,250.00 RM

Hikvision DS-7204HUHI-K1 4 Channel Turbo HD DVR + Hikvision 1MP Turbo HD IR Bullet Camera x 4 + 1TB CCTV Internal Hard Drive + Mean Well Embedded Switch Mode Power Supply + 18 Meter RG59 BNC CCTV Cable with DC Jack x 4 Package

Price	RM1,050.00 RM1,250.00 RM
Product SKU	DVR-HIK-DS-7204HUHI-K1-PROMOTEPACK
Brand	Hikvision
Size (L x W x H)	95 cm x 50 cm x 35 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								 Hikvision DS-7204HUHI-K1 4 Channel 1080x720p Turbo HD DVR
Hikvision DS-2CE16C0T-IRP 1MP 3.6mm 720p IP66 Turbo HD Outdoor IR Bullet Camera
Toshiba 1TB 5700 RPM SATA 3 3.5" CCTV Surveillance Video Stream Internal Hard Drive Bare Drive
Mean Well 100W 12V 8.5A AC DC Embedded Switch Mode Power Supply LRS-100-12
18 Meter RG59 + DC Jack Black Coaxial CCTV Camera Cable With Connectors



Hikvision DS-7204HUHI-K1 4 Channel 1080x720p Turbo HD DVR

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 Encoding For The Main Stream, And H.265 / H.264 For The Sub-Stream Of Analog Cameras
Self-Adaptive HDTVI / HDCVI / AHD / CVBS Signal Input
Connectable To H.265+ / H.265 / H.264+ / H.264 IP Cameras
8 MP / 5 MP / 4 MP HDTVI Video Input And Live View For DS-7208HUHI-K1, And 5 MP/4 MP For DS-7204HUHI-K1
HDMI Output At Up To 4K (3840×2160) Resolution For DS-7208HUHI-K2
Long Distance Transmission Over UTP And Coaxial Cable
4/8-ch Synchronous Playback

Specifications

Audio Input	4-ch
Video Compression	H.265+ / H.265 / H.264+ / H.264
Analog And HD-TVI Video Input	4-ch, BNC Interface (1.0Vp-p, 75 Ω) Connection
Supported Camera Types	Support HDTVI Input : 5Mp, 4MP, 3MP,1 080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz Support AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS Input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	RCA (2.0 Vp-p, 1 kΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ), (Using The 1st Channel Of Audio Input)
Video / Audio Output
CVBS Output	1-ch,BNC (1.0Vp-p,75Ω), Resolution : PAL : 704x576, NTSC : 704x480
HDMI/VGA Output	1920×1080/60Hz, 1280×1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	5MP / 4MP / 3MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate	Main Stream: 5MP@12fps / 4MP@15fps / 3MP@18fps 1080p / 720p / WD1 / 4CIF / VGA / CIF@25fps(P) / 30fps(N) Sub-Stream: WD1 / 4CIF / CIF@25fps(P) / 30fps(N)
Video Bit Rate	32 Kbps-10 Mbps
Stream Type	Video / Video & Audio
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (Using The Audio Input)
Audio Output	1-ch RCA (Linear, 1kΩ)
Audio Bit Rate	64 kbps
Dual Stream	Support
Synchronous Playback	4-ch
Network Management
Remote Connections	32
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

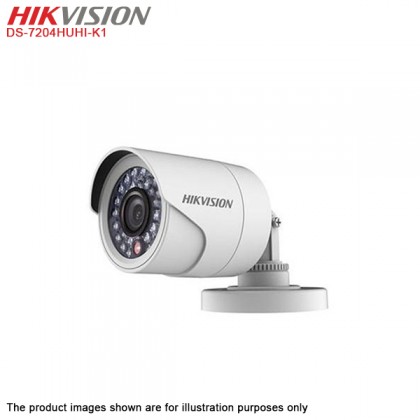

Hikvision DS-2CE16C0T-IRP 1MP 3.6mm 720p IP66 Turbo HD Outdoor IR Bullet Camera

1MP High-Performance CMOS
Analog HD Output, Up To 720P Resolution
True Day/Night
DNR, Smart IR
Up To 20m IR Distance
IP66 Weatherproof

Specifications

Image Sensor	1MP CMOS Image Sensor
Signal System	PAL / NTSC
Effective Pixels	1296(H) x 732(V)
Shutter Time	1/25(1/30) s To 1/50,000 s
Lens Mount	M12
Adjustment Range	Pan: 0 - 360° Tilt: 0 - 75° Rotation: 0 - 360°
Day & Night	IR Cut Filter With Auto Switch
Video Frame Rate	720p@25fps / 720@30fps
HD Video Output	1 Analog HD Output
Synchronization	Internal Synchronization
S/N Ratio	More Than 62 dB
General
Operating Conditions	-40°C - 60°C (-40°F - 140°F) Humidity 90% Or Less (Non-Condensing)
Power Supply	12 VDC±15%
Weather Proof	IP66
IR Range	Up To 20m
Dimension	Φ70 × 149.5mm (Φ2.76” × 5.89”)
Weight	300 g

Toshiba 1TB CCTV Internal Hard Drive

1TB Storage Capacity
3.5-Inch, Low Profile Form Factor
SATA Up To 6.0 Gbit/s
Advanced Format (AF) 512e Sector Length
Low Power
Quiet Acoustics
Optimized Video Streaming
Applications: Video Editing Systems Set-Top-Box (STB) Digital Video Recorders (DVR) Network Video Recorders (NVR)

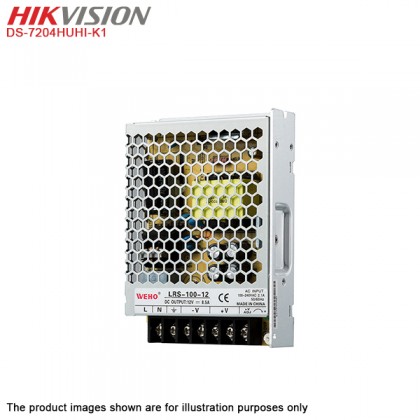

Mean Well 100W 12V 8.5A AC DC Embedded Switch Mode Power Supply LRS-100-12

Universal AC Input / Full Range
Withstand 300VAC Surge Input For 5 Second
Protections : Short Circuit / Overload / Over Voltage
Cooling By Free Air Convection
LED Indicator For Power On

Specifications

Output
DC Voltage	12V
Rated Current	8.5A
Current Range	0~8.5A
Rated Power	102W
Ripple & Noise (Max.) Note.2	120mVp-p
Voltage ADJ.Range	10.2 ~ 13.8V
Voltage Tolerance Note.3	±1.0%
Line Regulation Note.4	±0.5%
Load Regulation Note.5	±0.5%
Setup, Rise Time	500ms, 30ms/230VAC 500ms,30ms/115VAC At Full Load
Hold Up Time (Typ)	55ms/230VAC 10ms/115VAC At Full Load
Input
Voltage Range	85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC Surge For 5sec. Without Damage)
Frequency Range	47 ~ 63Hz
Efficiency (Typ)	88%
AC Current (Typ)	1.9A/115VAC 1.2A/230VAC
Inrush Current (Typ)	COLD START 50A/230VAC
Leakage Current	<0.75mA / 240VAC

18 Meter RG59 + DC Jack Black Coaxial CCTV Camera Cable with connectors

Support HDTVI, HDCVI, AHD And Analog Cameras
Plug And Play, Ready To Use All-In-One Siamese Cables
Transmit Video Signals And Supply DC Power For Security Camera
Weatherproof For Outdoor And Indoor Use

What In The Box

1 x Hikvision DS-7204HUHI-K1 4 Channel Turbo HD DVR
4 x Hikvision DS-2CE16C0T-IRP 1MP Turbo HD IR Bullet Camera
1 x Toshiba 1TB CCTV Internal Hard Drive
1 x Mean Well Embedded Switch Mode Power Supply LRS-100-12
4 x 18 Meter RG59 CCTV Cable with DC Jack

Warranty
1 Years Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]

Hikvision & EZVIZ CCTV Service Centre
Add : No. 99-19 Hala Perusahaan Menglembu 13,Industri Menglembu Jaya, 31450 Menglembu.
Tel : 60-5-2822 919
Fax : 60-5-2811 909
H/Phone : 012-5088891 / 016-5534968
