| Price | RM239.00 RM295.00 RM |
| Product SKU | MOBO-WINNFOX-H81 |
| Brand | Intel |
| Size (L x W x H) | 32 cm x 25 cm x 10 cm |
| Availability | 1 |
| Quantity |
|
Description
Highlight
- Support LGA1150 Socket i3/i5/i7 Series CPU
- Intel H81/B85 Chipset
- Support Dual-Channel DDRIII 1066/1333/1600MHz Memory
- Micro ATX
- WinXP, WinVista, Win7, Win10, Linux Operating System
Features
- Support SATA Interface : The Latest Generation Of Serial ATA Storage Interface, Can Achieve Higher Burst Transfer Rate, Support More Characteristics, More Convenient To Use And More Potential For Development
- Dual Channel Memory : Support Dual Channel Memory, To Give You Best Choice For High Bandwidth
- PCI Express Architecture : PCI EXpress Is The Latest I/O Interconnect Technology That Will Replace The Existing PCI. With A Bus Bandwidth 4 Times Higher Than That Of AGP 8X Interface, PCI Express x16 Bus Performs Much Better Than AGP 8X In Applications Such As 3D Gaming
- High Speed USB Ports : Provide Data Transfer Rates Of High Speed, Hot Swappable, Backward Compatible With Standard USB 1.1 Easy To Connect Various USB Interface Device
- HD Audio Output : Support DVD Sound Hardware, Offer The Super High Sample Rateas 192kHz And The Sound Quality As 100Db. Can Enjoy The Home Theater Consumer Electronics Device-Level Effects
- 100/10M LAN : Provide More Stable And Faster Network Transmission Environment, The Transmission Speed Of Up To 100Mbps To Better Meet The Application Requirement Of High Data Throughput
Specification
| CPU | Support LGA1150 Socket i3/i5/i7 Series CPU |
| Chipset | Intel H81/B85 Chipset |
| Memory | 2*240-Pin DDRIII Slots Memory Up To 16GB Support Dual-Channel DDRIII 1066/1333/1600MHz Memory |
| BIOS | AMI BIOS |

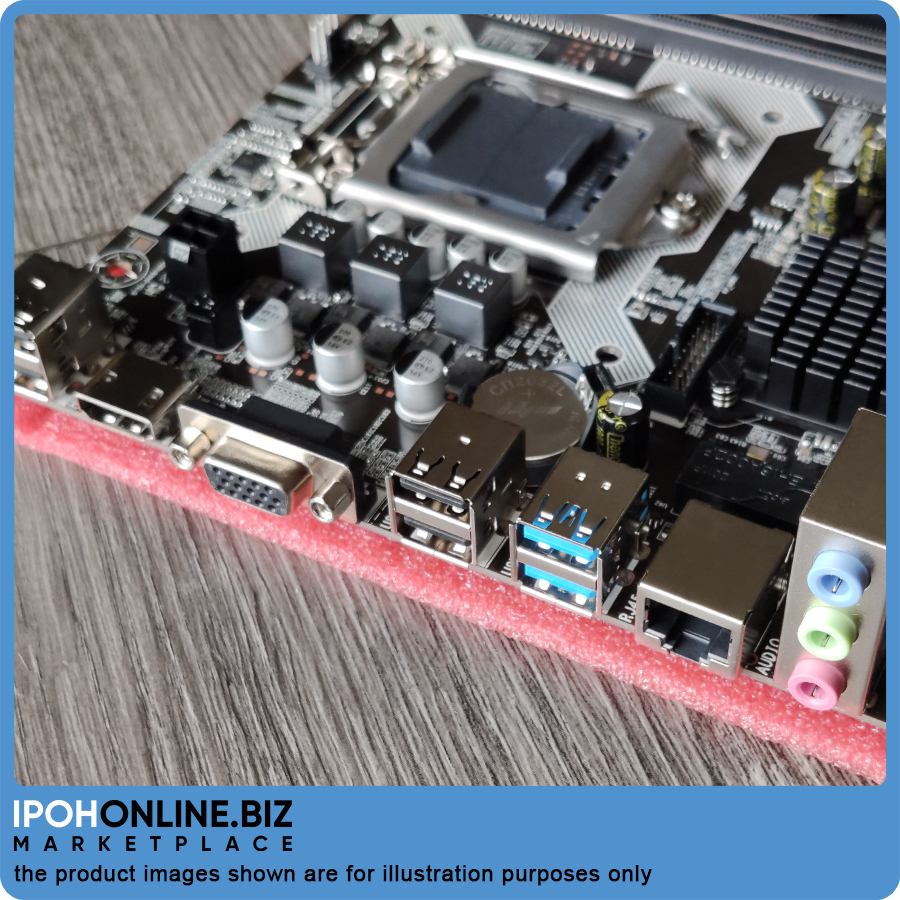

| I/O Interface | 1 x VGA Port 1 x HDMI Port 2 x USB 3.0 Port 4 x USB 2.0, Compatible With USB 1.1 1 x Audio Port (Line In / Line Out / MIC In) 1 x RJ45 Port |
| Onboard Interface | 1 x 24-Pin ATX Power Connector 1 x 4-Pin ATX 12V Power Connector 1 x USB Connectors, Can Support 2*USB 2.0 1 x USB Connectors, Can Support 2*USB 3.0 1 x F_Audio Connector 1 x F_Panel Connector 1 x Speaker Connector 2 x Fan Connector 4 x Serial ATA Connection Ports |
| Integrated Sound | With 6-Channel HD Audio Codec Onboard Provides Front Audio Interface; Provides Front Stereo Mic Interface |
| Integrated LAN | With 10/100/1000Mbps LAN Onboard (Optional) |
| Expansion Slot | 1 x PCI Express x 16 Slot 1 x PCI Express x 1 Slot |
| Dimension | Micro ATX (17*19cm) |
| Compatible | WinXP, WinVista, Win7, Win10, Linux Operating System |
What In The Box
- 1 x Winnfox Intel H81 LGA 1150 DDR3 VGA HDMI Micro ATX Motherboard
- 1 x I/O Panel
- 1 x Sata Cable
- 1 x User Manual
- 1 x CD Driver
Warranty
6 Month Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
