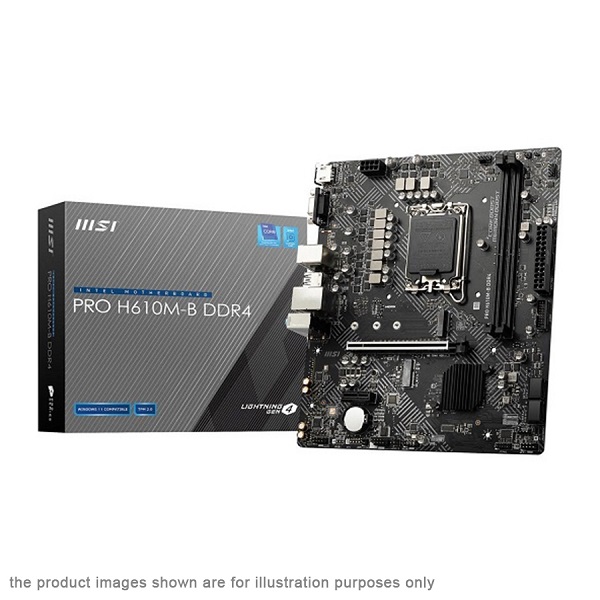

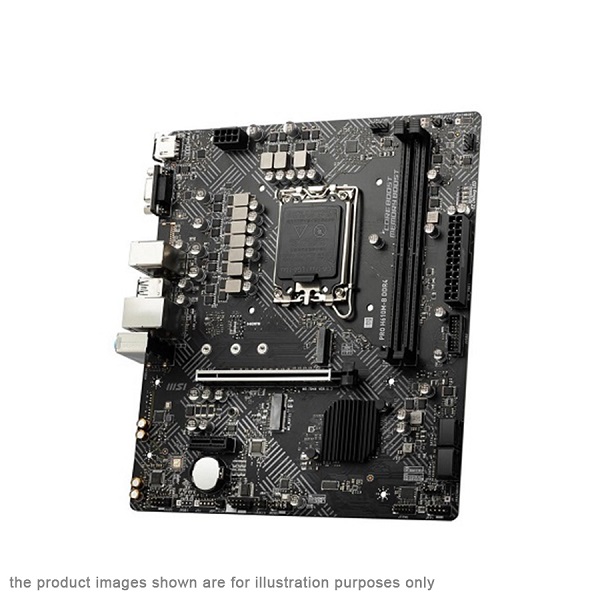

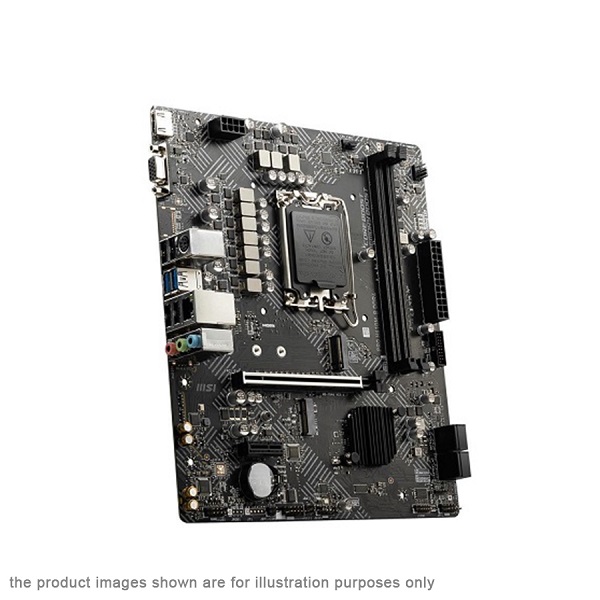

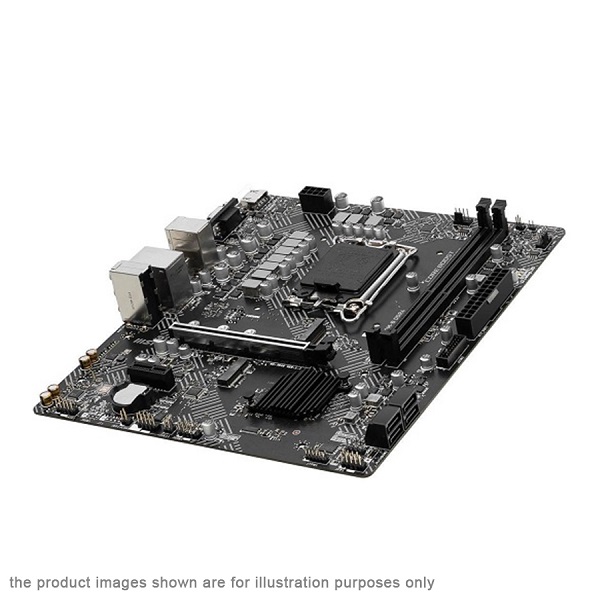

MSI PRO H610M-B DDR4 H610 LGA1700 M-ATX Motherboard

RM375.00 RM405.00 RM

MSI PRO H610M-B DDR4 H610 LGA1700 M-ATX Motherboard

Price	RM375.00 RM405.00 RM
Product SKU	MOBO-MSI-PRO-H610M-B-DDR4
Brand	MSI
Size (L x W x H)	30 cm x 29 cm x 9 cm
Availability	Pre-Order

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.



Specifications

Model Name	PRO H610M-B DDR4
CPU Support	Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
CPU Socket	LGA 1700
Chipset	Intel® H610 Chipset
Graphics Interface	1x PCIe 4.0 x16 slot
Display Interface	Support 4K@60Hz as specified in HDMI 2.1 VGA – Requires Processor Graphics
Memory Support	t 2 DIMMs, Dual Channel DDR4-3200MHz (MAX)
Expansion Slots	1x PCIe 3.0 x1 slot 1x M.2 slot with E-key for PCIe WiFi module only
Storage	1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gb/s ports
USB ports	4x USB 3.2 Gen 1 5Gbps(4 Type-A) 6x USB 2.0
LAN	Intel® I219-V 1G LAN
Audio	8-Channel(7.1) HD Audio with Audio Boost
Processor	Supports 12th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors Processor socket LGA1700
Power Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector
Fan Connectors	1x 4-pin CPU fan connector 1x 4-pin System fan connector
System Connectors	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector
Jumpers	1x Clear CMOS jumper
LED Features	4x EZ Debug LED

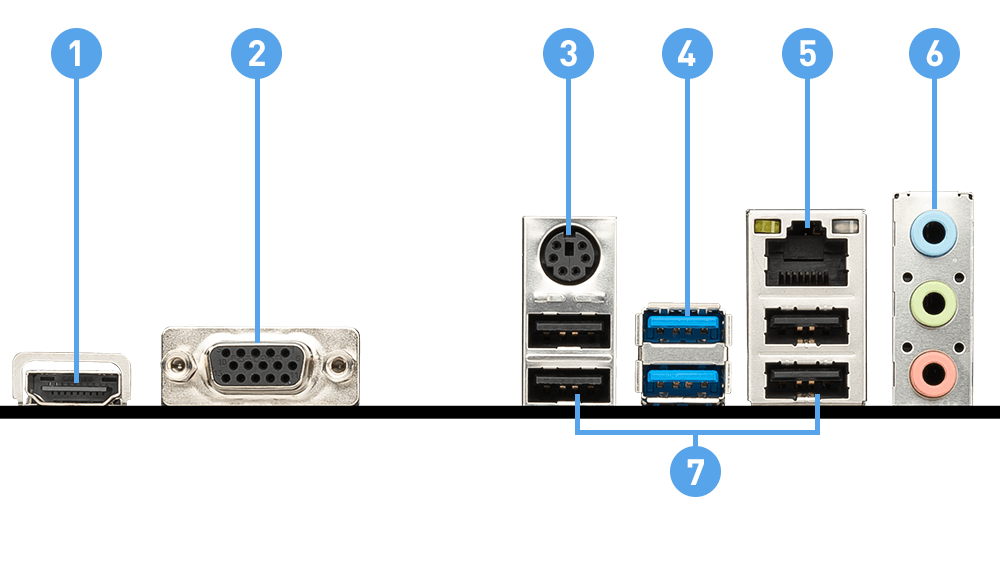

Back Panel Ports	1. HDMI 2. VGA 3. Keyboard/Mouse 4. USB 3.2 Gen 1 5Gbps Type-A 5. LAN port 6. Audio connector 7. USB 2.0
Dimensions	M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

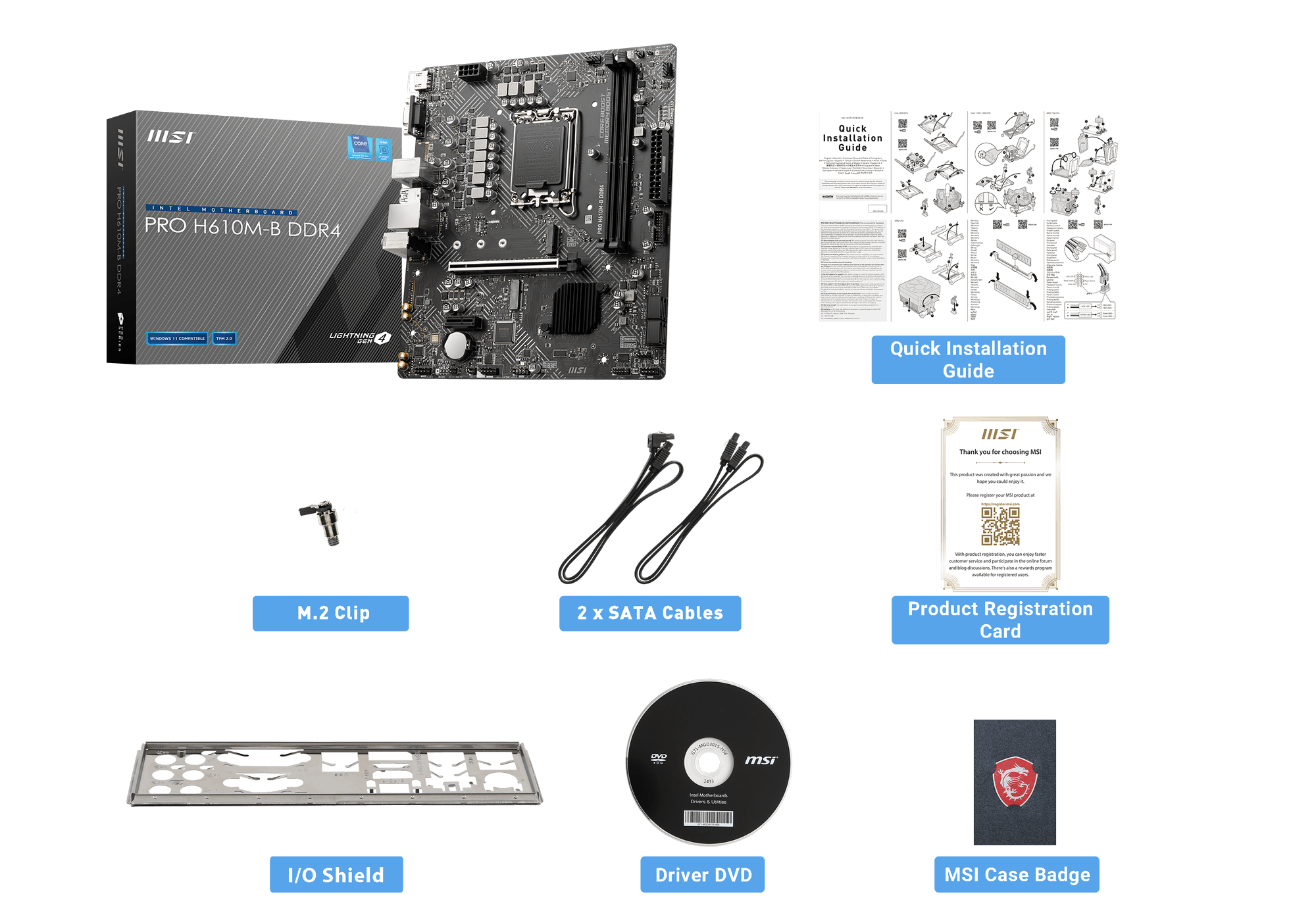

Box Content
