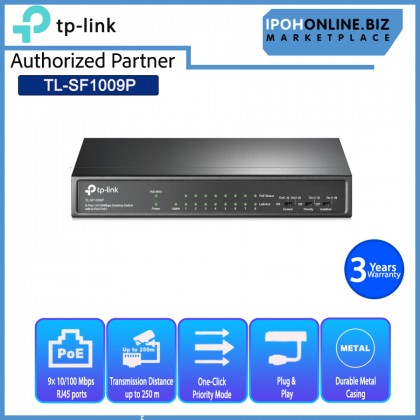

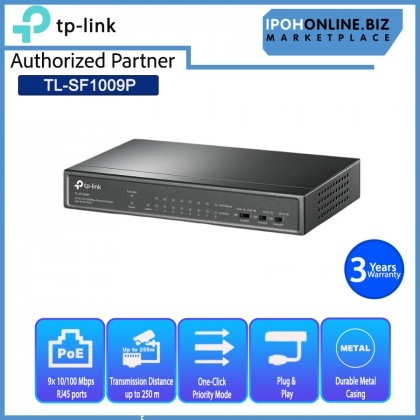

TP-Link TL-SF1009P 9 Port 10/100Mbps Desktop Switch with 8 Port PoE+ with Transmission for Surveillance up to 250m
| Price | RM209.00 RM388.00 RM |
| Product SKU | SWI-TL-SF1009P |
| Brand | TP-Link |
| Size (L x W x H) | 35 cm x 28 cm x 12 cm |
| Availability | 7 |
| Quantity |
|
Description
Highlight
- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port

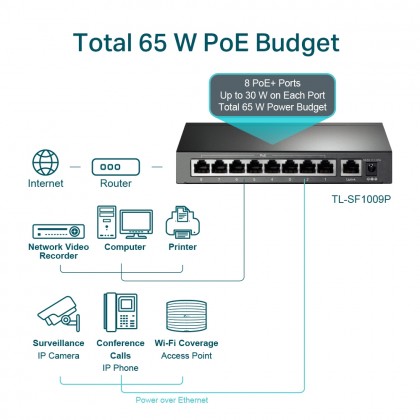

- Supports PoE Power up to 65 W for 8 PoE ports*

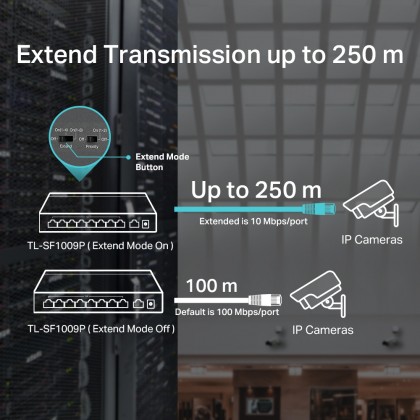

- Up to 250 m data and power transmitting range under Extend Mode**

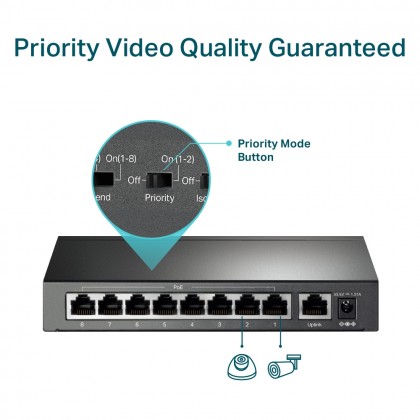

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance

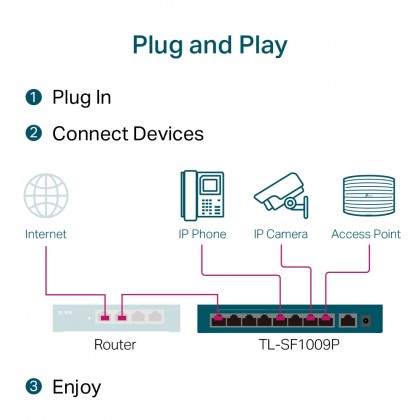

- Plug and play with no configuration required
Specification
| Hardware Features | ||
| Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
|
| Fan Quantity | Fanless | |
| Physical Security Lock | Yes | |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 1.3A) | |
| Packet Forwarding Rate | 1.3392 Mpps | |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W |
|
| Mac Address Table | 2K | |
| Jumbo Frame | 2 KB | |
| Switching Capacity | 1.8 Gbps | |
| Dimensions | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
|
| Max Power Consumption | • 3.6 (no PD connected) • 77.1 (with 65 W PD connected) |
|
| Max Heat Dissipation | • 12.3 BTU/h (no PD connected) • 262.8 BTU/h (with 65 W PD connected) |
|
| Software Features | ||
| Transmission Method | Store-And-Forward | |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
|
| Others | ||
| Certification | FCC, CE, RoHS | |
| Package Contents | • TL-SF1009P • Power Adapter • Installation Guide |
|
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
|
What In The Box
- 1 x TP-Link TL-SF1009P 9 Port 10/100Mbps Desktop Switch with 8 Port PoE+ with Transmission for Surveillance up to 250m
- 1 x Power Adapter
- 1 x Rubber Feet
- 1 x Installation Guide
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
