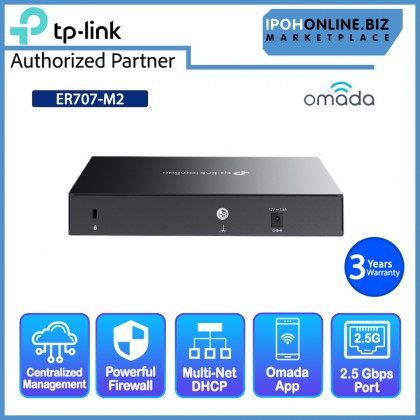

Name: TP-Link ER707-M2 Omada Multi-Gigabit 2.5G High-Performance Ultra-Secure Business VPN Router
Brand: TP-Link
SKU: ROU-TP-LINK-ER707-M2
Price: 1299.00 MYR

TP-Link ER707-M2 Omada Multi-Gigabit 2.5G High-Performance Ultra-Secure Business VPN Router

RM1,299.00 RM1,999.00 RM

TP-Link ER707-M2 Omada Multi-Gigabit 2.5G High-Performance Ultra-Secure Business VPN Router

Price	RM1,299.00 RM1,999.00 RM
Product SKU	ROU-TP-LINK-ER707-M2
Brand	TP-Link
Size (L x W x H)	38 cm x 29 cm x 13 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Two 2.5G Ports - 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
Up to 6 WAN Ports - 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN - Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
Integrated into Omada SDN - Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring, and more.
Centralized Management - Cloud access and Omada app provide the utmost in management convenience.
Extensive Security Features - Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.



Features

Two 2.5G Ports - 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
Up to 6 WAN Ports - 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN - Enterprise-standard SSL/IPSec/GER^§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
Integrated into Omada SDN - Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, Intelligent Monitoring, and more.
Centralized Management - Cloud access and Omada app provide the utmost in management convenience.
Extensive Security Features - Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.

Specification

Hardware Features
Interface	1× 2.5G RJ45 WAN Port 1× 2.5G RJ45 WAN/LAN Port 1× Gigabit SFP WAN/LAN Port 4× Gigabit RJ45 WAN/LAN Ports 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Button	Reset Button
Power Supply	12V/1.5A Adapter
Flash	128MB NAND
DRAM	1 GB DDR4
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Mounting	Desktop/Wall Mounting
Max Power Consumption	14.2 W (with USB2.0 connected) 7.1 W (without USB2.0 connected)
Performance
Concurrent Session	500,000
New Sessions /Second	4,200
NAT (Static IP)	2364.45 Mbps / 2343.28 Mbps
NAT(DHCP)	2364.24 Mbps / 2326.21 Mbps
NAT(PPPoE)	2350.93 Mbps / 2125.83 Mbps
NAT (L2TP)	1249.04 Mbps / 831.12 Mbps
NAT (PPTP)	1169.23 Mbps / 1175.52 Mbps
IPsec VPN Throughput	ESP-MD5-AES256: 537.12 Mbps ESP-SHA1-AES256: 754.65 Mbps
L2TP VPN Throughput	Unencrypted: 1442.65 Mbps Encrypted: 346.43 Mbps
SSL VPN Throughput	142.99 Mbps
66 Byte Packet forwarding rate	1832.69 Mbps / 1741.84 Mbps
1,518 Byte Packet forwarding rate	2461.18 Mbps / 2457.32 Mbps
Basic Functions
WAN Connection Type	IPv4_Static IP IPv4_Dynamic IP IPv4_PPPOE IPv4_L2TP IPv4_PPTP IPv6_PPP IPv6_DHCPv6 IPv6_Static IP IPv6_6in4 IPv6_Pass-Through Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address
DHCP	DHCP Server/Client DHCP Address Reservation Multi-IP Interfaces* Multi-Net DHCP*
IPv6	WAN Connection
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy
Advanced Functions
Advanced Routing	Static Routing Policy Routing
Bandwidth Control	IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth
Load Balance	Intelligent Load Balance Application Optimized Routing Link Backup (Timing^§, Failover) Online Detection
NAT	One-to-One NAT^§ Multi-Net NAT Virtual Server Port Triggering^§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP
Security	Attack Defense: TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN Filtering Web Group Filtering URL Filtering Web Security ARP Inspection: Sending GARP Packets ARP Scanning IP-MAC Binding Access Control Source/Destination IP Based Access Control
Session Limit	IP-based Session Limit
VPN
IPsec VPN	100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2 MD5, SHA1 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
PPTP VPN	PPTP VPN Server PPTP VPN Clients (12) 60 Tunnels (Shared with L2TP) PPTP with MPPE Encryption
L2TP VPN	L2TP VPN Server L2TP VPN Clients (12) 60 Tunnels (Shared with PPTP) L2TP over IPSec
OpenVPN	OpenVPN Server OpenVPN Clients (6) 66 OpenVPN Tunnels*
Security
Filtering	WEB Group Filtering^§ URL Filtering Web Security^§
ARP Inspection	Sending GARP Packets^§ ARP Scanning^§ IP-MAC Binding^§
Attack Defense	TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN
Access Control	Source/Destination IP Based Access Control
Authentication
Web Authentication	No Authentication Simple Password* Hotspot (Local User/Voucher* /SMS/Radius) External Radius Sever External Portal Sever* Facebook*
Management
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance	Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3* Diagnostics (Ping & Traceroute)^§ NTP Synchronize^§ Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration ZTP (Zero-Touch Provisioning)
Others
Certification	CE, FCC, RoHS
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% non-condensing
