| Price | RM318.00 RM489.00 RM |
| Product SKU | CON-ADV-102-8M0-5A10 |
| Brand | ADV |
| Size (L x W x H) | 25 cm x 19 cm x 9 cm |
| Availability | 2 |
| Quantity |
|

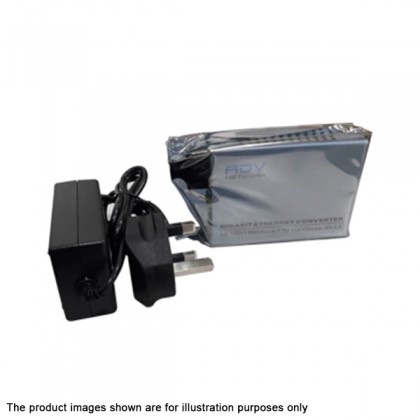

ADV 102-8M0-5A10 Gigabit Multi-Mode Dual Fiber Media Converter - SC
- Media converter designed to convert 10/100/1000BASE-LX fiber to 10/100/1000Base-T copper media or vice versa.
- Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
- Multimode Fiber: the max distance up to 224m/ 550m Singlemode Fiber: the max distance up to 80km
- Supporting the max 1536 byte Ethernet packet
- Supporting flow control
- Adopting internal power supply
ADV 102-8M0-5A10 Gigabit Multi-Mode Dual Fiber Media Converter - SC
ADV102 Series Gigabit Fiber Media Converter can convert Optical－Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link. The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters. HT Series Gigabit Converters could be used alone, and can also inserted to 14 slots rack chassis which is suitable for the use of Network Centre.
Specifications
| Operating standards | EEE802.3z/AB, 1000Base-T and 1000Base-SX/LX |
| MAC address table | 4K |
| Data Buffer | 256K |
| Connector | UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps |
| Cable | |
| UTP cable | Cat 5e or Cat 6 (the max distance up to 100m) |
| Fiber (multimode) | 50/125, 62.5/125μm (the max distance up to 550/224m) |
| Fiber (singlemode) | 8.3/125, 8.7/125,9/125μm (the max distance up to 100km) |
| Flow control | |
| Full Duplex | EEE802.3x |
| Half Duplex | Back pressure |
| Power | AC 110-220V to DC 5V, or DC 48V to DC 5V |
| Ambient temperature | 0 ～ +50°C |
| Storage temperature | -20 ～ +70°C |
| Humidity | 5% ～ 90% |
| Dimensions | 26 (high) x 70 (width) x 95 (length) mm |
| Weight | 0.45kgs |
What In The Box
- 1 x ADV 102-8M0-5A10 Gigabit Multi-Mode Dual Fiber Media Converter - SC
- 1 x Power Adapter
- 1 x User Manual
- 1 x Qualified Certification
Warranty
1 Years Warranty
Local Manufacturer Warranty
- 1 x ADV 102-8M0-5A10 Gigabit Multi-Mode Dual Fiber Media Converter - SC
- 1 x Power Adapter
- 1 x User Manual
- 1 x Qualified Certification
