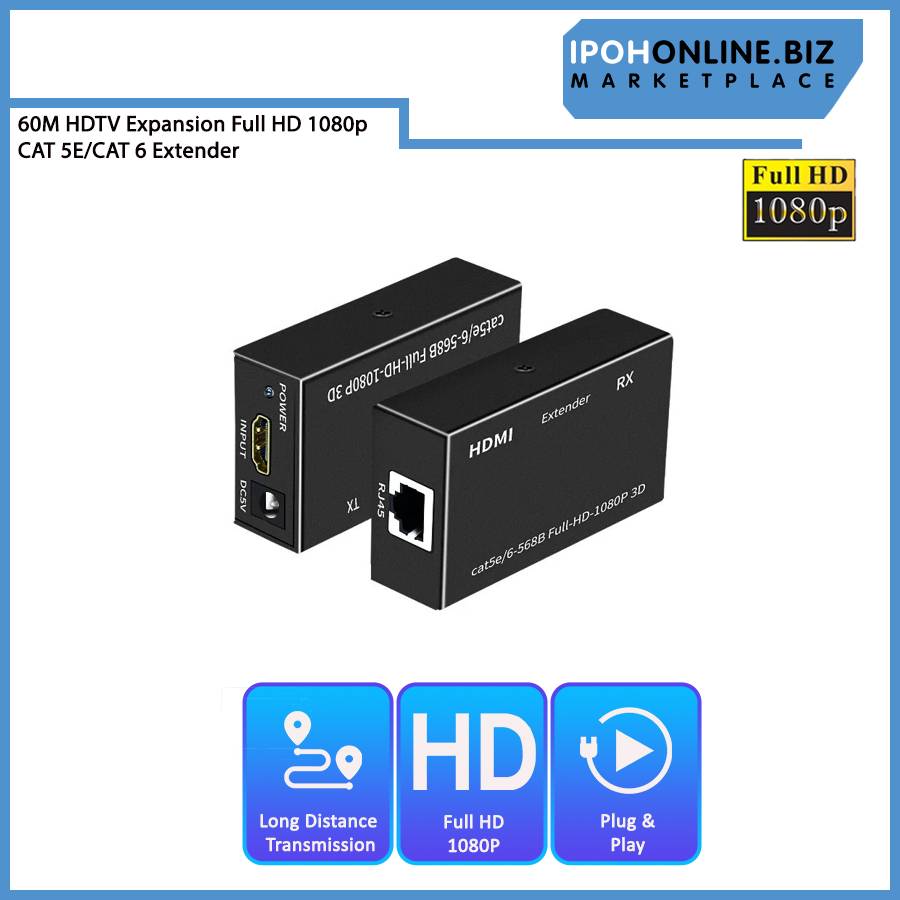

60M CAT5E CAT6 HDMI Extender Repeater LAN CAT 5E/CAT 6 Cable 3D Video Expansion Full HD1080P UK PLUG

RM100.00 RM200.00 RM

60M CAT5E CAT6 HDMI Extender Repeater LAN CAT 5E/CAT 6 Cable 3D Video Expansion Full HD1080P UK PLUG

Price	RM100.00 RM200.00 RM
Product SKU	EXT-RPT-HDMI-60M
Brand	OEM
Size (L x W x H)	26 cm x 20 cm x 11 cm
Availability

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Support HDTV 1.4a
Support 3D
Support highest video resolution 1080p/60Hz
Support 1.65Gbps data rate and tmds clock up to 165Mhz
Support 8/10/12 bit deep color
Support AWG26 HDTV standard cable, input up to 15 metres, output up to 20 metres

	- Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDTV cable, it can extend the distance up to 60 metres between TX and RX

	- No loss of quality

	- Install in minutes

	- Need DC5V/1A power supply



Specifications

Length of Cat-6/Cat-5E Cable between Rx and TX	Up to 60 meters
HDTV Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDTV Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	165Mhz
Max baud rate	1.65Gbps
Input video signal	0.5~1.5Volts p-p
Output DDC Signal	5Volts p-p (TT1L)
Input HDTV cable distance	<15m AWG26 HDTV standard cable
Output HDTV cable distance	<20m AWG26 HDTV standard cable
TX Max working current	510mA
RX Max working current	100mA
Power Adapter format	Input: AC (50HZ, 60HZ) 100V-240V
Operating Temperature range	(-15 to +55°C)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (LxWxH)	81x43x22 (mm)
TX Weight	100g
RX Weight	120g
