Feature of Product

VGA analog video + analog audio signal input; standard HDMI digital signal output.
Support VGA video input: VGA, XGA, SVGA, SXGA, UGA.
Convert analog signal (VGA) to digital signal (HDMI). The audio is coupled with the VGA video signal, and then both audio and video are converted to HDMI format.

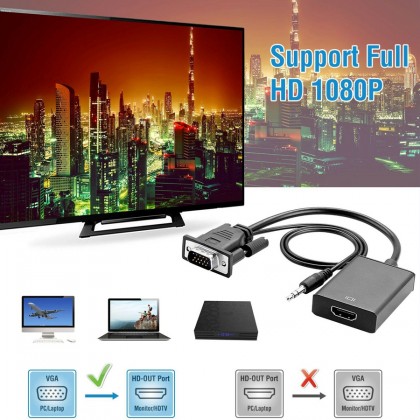

HDMI output: support up to 1080P / 60Hz (output and input format synchronization, frequency synchronization).

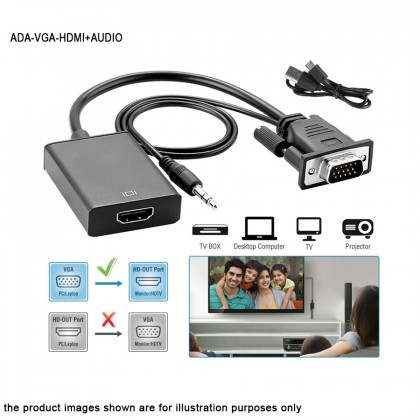

It is suitable for the input of VGA signal resources such as desktop computers, notebook computers, DVDs, set-top boxes, and players.
Easy to install, plug and play without driver.
This product is equipped with a chip and requires an external power supply. Operating current: 170mA, and a universal USB cable is used to supply power for normal operation.

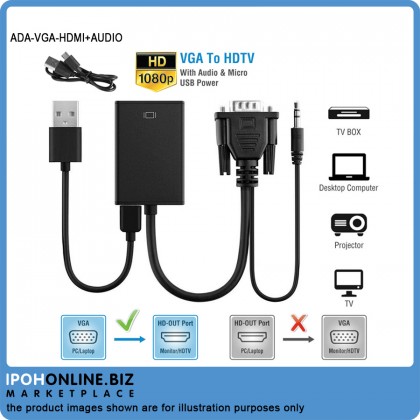

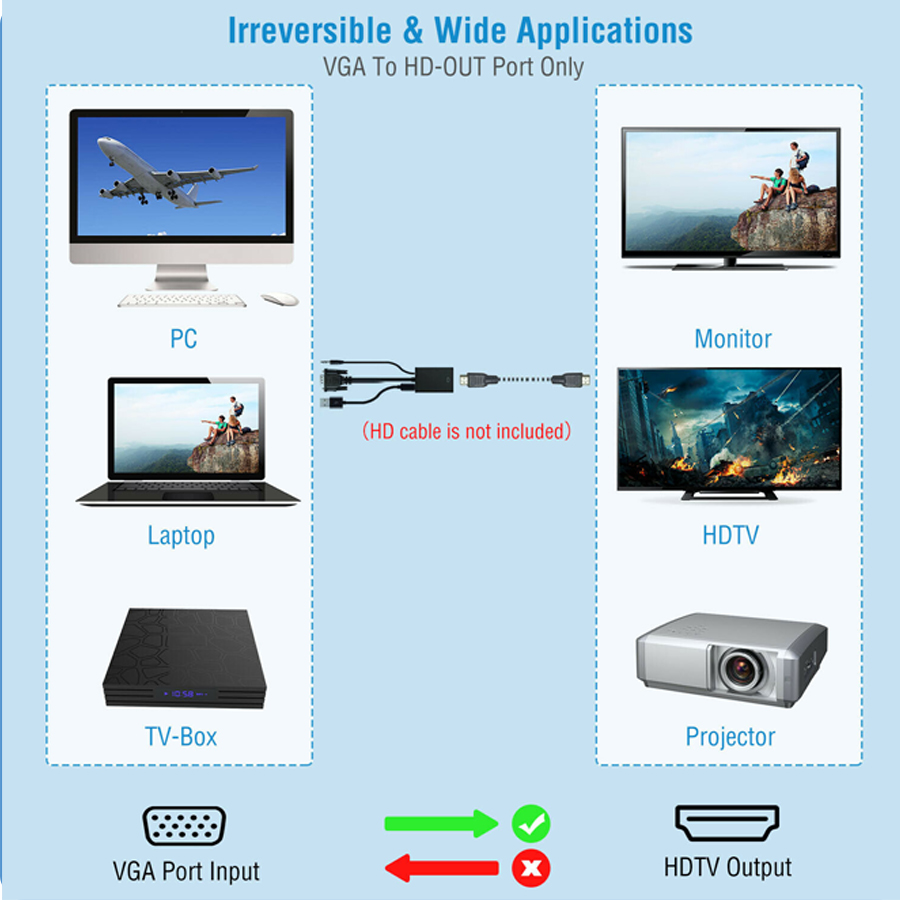

Important note: The converter is not bidirectional. It only converts from VGA to HDMI. This converter cannot be used between a desktop computer with VGA and a notebook computer with HDMI, because they are output signals, so they will not be displayed!

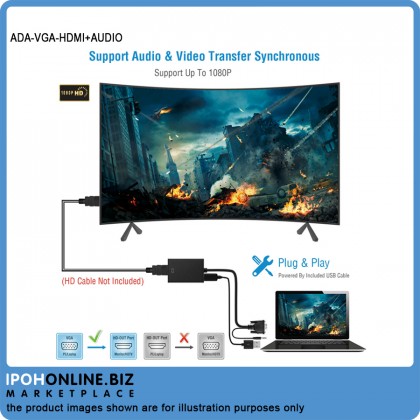

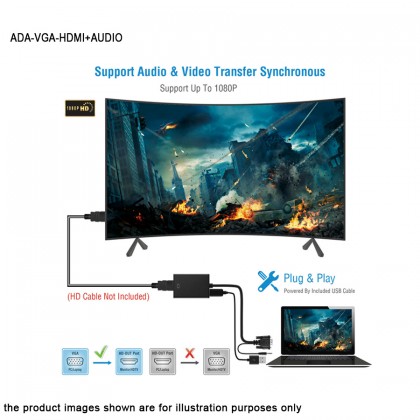

How to Use

1. Plug the VGA interface into a computer or other device with VGA output. Please check the VGA signal output.
2. Insert the USB cable connector into the USB port to provide power.
3. Insert the 3.5mm audio connector into the audio port.
4. Insert the other connectors into the HDMI cable, and then connect the HDMI cable to the monitor and projector device through the HDMI interface.
5. Play videos, PPT and documents, and the image will be displayed on the screen of another display device.

Specification

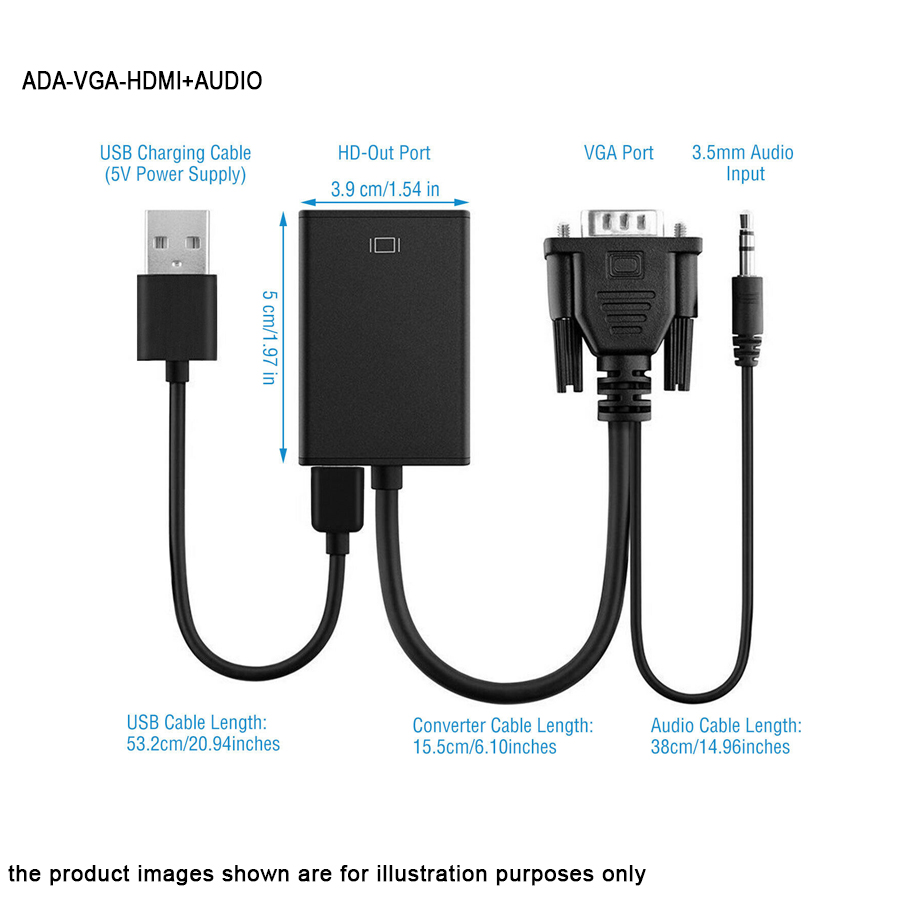

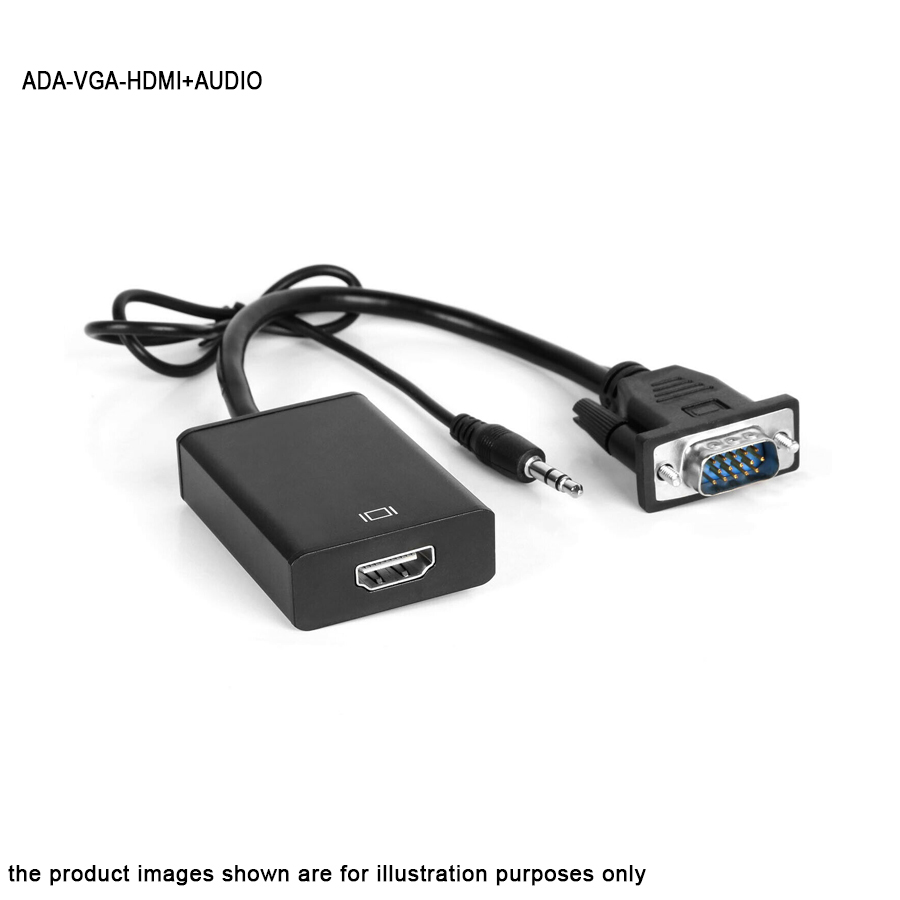

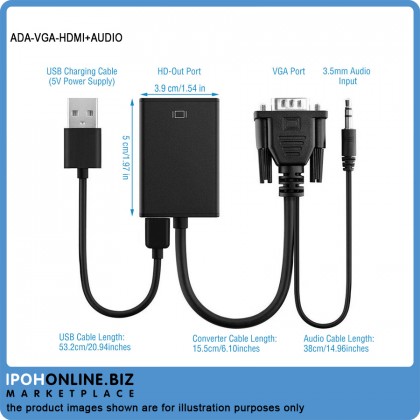

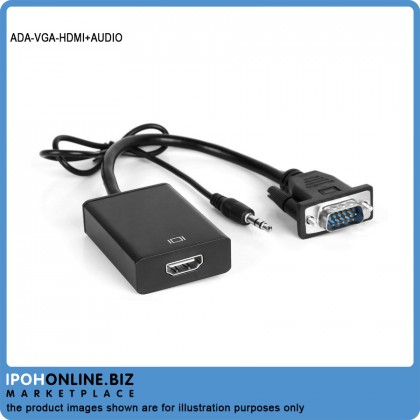

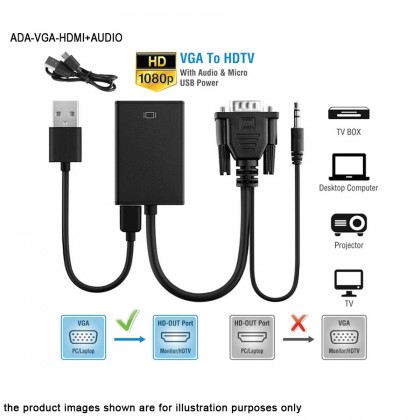

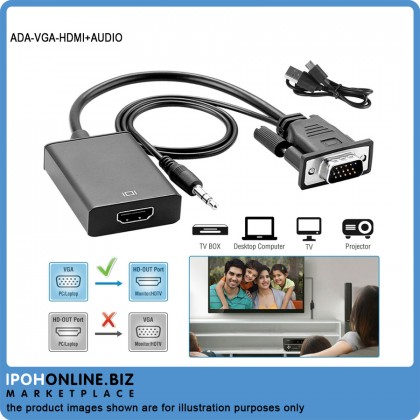

Device type: VGA + audio to HDMI converter adapter
Input: VGA (DB15 male) and audio (3.5mm audio jack)
Output: HDMI (A type 19pin female head)
VGA resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
HDMI resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Use environment: -20-65 degrees Celsius
Relative humidity: 5%-95%
Voltage: 5V 1A
Support system: Windows 2000 / XP / win7 / win8 / win10, Mac OS X, etc.
Length: 0.82 Ft / 25cm conversion cable;
2.62ft/80cm USB cable;
1.97 Ft / 60cm audio cable
Colour: Black

Package includes

1 x USB cable
1 x VGA + audio to HDMI converter adapter.
