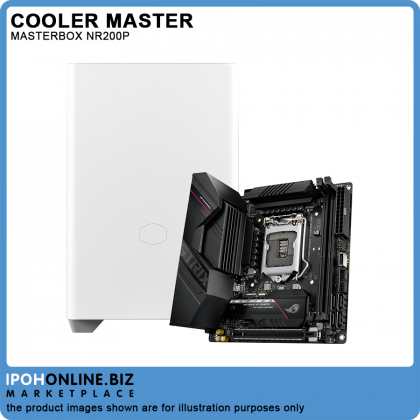

Cooler Master MASTERBOX NR200P Mini ITX Casing + ASUS ROG STRIX B560-I Mini-ITX Gaming WiFi Motherboard
Price | RM399.00 RM449.00 RM |
Product SKU | CAS-CM-MCB-NR200P+MOBO-ASUS-ROG-STRIX-B560-I |
Brand | Cooler Master |
Size (L x W x H) | 45 cm x 40 cm x 63 cm |
Availability | 1 |
Casing / Motherboard | |
Quantity |
|
Description
Highlight
- Intel® LGA 1200 Socket : Ready For 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold And Celeron® Processors
- Solid Power Solution : Teamed Power Stages With ProCool Power Connector, High-Quality Alloy Chokes And Durable Capacitors To Support Multi-Core Processors
- Smooth Networking : On-Board Intel® WiFi 6 (802.11ax) And Realtek 2.5GB Ethernet With ASUS LANGuard
- Best Gaming Connectivity : Supports HDMI™ 2.0 And DisplayPort 1.4 Output, Two M.2 Slots And USB 3.2 Gen 2x2 USB Type-C®
- DIY Friendly Design : M.2 Q-Latch, Pre-Mounted I/O Shield And Q-LED
- Unmatched Personalization : ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Header And Gen 2 Addressable Header
- Industry-Leading Gaming Audio : SupremeFX S1220A Codec With Savitech SV3H712 Amplifier, Along With Two-Way AI Noise Cancelation, DTS® Sound Unbound And Sonic Studio III
- Renowned Software : Bundled 60 Days AIDA64 Extreme Subscription And Intuitive UEFI BIOS Dashboard

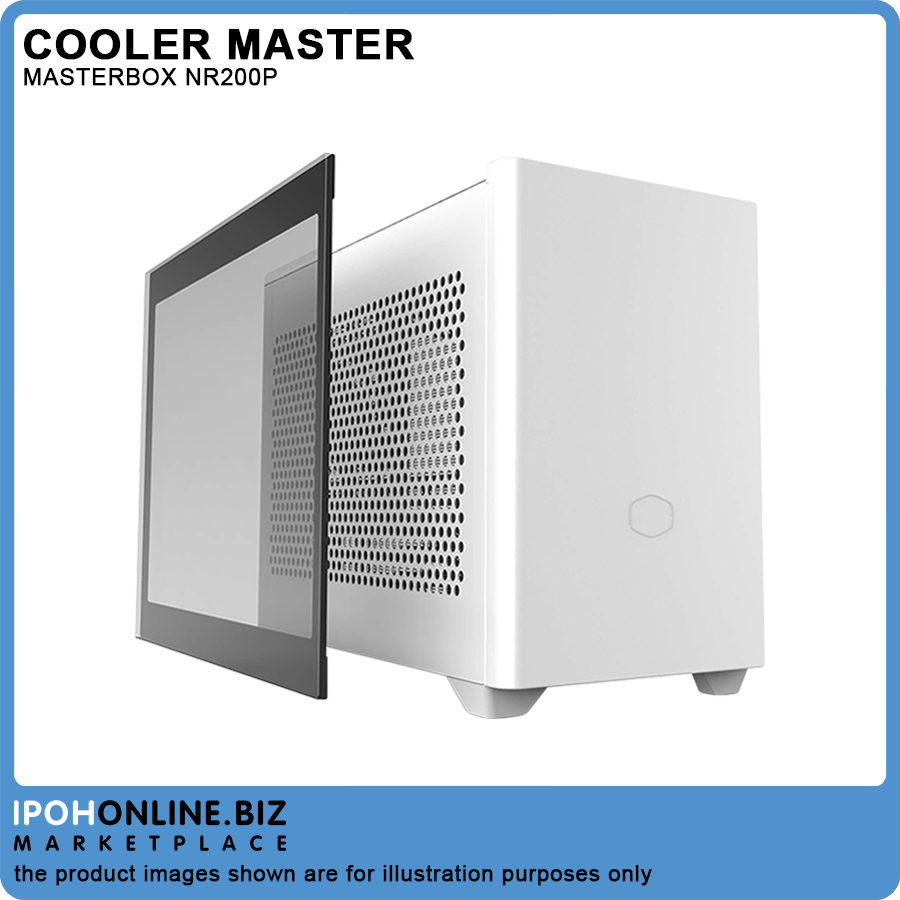

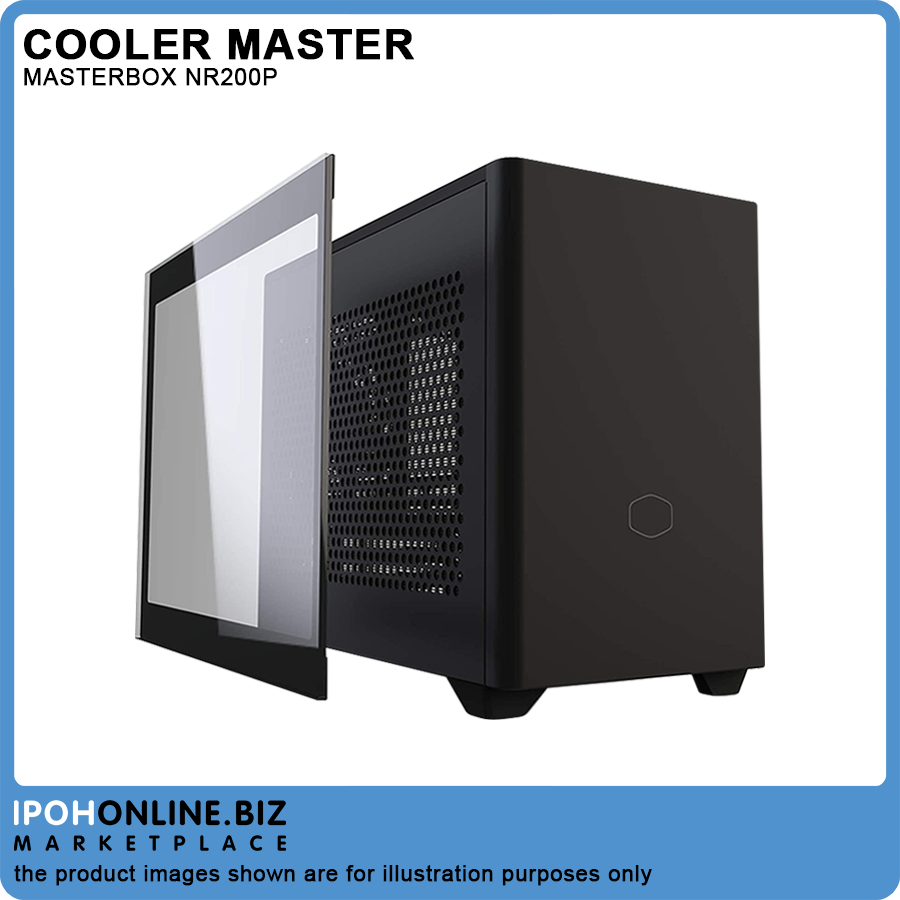

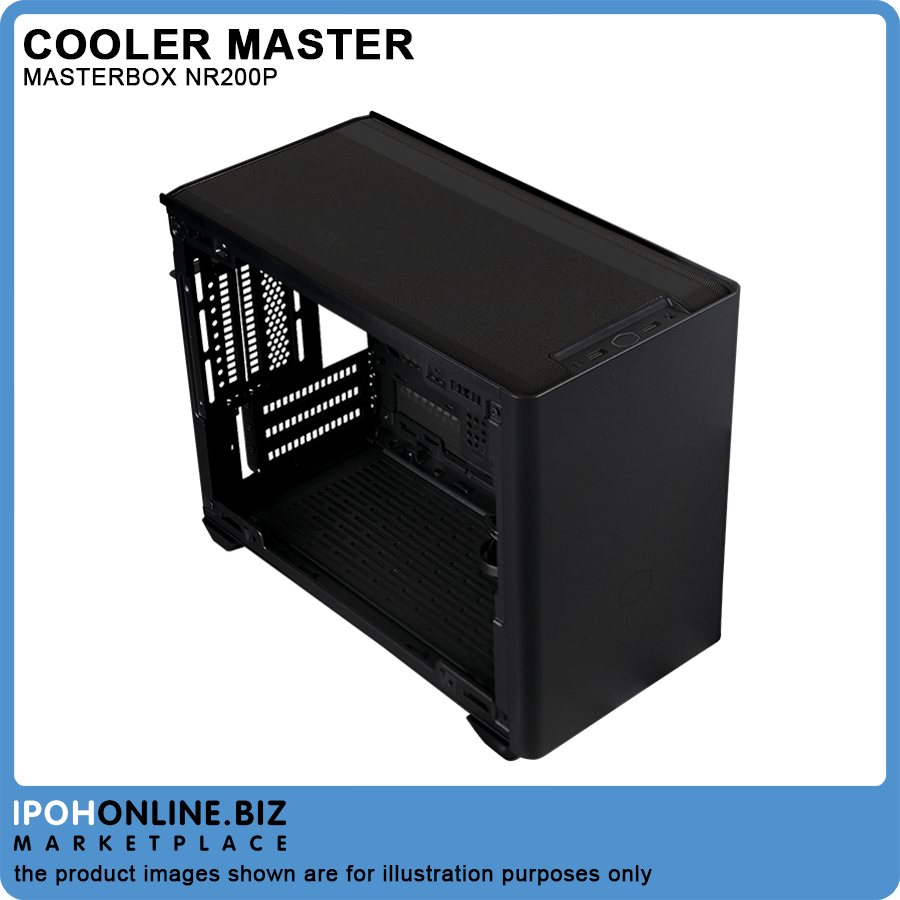

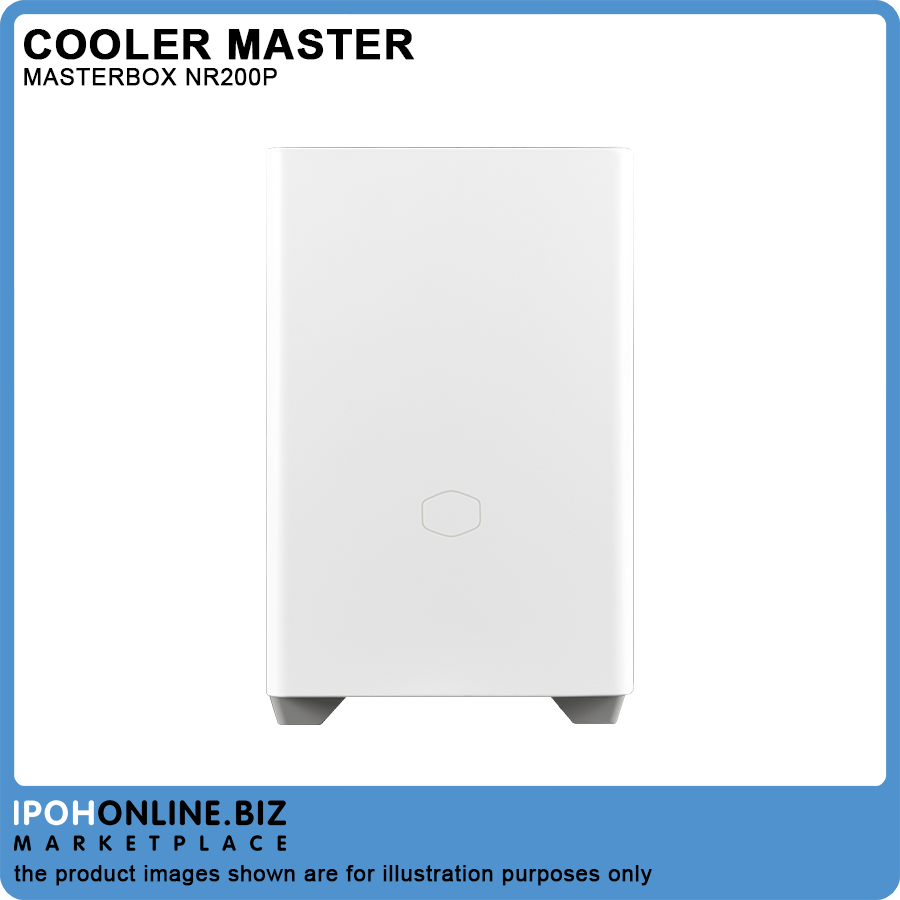

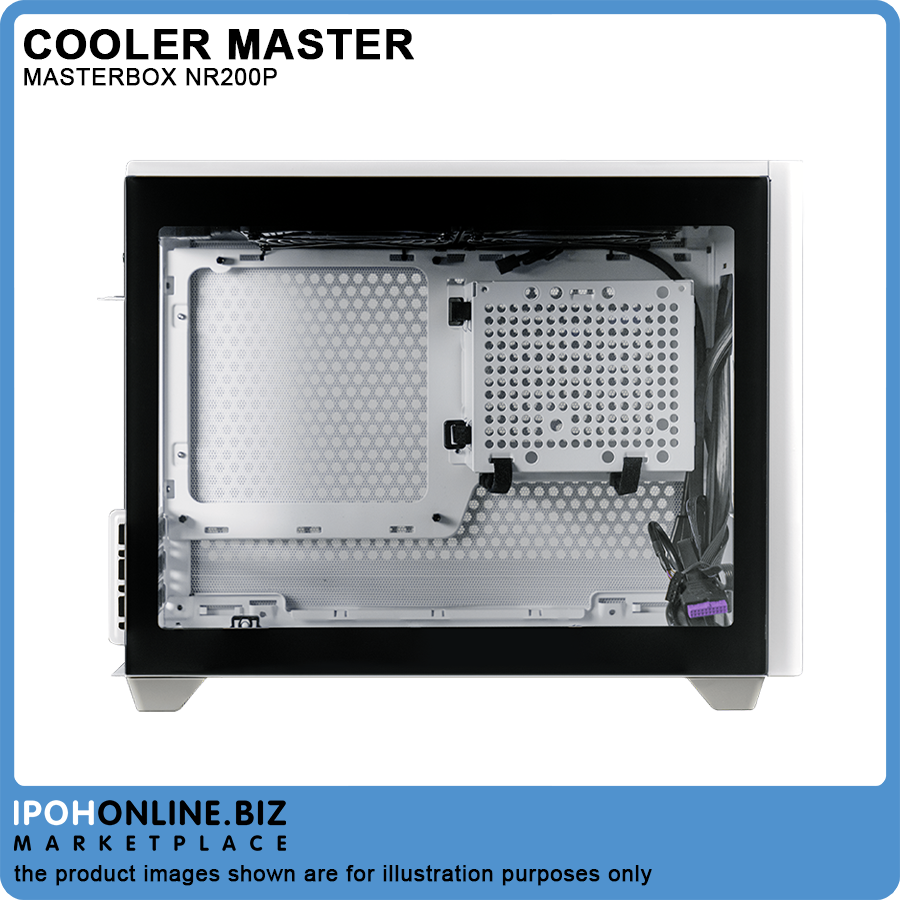

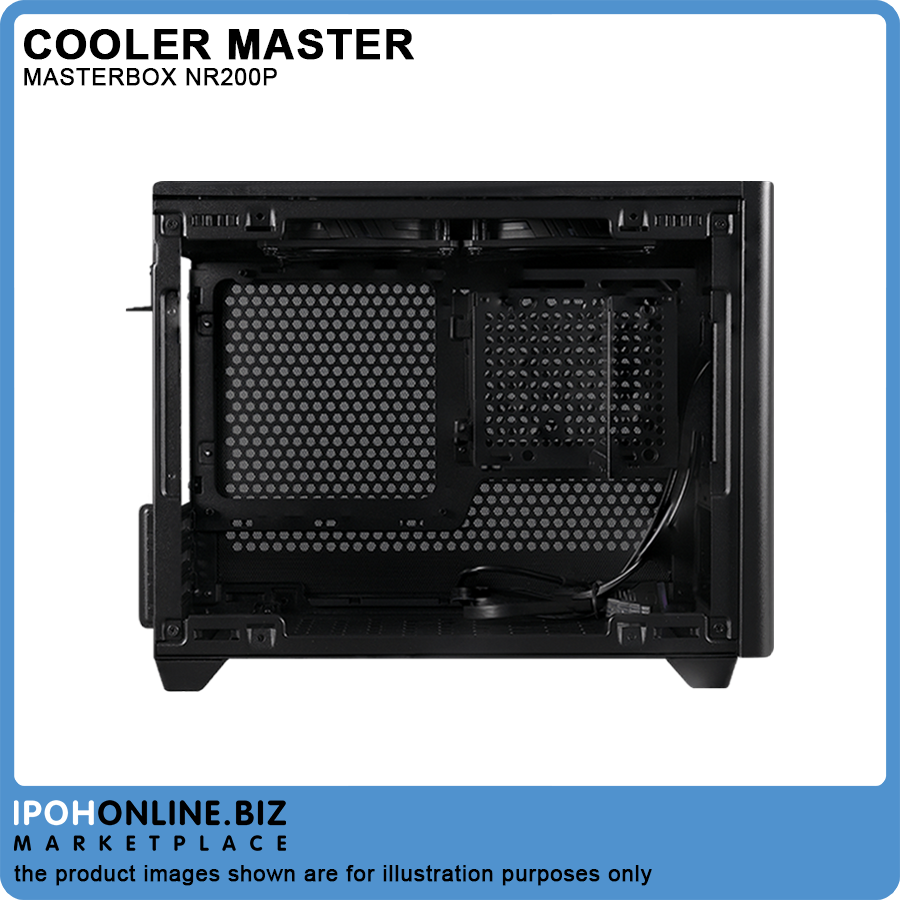

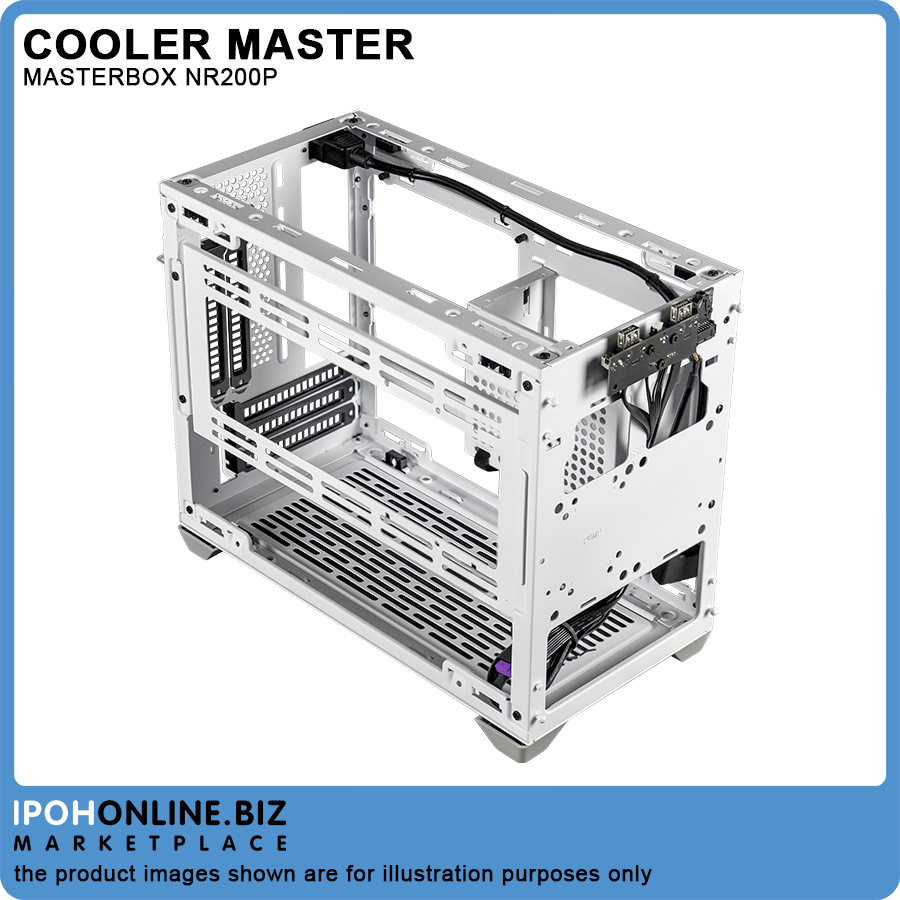

Cooler Master MASTERBOX NR200P Mini ITX Casing
Specification
Model Number | MCB-NR200P-KGNN-S00 (Black), MCB-NR200P-WGNN-S00 (White) |
Series | MasterBox Series |
Size | Mini ITX |
Materials | Steel, Plastic, Mesh, Tempered Glass |
Dimensions | 376 x 185 x 292mm Incl. Protrusions (L x W x H), 360 x 185 x 274mm Excl. Protrusions (L x W x H) |
Volume | 18.25L (Excl. Protrusions) |
Motherboard Support | Mini DTX, Mini ITX, Max MB Size : 244 x 226mm (L x H) |
Expansion Slot | 3 |
5.25" Drive Bays | 0 |
3.5" Drive Bays | 1 (Max. 2) |
2.5" / 3.5" Drive Bays (Combo) | 1 |
2.5" Drive Bays | 2 (Max. 3) |
I/O Panel | 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) |
Pre-Installed Fans - Top | 2 x 120mm 650-1800RPM PWM (Sickleflow) |
Pre-Installed Fans - Front | N/A |
Pre-Installed Fans - Rear | N/A |
Pre-Installed Fans - Bottom | N/A |
Fan Support - Top | 2 x 120mm |
Fan Support - Rear | 1 x 92mm |
Fan Support - Bottom | 2 x 120mm (Recommended Slim Fans For GPUS Wider Than 2.5 PCI Slots) |
Fan Support - Side | 2 x 120/140mm |
Radiator Support - Top | N/A |
Radiator Support - Rear | 120mm, 240mm, (Recommended For Custom Loops Only) |
Radiator Support - Bottom | 120mm, 240mm, (Recommended For Custom Loops Only) |
Radiator Support - Side | 120mm, 140mm, 240mm, 280mm, (Not Compatible With Vertical GPU Installation) |
Clearance - CPU Cooler | 76mm (GPU In Vertical Position), 153mm (Tempered Glass Side Panel), 155mm (Vented Steel Side Panel) |
Clearance - PSU | 130mm |
Clearance - GFX | L : 330mm (Incl. Power Connector), H : 156mm (Incl. Power Connector, W : 60mm (Triple Slot) |
Dust Filters | Top, Bottom, Left Side, Right Side |
Power Supply Support | SFX, SFX-L |
Warranty | 2 Years |
Weight | 5.93kg |

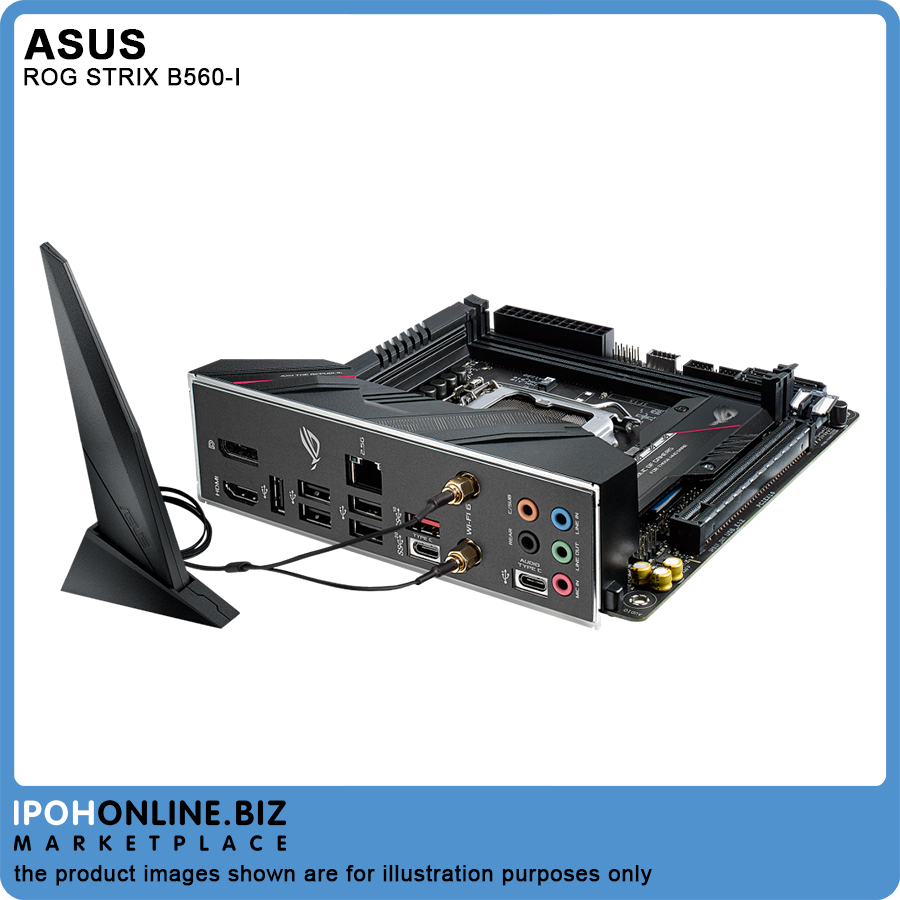

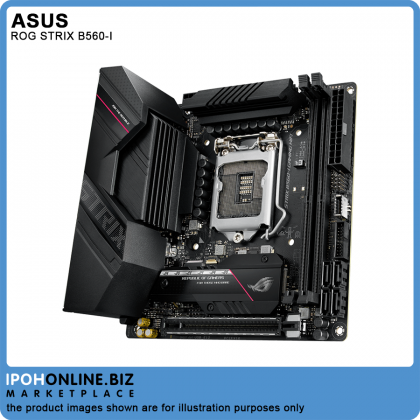

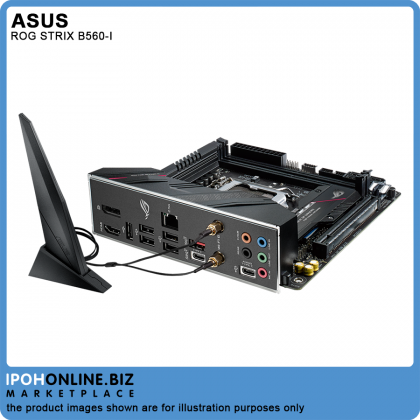

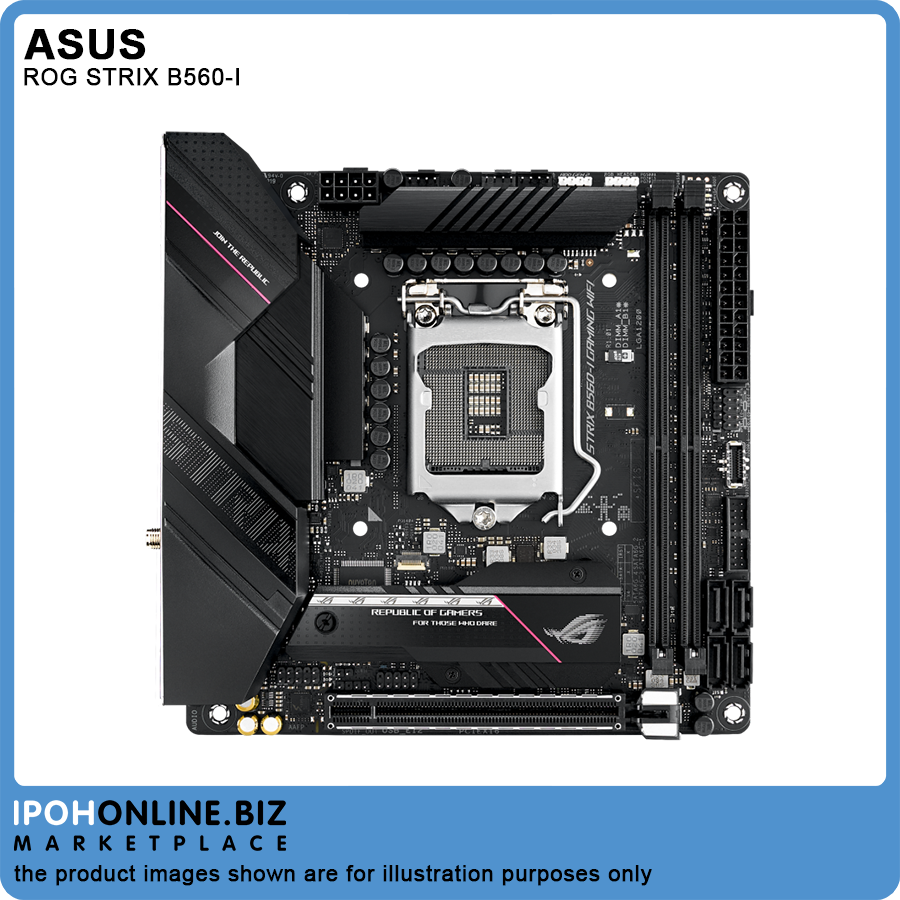

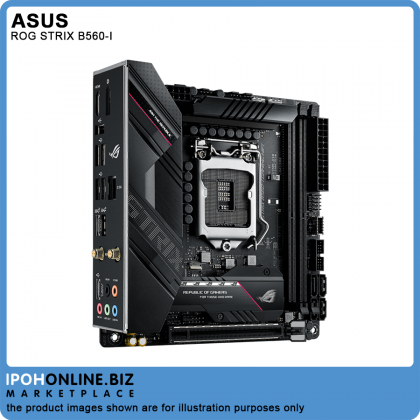

ASUS ROG STRIX B560-I Mini-ITX Gaming WiFi Motherboard
Specification
CPU | Intel® Socket LGA1200 For 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** |
Chipset | B560 |
Memory | 5333(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/2933/2800/2666/2400/2133MHz Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® i7/i9 Processors Support 2933/2800/2666/2400/2133 Natively, Others Will Run At The Maximum Transfer Rate Of DDR4 2666MHz * 11th Gen Intel® Processors Support 3200/2933/2800/2666/2400/2133 Natively |
Graphics | 1 x DisplayPort 1.4** 1 x HDMITM 2.0*** * Graphics Specifications May Vary Between CPU Types ** Only Intel® 11th Processors Support DisplayPort 1.4 With Max. Resolution Of 5120x2880 @60Hz, Others Will Only Support DisplayPort 1.4 With Max. Resolution Of 4096x2304 @60Hz *** Only Intel® 11th Processors Support HDMI™ 2.0 With Max. Resolution Of 4K@60Hz, Others Will Only Support HDMI™ 1.4 With Max. Resolution Of 4K@30Hz |
Expansion Slots | Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 Slot(s)** - Intel® 11th Processors Support PCIe 4.0 x16 - Intel® 10th Processors Support PCIe 3.0 x16 |
Storage | Intel® 11th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280 - Only Intel® 11th Processors Support PCIe 4.0 x4 Mode, This Slot Will Be Disabled For Other CPUs Intel® B560 Chipset M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) 4 x SATA 6Gb/s Ports To Enable Intel® Optane™ Memory (Hybrid Storage Device), It Must Be Installed In PCH-Attached Slots With Intel® Rapid Storage Technology |
Wireless & Bluetooth | Intel® Wi-Fi 6 |
USB | 1 x USB 3.2 Gen 2x2 Port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 Port(s) (1 x Type-A) 6 x USB 2.0 Port(s) (5 x Type-A, 1 x Audio USB Type-C®) 1 x USB 3.2 Gen 2 Connector(s) (Support(s) USB Type-C®) 1 x USB 3.2 Gen 1 Header(s) Support(s) Additional 2 USB 3.2 Gen 1 Ports 1 x USB 2.0 Header(s) Support(s) Additional 2 USB 2.0 Ports |
Audio | "ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A* - Impedance Sense For Front And Rear Headphone Outputs - Supports Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - High Quality 120dB SNR Stereo Playback Output And 113dB SNR Recording Input (Line-In) - Supports Up To 32-Bit/192kHz Playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear Audio USB Type-C® Port - Premium Japanese Audio Capacitors |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 Port(s) (1 x USB Type-C®) 1 x USB 3.2 Gen 2 Port(s) (1 x Type-A) 6 x USB 2.0 Port(s) (5 x Type-A, 1 x Audio USB Type-C®) 1 x DisplayPort 1 x HDMI™ Port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet Port 5 x Audio Jacks |
Internal I/O Connectors | Fan And Cooling Related 1 x 4-Pin CPU Fan Header(s) 1 x 4-Pin AIO Pump Header(s) 1 x 4-Pin Chassis Fan Header(s) Power Related 1 x 24-Pin Main Power Connector 1 x 8-Pin +12V Power Connector Storage Related 2 x M.2 Slots (Key M) 4 x SATA 6Gb/s Ports USB 1 x USB 3.2 Gen 2 Connector (Support(s) USB Type-C®) 1 x USB 3.2 Gen 1 Header(s) Support(s) Additional 2 USB 3.2 Gen 1 Ports 1 x USB 2.0 Header(s) Support(s) Additional 2 USB 2.0 Ports Miscellaneous 1 x AURA Addressable Gen 2 Header(s) 1 x AURA RGB Header(s) 1 x Clear CMOS Header 1 x Front Panel Audio Header (AAFP) 1 x S/PDIF Out Header 1 x Speaker Header 1 x 10-1 Pin System Panel Header |
Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-LED (CPU [Red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green]) - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 Heatsink Backplate - M.2 Heatsink ASUS EZ DIY - ProCool - Pre-Mounted I/O Shield - SafeSlot AURA Sync - AURA RGB Header(s) - Addressable Gen 2 RGB Header(s) |
Software Features | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-Virus Software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 Days Free Trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ DAEMON Tools MyAsus Norton Anti-Virus Software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL By PME, PXE |
Operating System | Windows 10 64bit |
Form Factor | Mini ITX 17cm x 17cm |
What In The Box
- 1 x Cooler Master MASTERBOX NR200P Mini ITX Casing
- 1 x ASUS ROG STRIX B560-I Mini-ITX Gaming WiFi Motherboard
Warranty
Casing - 2 Year Limited Warranty
Motherboard - 3 Year Limited Warranty
Local Manufacturer Warranty
