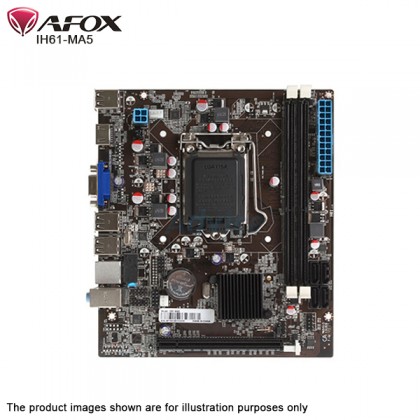

AFOX IH61-MA5 Intel H61 LGA 1155 DDR3 USB 2.0 VGA HDMI MicroATX Motherboard
Price RM230.00 RM399.00 RM
Product SKU MOBO-AFOX-IH61-MA5
Brand OEM
Size (L x W x H) 29 cm x 7 cm x 24 cm
Availability Out Of Stock
Description
Highlight
  • Supports Intel® Socket 1155 Core™ i7 / i5 / i3 Processors
  • Support Intel® H61 Chipset
  • Support Dual Channel DDR3 1333 / 1066 SDRAM
  • Support USB 2.0
  • Micro ATX

LGA 1155 socket for Intel® Second Generation Core™i7 / Core™i5 / Core™i3 Processors
This motherboard supports the Intel® second generation Core™i7 / Core™i5 / Core™i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™i7 / Core™i5 / Core™i3 processors are among the most powerful and energy efficient CPUs in the world.

Intel® H61 Express Chipset
The Intel® H61 Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 second generation processors. It uses serial point-to-point links, which allows increased bandwidth and stability, and provides an improved performance.
Dual-Channel DDR3 1333 / 1066 support
This motherboard supports DDR3 memory that features data transfer rates of 1333 (O.C.)/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.
SATA 3Gb/s
This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.
Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
Microsoft Windows 8 compatible
Gives you access to advanced computing experiences with the latest operating system so you get more done with your PC.



Specifications

Processor Supports Intel® Core™  i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors
Chipset Intel® H61
Memory Support Dual Channel DDR3 1066/1333/1600MHz Memory
2 x Memory Slots (Max. up to 8GB each)
LAN Realtek RTL8105E 10/100Mbps Ethernet on board
Audio Realtek 662 integrated on board
Slot 1 x PCI Express x16 slot
ON-Borad Pinheaders/Connectors 2 x USB 2.0 pinheaders support additional 4 x USB 2.0 ports
1 x Front Panel Audio pinheader
Back I/O Ports 1 x USB Keyboard
1 x USB Mouse
1 x VGA
1 x HDMI
4 x USB 2.0
1 x LAN Port
3 x Audio Jack
BIOS EFI BIOS
Form Factor Micro ATX  - 190*170 mm
Accessories 1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA Cable
Reviews (0)
view all
back
0
0 reviews
What's in the box
  • 1 x AFOX IH61-MA5 Intel H61 LGA 1155 DDR3 USB 2.0 VGA HDMI MicroATX Motherboard
  • 1 x User Manual
  • 1 x CD Driver
  • 1 x I/O Backboard
  • 1 x Sata Cable
