RM409.00 RM789.00 RM

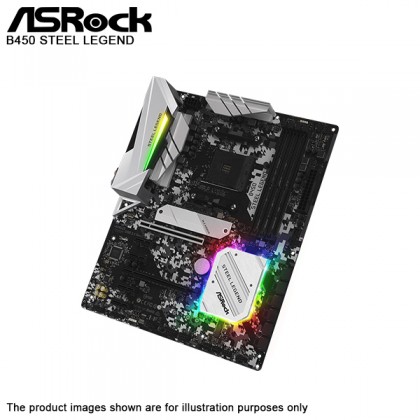

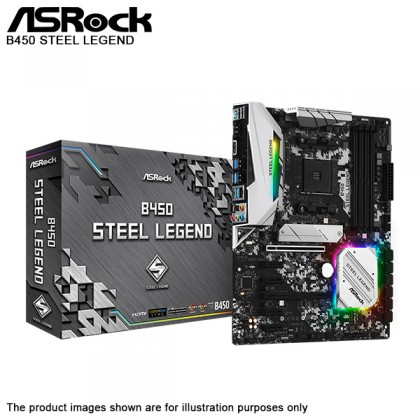

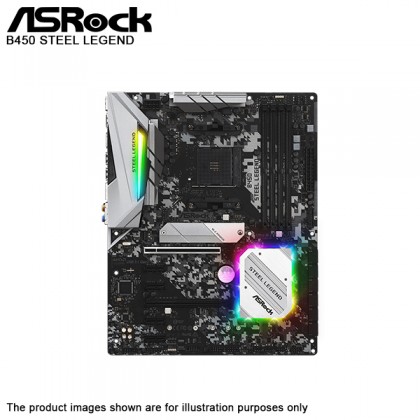

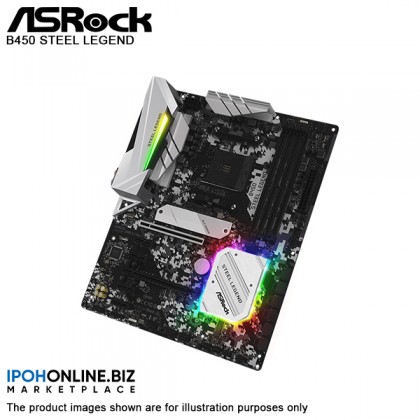

ASROCK B450 Steel Legend AMD Ryzen 3000 AM4 Chassis Water Pump Fans Ready DisplayPort HDMI DDR4 USB 3.1 M.2 Gaming RGB ATX Motherboard
1 reviews
Price RM409.00 RM789.00 RM
Product SKU MOBO-ASROCK-B450-STEEL-LEGEND
Brand OEM
Size (L x W x H) 42 cm x 12 cm x 34 cm
Availability Out Of Stock
Description
Highlight
  • AMD AM4 Socket
  • Supports DDR4 3533+ (OC)
  • 2 PCIe 3.0 x 16, 4 PCIe 2.0 x 1
  • AMD Quad CrossFireX™
  • Graphics Output : DisplayPort, HDMI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x 4), 1 M.2 (PCIe Gen3 x 2 & SATA3)
  • 2 USB 3.1 Gen2 (Rear Type-A+C)
  • 6 USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

ASROCK B450 Steel Legend AMD Ryzen 3000 AM4 Chassis Water Pump Fans Ready DisplayPort HDMI DDR4 USB 3.1 M.2 Gaming RGB ATX Motherboard

asrock-b450-steel-legend-6asrock-b450-steel-legend-7asrock-b450-steel-legend-8asrock-b450-steel-legend-9





Specification

Unique Feature ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)

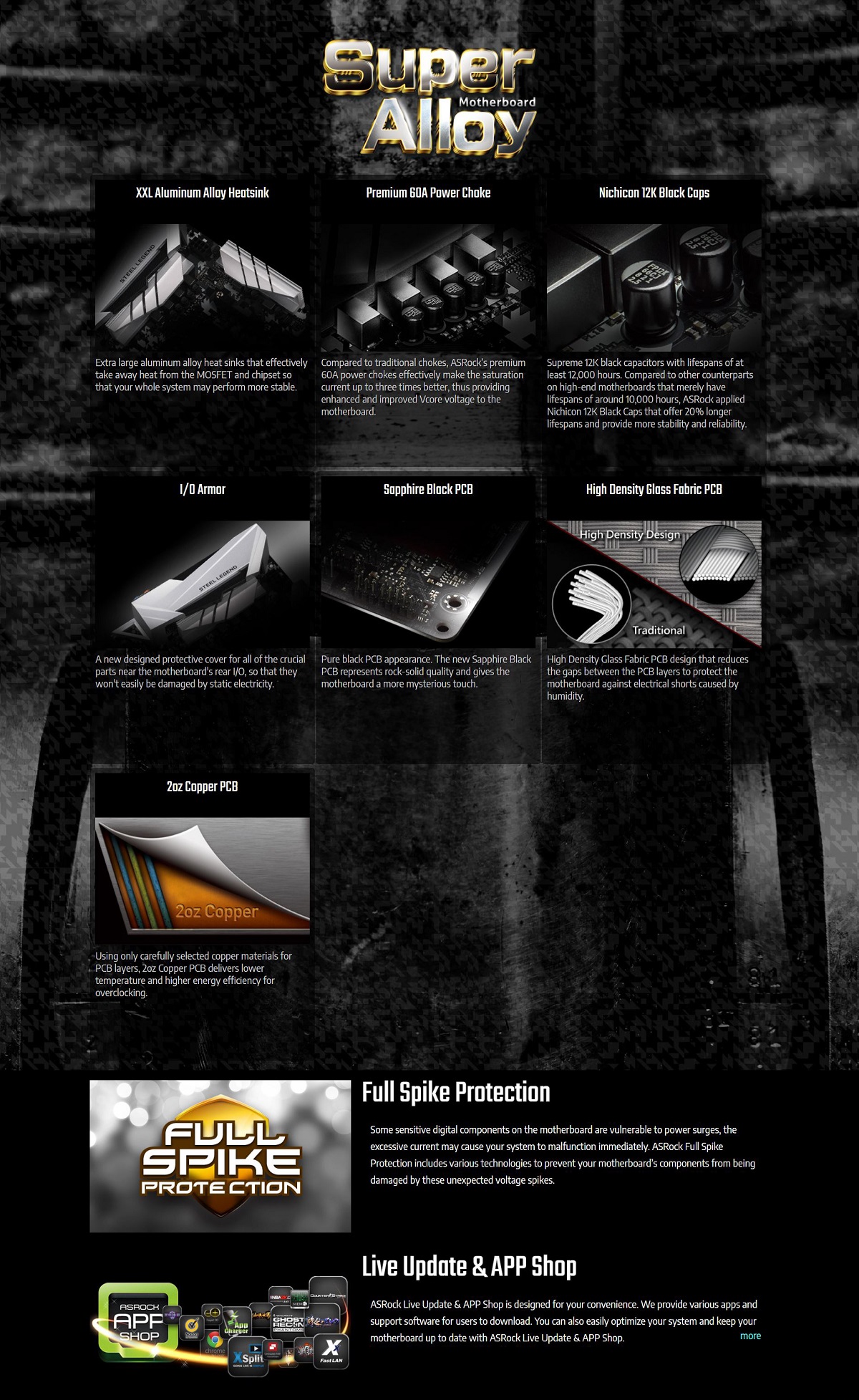

ASRock Super Alloy
- XXL Aluminum Alloy Heatsink

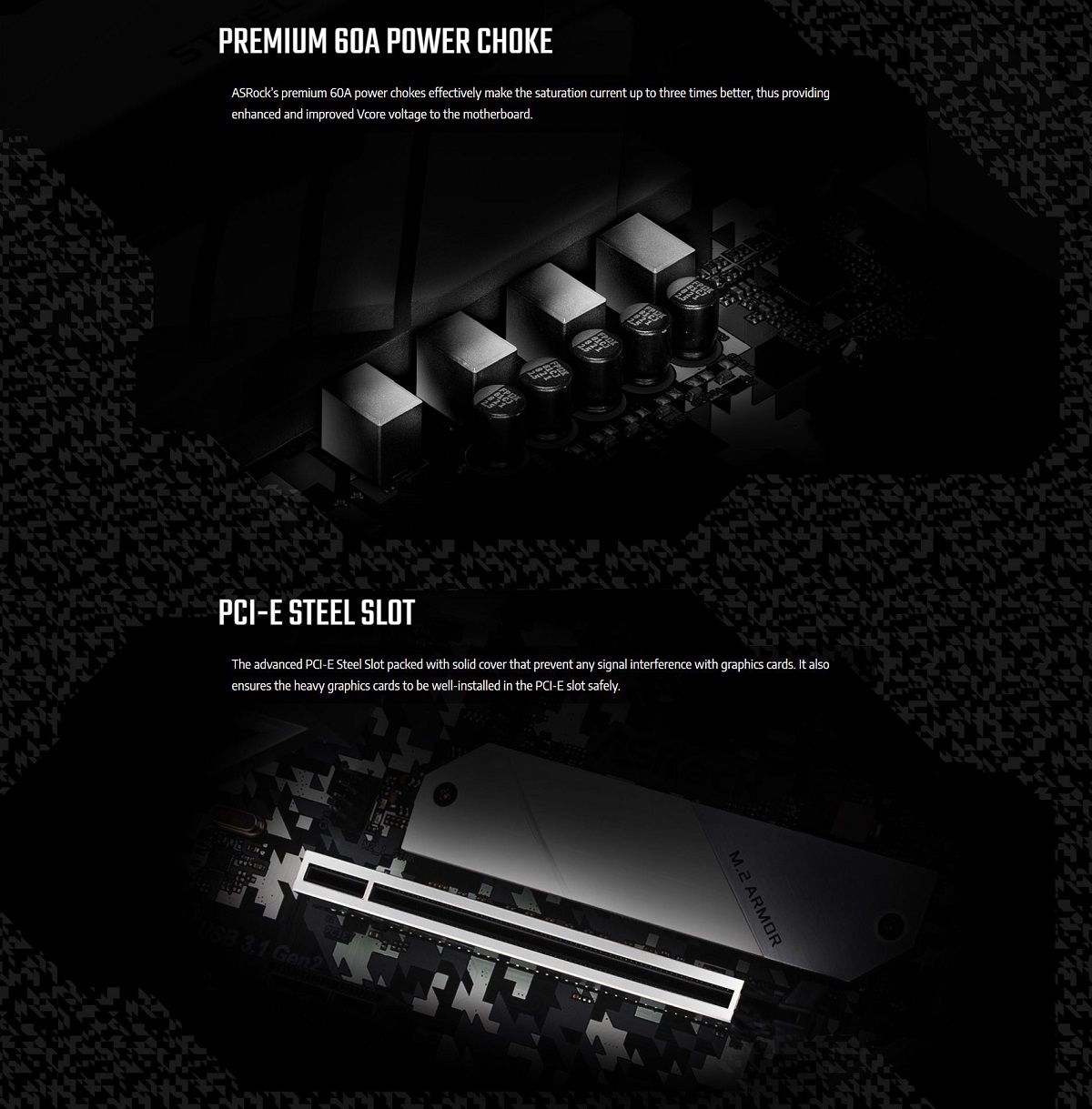

- Premium 60A Power Choke
- Nichicon 12K Black Caps (100% Japan Made High Quality Conductive Polymer Capacitors)
- I/O Armor
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x 4)
ASRock Ultra USB Power
ASRock Full Spike Protection (For All USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
AMD StoreMI
CPU - AMD AM4 Socket
- Digi Power Design
- 6 Power Phase Design
Chipset - AMD Promontory B450
Memory - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen Series CPUs (Matisse) Support DDR4 3200/2933/2667/2400/2133 ECC & Non-ECC, Un-Buffered Memory
- AMD Ryzen Series CPUs (Pinnacle Ridge) Support DDR4 3533+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & Non-ECC, Un-Buffered Memory
- AMD Ryzen Series CPUs (Picasso) Support DDR4 2933/2667/2400/2133 Non-ECC, Un-Buffered Memory
- AMD Ryzen Series CPUs (Summit Ridge) Support DDR4 3466+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & Non-ECC, Un-Buffered Memory
- AMD Ryzen Series CPUs (Raven Ridge) Support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133 Non-ECC, Un-Buffered Memory
- Max. Capacity Of System Memory : 64GB
- 15μ Gold Contact In DIMM Slots
BIOS - 128Mb AMI UEFI Legal BIOS With Multilingual GUI Support
- Supports "Plug And Play"
- ACPI 5.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3 Support
- DRAM Voltage Multi-Adjustment
Graphics - Integrated AMD Radeon™ Vega Series Graphics In Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared Memory Default 2GB. Max Shared Memory Supports Up To 16GB
- Dual Graphics Output : Support HDMI And DisplayPort 1.2 Ports By Independent Display Controllers
- Supports HDMI 1.4 With Max. Resolution Up To 4K x 2K(4096x2160)@24Hz/(3840x2160)@30Hz
- Supports DisplayPort 1.2 With Max. Resolution Up To 4K x 2K(4096x2160)@60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC And HBR (High Bit Rate Audio) With HDMI 1.4 Port (Compliant HDMI Monitor Is Required)
- Supports HDCP 1.4 With HDMI 1.4 And DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) Playback With HDMI 1.4 And DisplayPort 1.2 Ports
Actual Support May Vary By CPU
The Max Shared Memory 16GB Requires 32GB System Memory Installed
Audio - 7.1 CH HD Audio With Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-Ray Audio Support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- PCB Isolate Shielding
- Individual PCB Layers For R/L Audio Channel
- Gold Audio Jacks
To Configure 7.1 CH HD Audio, It Is Required To Use An HD Front Panel Audio Module And Enable The Multi-Channel Audio Feature Through The Audio Driver
LAN - PCIE x 1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots AMD Ryzen Series CPUs(Matisse, Summit Ridge And Pinnacle Ridge)
- 2 x PCI Express 3.0 x 16 Slots(PCIE1 : 16 Mode; PCIE4 : 4 Mode)
AMD Ryzen Series CPUs(Picasso, Raven Ridge)
- 2 x PCI Express 3.0 x 16 Slots(PCIE1 : 8 Mode; PCIE4 : 4 Mode) (If You Use Athlon 2xxGE Series APU, PCIE1 Slot Will Run At 4 Mode)
AMD Athlon Series CPUs
- 2 x PCI Express 3.0 x 16 Slots(PCIE1 : 4 Mode; PCIE4 : 2 Mode)
- 4 x PCI Express 2.0 x 1 Slots
- Supports AMD Quad CrossFireX™ And CrossFireX™
Supports NVMe SSD As Boot Disks
If M2_1 Is Occupied, PCIE4 Will Be Disabled
This Feature Is Only Supported With Ryzen Series CPUs(Matisse, Summit Ridge, Pinnacle Ridge, Picasso And Raven Ridge)
Storage - 4 x SATA3 6.0 Gb/s Connectors, Support RAID (RAID 0, RAID 1 And RAID 10), NCQ, AHCI And Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors By ASMedia ASM1061, Support NCQ, AHCI And Hot Plug
- 1 x Ultra M.2 Socket (M2_1), Supports M Key Type 2230/2242/2260/2280 M.2 PCI Express Module Up To Gen3 x 4(32 Gb/s) (With Matisse, Picasso, Summit Ridge, Raven Ridge And Pinnacle Ridge) Or Gen3 x 2(16 Gb/s) (With Athlon 2xxGE Series APU And Raven Ridge 2)
- 1 x M.2 Socket (M2_2), Supports M Key Type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s Module And M.2 PCI Express Module Up To Gen3 x 2(16 Gb/s)
M2_2, SATA3_3 And SATA3_4 Share Lanes. If Either One Of Them Is In Use, The Others Will Be Disabled
If M2_1 Is Occupied, PCIE4 Will Be Disabled
Connector - 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED And Speaker Header
- 1 x RGB LED Header
- 1 x Addressable LED Header
- 1 x AMD Fan LED Header
- 1 x CPU Fan Connector (4-Pin)
- 1 x CPU/Water Pump Fan Connector (4-Pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-Pin) (Smart Fan Speed Control)
- 1 x 24 Pin ATX Power Connector
- 1 x 8 Pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers(Support 4 USB 2.0 Ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 Ports) (Supports ESD Protection)
Supports In Total Up To 12V/3A, 36W LED Strip
Supports In Total Up To 5V/3A, 15W LED Strip
The AMD Fan LED Header Supports LED Strips Of Maximum Load Of 3A(36W) And Length Up To 2.5M
The CPU Fan Connector Supports The CPU Fan Of Maximum 1A(12W) Fan Power
The CPU/Water Pump Fan Supports The Water Cooler Fan Of Maximum 2A(24W) Fan Power
The Chassis/Water Pump Fan Supports The Water Cooler Fan Of Maximum 2A(24W) Fan Power

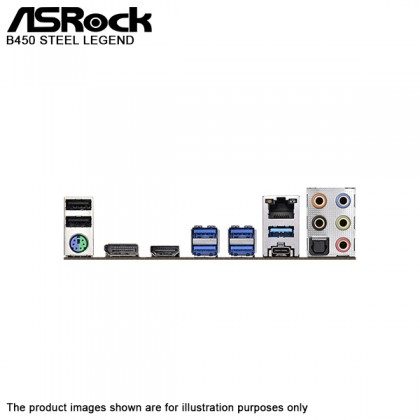

Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-A Port(10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port With LED (ACT/LINK LED And SPEED LED)
- HD Audio Jacks : Rear Speaker/Central/Bass/Line In/Front Speaker/Microphone(Gold Audio Jacks)
Ultra USB Power Is Supported On USB3_34 Ports
Software And UEFI Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
These Utilities Can Be Downloaded From ASRock Live Update & APP Shop
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser And Toolbar
Accessories - Quick Installation Guide, Support CD, I/O Shield
- SATA Data Cables
- Screws For M.2 Sockets
- Standoff For M.2 Socket
Hardware Monitor - Temperature Sensing : CPU, MB
- Fan Tachometer : CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan(Auto Adjust Chassis Fan Speed By CPU Temperature) : CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control : CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage Monitoring : +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor : 30.5 x 24.4 CM
OS - Microsoft® Windows® 10 64-Bit
Certifications - FCC, CE
- ErP/EuP Ready(ErP/EuP Ready Power Supply Is Required)





What In The Box

  • 1 x ASROCK B450 Steel Legend AMD Ryzen 3000 AM4 Chassis Water Pump Fans Ready DisplayPort HDMI DDR4 USB 3.1 M.2 Gaming RGB ATX Motherboard
  • 2 x SATA Data Cables
  • 1 x Screw For M.2 Socket
  • 1 x Standoff For M.2 Socket
  • 1 x I/O Shield
  • 1 x Quick Installation Guide
  • 1 x Support CD





Warranty
3 Years Warranty
Local Manufacturer Warranty
