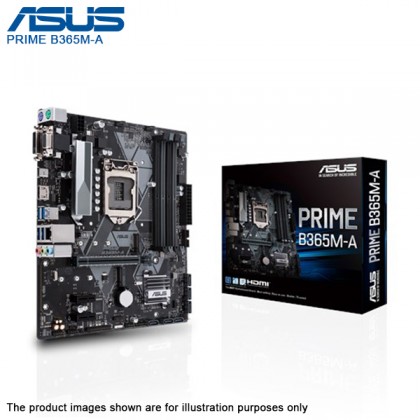

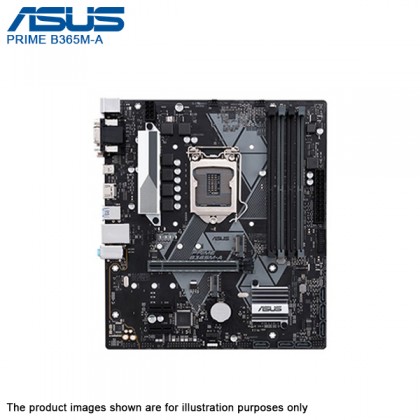

Asus Prime B365M-A Intel 9th 8th B365 LGA 1151 DDR4 DVI VGA HDMI M.2 OPTANE Ready Micro ATX motherboard with Aura Sync RGB header
Price RM348.00 RM499.00 RM
Product SKU MOBO-ASUS-PRIME-B365M-A
Brand Asus
Size (L x W x H) 30 cm x 29 cm x 9 cm
Availability Out Of Stock
Description
Highlight
  • ASUS OptiMem : Careful Routing Of Traces And Vias To Preserve Signal Integrity For Improved Memory Stability
  • Fan Xpert 2+ : Flexible Controls For Ultimate Cooling And Quietness, Plus GPU-Temperature Sensing For Cooler Gaming
  • 5X Protection III : Multiple Hardware Safeguards For All-Round Protection
  • ASUS Aura Sync Header : Onboard Connector For RGB LED Strips, Easily Synced With An Ever-Growing Portfolio Of Aura Sync-Capable Hardware
  • Ultrafast Connectivity : Supreme Flexibility With Native M.2 Support For Lightning-Fast Storage Speeds

asus prime b365-a-06asus prime b365-a-07asus prime b365-a-08asus prime b365-a-09asus prime b365-a-10asus prime b365-a-11





Specifications

CPU Intel® Socket 1151 For 9th/8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 NM CPU
Supports Intel® Turbo Boost Technology 2.0
- The Intel® Turbo Boost Technology 2.0 Support Depends On The CPU Types
Chipset Intel® B365
Memory Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133MHz Non-ECC, Un-Buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
- The Maximum Memory Frequency Supported Varies By Processor
- DDR4 2666MHz And Higher Memory Modules Will Run At Max. 2666MHz On Intel® 8th Gen. 6-Core Or Higher Processors
Graphic Integrated Graphics Processor - Intel® HD Graphics Support
Multi-VGA Output Support : HDMI/DVI-D/D-Sub Ports
- Supports HDMI 1.4b With Max. Resolution 4096x2160 @ 30Hz
- Supports DVI With Max. Resolution 1920x1200 @ 60Hz
- Supports D-Sub With Max. Resolution 1920x1200 @ 60Hz
Maximum Shared Memory Of 1024MB (For iGPU Exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots 1 x PCIe 3.0 x16 (x16 Mode)
2 x PCIe 3.0/2.0 x1
Storage Intel® B365 Chipset
1 x M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode)
1 x M.2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (PCIE 3.0 x 4 Mode)
6 x SATA 6Gb/s Port(s), Gray
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology Supports
Intel® Optane™ Memory Ready
LAN Realtek® RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-Detection, Front Panel Jack-Retasking
Audio Feature
- LED Illuminated Design - Brighten Up Your Build With The Gorgeous Illuminated Audio Trace Path
- Audio Shielding : Ensures Precision Analog/Digital Separation And Greatly Reduced Multi-Lateral Interference
- Dedicated Audio PCB Layers : Separate Layers For Left And Right Channels To Guard The Quality Of The Sensitive Audio Signals
- Premium Japanese Audio Capacitors : Provide Warm, Natural And Immersive Sound With Exceptional Clarity And Fidelity
- Choose The Chassis With HD Audio Module In Front Panel To Support 8-Channel Audio Output
USB Ports Intel® B365 Chipset
7 x USB 3.1 Gen 1 Up To 5Gbps Port(s) (5 At Back Panel, 4 x Type-A+1 x Type-C, 2 At Mid-Board)
Intel® B365 Chipset
4 x USB 2.0/1.1 Port(s) (4 At Mid-Board)
Special Features ASUS 5X Protection III
- ASUS SafeSlot Core : Fortified PCIe Slot Prevents Damage
- ASUS LAN Guard : Protects Against LAN Surges, Lightning Strikes And Static-Electricity Discharges
- ASUS Overvoltage Protection : World-Class Circuit-Protecting Power Design
- ASUS Stainless-Steel Back I/O : 3X Corrosion-Resistance For Greater Durability
- ASUS DIGI+ VRM : Premium Components Provide Better Power Efficiency
ASUS OptiMem
- Optimem (Improved DDR4 Stability)
ASUS EPU
- EPU
ASUS Exclusive Features
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution
- Stylish Fanless Design Heat-Sink Solution
- ASUS Fan Xpert 2+
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design
- ASUS Q-DIMM
M.2 Onboard (The Latest Transfer Technologies With Up To 32Gb/s Data Transfer Speeds)
Back I/O Ports 1 x PS/2 Keyboard (Purple)
1 x PS/2 Mouse (Green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) Port(s)
1 x USB 3.1 Gen 1 USB Type-CTM Up To 5Gbps
4 x USB 3.1 Gen 1 Type-A
1 x 8-Channel Audio I/O
Internal I/O Ports 1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1 (Up To 5Gbps) Connector(s) Support(s) Additional 2 USB 3.1 Gen 1 Port(s) (19-Pin)
2 x USB 2.0 Connector(s) Support(s) Additional 4 USB 2.0 Port(s)
2 x M.2 Socket 3 For M Key, Type 2242/2260/2280 Devices
1 x TPM Header
1 x LPT Header
1 x COM Port(s) Connector(s)
6 x SATA 6Gb/s Connector(s)
1 x CPU Fan Connector(s)
2 x Chassis Fan Connector(s)
1 x S/PDIF Out Header(s)
1 x 24-Pin EATX Power Connector(s)
1 x 8-Pin EATX 12V Power Connectors
1 x Front Panel Audio Connector(s) (AAFP)
1 x Clear CMOS Jumper(s)
1 x System Panel Connector
1 x Chassis Intrusion Header
1 x Speaker Connector
Accessories User's Manual
I/O Shield
2 x SATA 6Gb/s Cable(s)
2 x M.2 Screws
1 x Supporting DVD
BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-Language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified Log, F6 Qfan Control, F12 PrintScreen, And ASUS DRAM SPD (Serial Presence Detect) Memory Information
Manageability WOL By PME, PXE
Operating System Windows® 10 64-Bit
Form Factor mATX Form Factor
9.6 x 8.6 Inch (24.4 x 21.8 CM)





What In The Box

  • 1 x Asus Prime B365M-A Intel 9th 8th B365 LGA 1151 DDR4 DVI VGA HDMI M.2 OPTANE Ready Micro ATX motherboard with Aura Sync RGB header
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 2 x M.2 Screws
  • 1 x Supporting DVD
  • 1 x User's Manual





Warranty
3 Years Warranty
Local Manufacturer Warranty
