BIOSTAR B660MX-E PRO INTEL B660 LGA1700 M.2 4DIMM DDR4 VGA HDMI DVI 12TH GEN mATX MOTHERBOARD
| Price | RM499.00 RM599.00 RM |
| Product SKU | MOBO-BIOSTAR-B660MX-E-PRO |
| Brand | Biostar |
| Size (L x W x H) | 35 cm x 31 cm x 11 cm |
| Availability | |
Description
Highlight
- Supports 12th/13th/14th Generation Intel Core™ Processor
- Intel B660 single chip architecture
- Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) up to 128 GB Memory
- Supports PCIe 4.0
- Supports PCIe M.2 4.0 (64Gb/s)
- Supports HDMI 4K2K
- Supports USB 3.2 Gen1
- Support WiFi 6 & 6E module (No WiFi card included)
Overview
Specifications
| Chipset | Intel B660 |
| CPU Support | Support for 12th / 13th / 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package |
| Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules |
| Integrated Video | Supports DX12 Supports HDCP |
| Storage | Total supports 2 x M.2 socket and 4x SATA III (6Gb/s) ports Intel 12th/13th/14th Processors 1 x M.2 (M Key) Socket (M2_PCIEG4_64G): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) Intel B660 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242/2260/2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology |
| LAN | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Audio Codec | ALC897 7.1 Channels, High Definition Audio, Hi-Fi(Front) |
| USB | 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers) |
| Expansion Slot | INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot (x16 mode) INTEL B660 Chipset 1 x PCIe 3.0 x16 Slot (x4 mode) 1 x PCIe 3.0 x1 Slot |

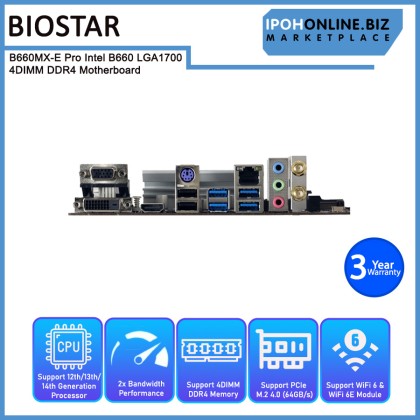

| Rear I/O | 2 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 4 x USB 3.2 (Gen1) port 2 x USB 2.0 port 1 x LAN port 3 x Audio Jack |
| Internal I/O | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x SPI TPM Header 2 x LED Header (5V) 1 x LED Header (12V) |
| H/W Monitoring | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| Dimension | Micro ATX Form Factor Dimension: 24.4cm x 24.4cm (W x L) |
| OS Support | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| Bundle Software | BullGuard |
| Accessories | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi antenna accessories |
| Features | VIVID LED DJ BIO-FLASHER A.I FAN |
What's in the box
- 1 x BIOSTAR B660MX-E PRO INTEL B660 LGA1700 M.2 4DIMM DDR4 VGA HDMI DVI 12TH GEN mATX MOTHERBOARD
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x Quick Guide
- 1 x WiFi antenna accessories
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
