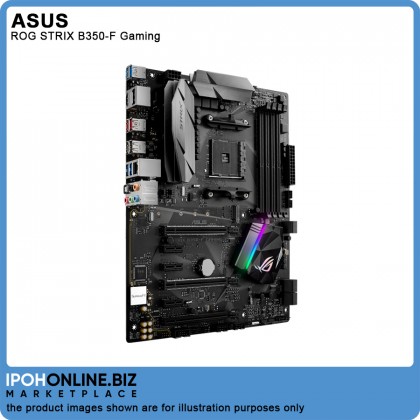

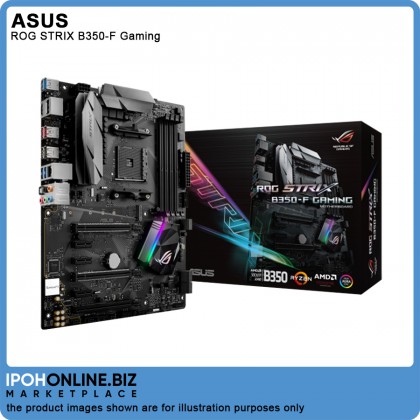

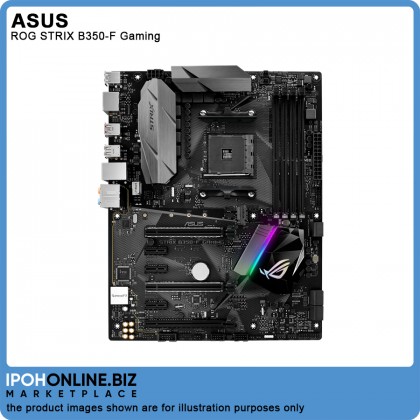

Asus ROG STRIX B350-F Gaming AMD RYZEN AM4 DDR4 HDMI M.2 USB 3.1 ATX B350 Gaming First Technology Motherboard
1 reviews
Price RM699.00 RM999.00 RM
Product SKU MOBO-ASUS-B350-F
Brand Asus
Size (L x W x H) 32 cm x 8 cm x 28 cm
Availability 1
Quantity
Description
Highlight
  • The Successor To Pro Gaming Motherboards
  • Aura Sync RGB LED : Stunning Synchronized Effects And Two Aura 4-Pin RGB-Strip Headers
  • SupremeFX Audio : Renowned Audio Performance With Intuitive Sonic Studio III And Sonic Radar III
  • 5-Way Optimization : One-Click System-Wide Overclocking
  • Gaming Connectivity : M.2 And USB 3.1 Type-A Connectors
  • Gaming Networking : Intel® Gigabit Ethernet, LANGuard And GameFirst Technologies
  • Gaming Durability : ASUS SafeSlot And Premium Components For Maximum Durability

mobo-asus-b350-f-7mobo-asus-b350-f-8mobo-asus-b350-f-9mobo-asus-b350-f-10mobo-asus-b350-f-11mobo-asus-b350-f-12



Specification

CPU AMD AM4 Socket For AMD Ryzen And A-Series/Athlon Processors
Chipset AMD B350
Memory 4 x DIMM, Max. 64GB, DDR4 3200(O.C)/2933(O.C)2666/2400/2133MHz ECC And Non-ECC, Un-Buffered Memory
Internal Graphics Integrated AMD Radeon R Series Graphics In The 7th Generation A-Series Only
Monitor Output Support HDMI 1.4b And Display Port 1.2
HDMI Resolution 4096 x 2160 @ 24Hz/2560 x 1600 @ 60Hz
Display Port Resolution 4096 x 2160 @ 60Hz
Shared Memory 2048MB
Multi-GPU Support AMD 3-Way CrossFireX
Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 Or x8/x4), 1 x PCIe 3.0/2.0 x16 (x8 Mode), 3 x PCIe 2.0 x1
M.2 Socket 1 x M.2 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 x 4 Mode)
SATA 6Gb/s Ports 6
RAID Supports Raid 0, 1, 10
LAN Intel I211-AT Gigabit LAN Controller With Anti-Surge LAN Guard
Audio CODEC ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Rear USB Ports 2 x USB 3.1 Gen 2 (Red), 4 x USB 3.1 Gen 1 (Blue), 2 x USB 2.0 (Black)
ROG Aura Aura Lighting Control, 2 x Aura RGB Strip Headers

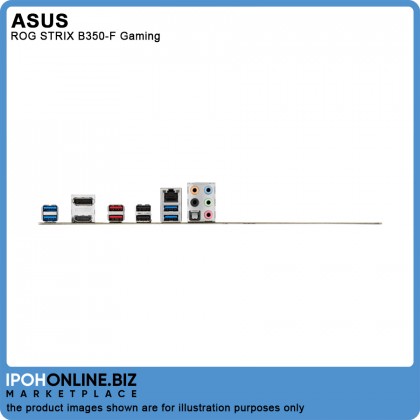

Back I/O Ports Display Port 1.2, HDMI, LAN, Optical S/PDIF Out And 5 x Audio Jacks
Operating System Windows 10
Form Factor ATX



What In The Box

  • 1 x Asus ROG STRIX B350-F Gaming AMD RYZEN AM4 DDR4 HDMI M.2 USB 3.1 ATX B350 Gaming First Technology Motherboard
  • 1 x IO Shield
  • 1 x M.2 Screw
  • 4 x SATA Cables
  • 1 x Drivers & Utilities CD
  • 1 x User Manual
  • 1 x Quick Installation Guide



Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
