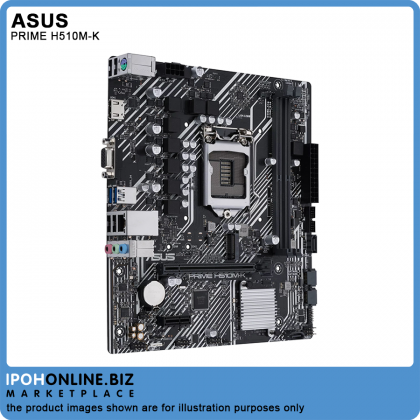

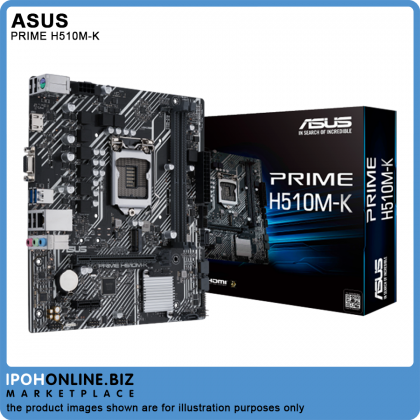

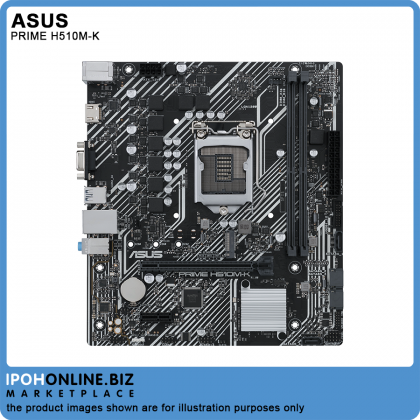

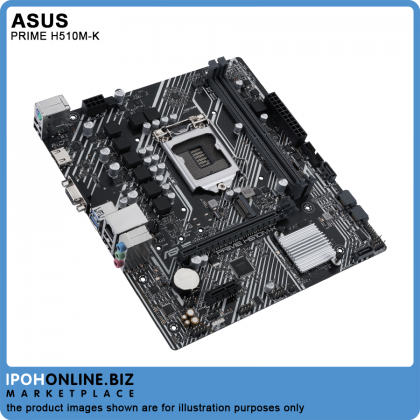

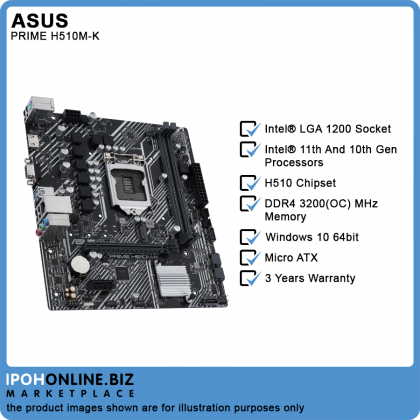

ASUS PRIME H510M-K 11th Gen Intel H510 LGA 1200 DDR4 M.2 HDMI VGA Micro ATX Motherboard
| Price | RM388.00 RM418.00 RM |
| Product SKU | MOBO-ASUS-PRIME-H510M-K |
| Brand | Asus |
| Size (L x W x H) | 31 cm x 31 cm x 9 cm |
| Availability | Pre-Order |
Description
Highlight
- Intel® LGA 1200 Socket : Ready For 11th And 10th Gen Intel® Processors
- Ultrafast Connectivity : PCIe 4.0, 32Gbps M.2 Slot, Intel® 1GB Ethernet And USB 3.2 Gen 1
- Comprehensive Cooling : PCH Heatsink And Fan Xpert
- 5X Protection III : Multiple Hardware Safeguards For All-Round Protection
Specification
| CPU | Intel® Socket LGA1200 For 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** |
| Chipset | H510 |
| Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133MHz Non-ECC, Un-Buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Graphics | 1 x D-Sub |
| Expansion Slots | Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 Slot - Intel® 11th Gen Processors Support PCIe 4.0 x16 - Intel® 10th Gen Processors Support PCIe 3.0 x16 Intel® H510 Chipset 1 x PCIe 3.0 x1 Slot |
| Storage | Intel® H510 Chipset M.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 x4 & SATA Modes) 4 x SATA 6Gb/s Ports * The M.2 Slot Shares Bandwidth With The SATA6G_2 Port. When A Device In SATA Mode Is Installed On The M.2 Slot, The SATA6G_2 Port Cannot Be Used |
| Ethernet | 1 x Intel® 1GB Ethernet |
| USB | 2 x USB 3.2 Gen 1 Ports (2 x Type-A) 4 x USB 2.0 Ports (4 x Type-A) 1 x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 x USB 2.0 Header Supports Additional 2 USB 2.0 Ports |
| Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports : Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192kHz Playback" Audio Features - Audio Shielding - Dedicated Audio PCB Layers * A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output |

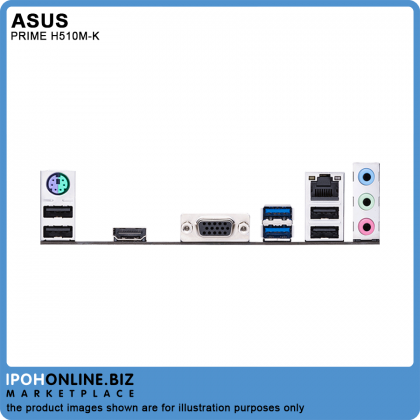

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 Ports (2 x Type-A) 4 x USB 2.0 Ports (4 x Type-A) 1 x D-Sub Port 1 x HDMI™ Port 1 x Intel® I219-V 1GB Ethernet Port 3 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo Port |
| Internal I/O Connectors | Fan And Cooling Related 1 x 4-Pin CPU Fan Header 1 x 4-Pin Chassis Fan Header Power Related 1 x 24-Pin Main Power Connector 1 x 8-Pin +12V Power Connector Storage Related 1 x M.2 Slot (Key M) 4 x SATA 6Gb/s Ports USB 1 x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 1 x USB 2.0 Header Supports Additional 2 USB 2.0 Ports Miscellaneous 1 x RGB Header 1 x Clear CMOS Header 1 x COM Port Header 1 x Front Panel Audio Header (AAFP) 1 x S/PDIF Out Header 1 x Speaker Header 1 x SPI TPM Header (14-1Pin) 1 x 10-1 Pin System Panel Header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum Heatsink Design ASUS Lighting Control - RGB Header |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ Update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-Virus Software (Free Trial Version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128MB Flash ROM, UEFI AMI BIOS |
| Manageability | WOL By PME, PXE |
| Operating System | Windows 10 64bit |
| Form Factor | microATX 22.6cm x 20.3cm |
What In The Box
- 1 x ASUS PRIME H510M-K 11th Gen Intel H510 LGA 1200 DDR4 M.2 HDMI VGA Micro ATX Motherboard
- 1 x I/O Shield
- 1 x M.2 Anchor
- 2 x Sata Cable
- 1 x Support DVD
- 1 x User Manual
Warranty
3 Year Warranty
Local Manufacturer Warranty
