Description
Highlight
- Intel® Socket LGA 1200 For 11th & 10th Gen Intel® Core™, Pentium® Gold And Celeron® Processors
- 4xDIMM, Max. 128GB, DDR4 5133 (O.C.) Mhz Non-ECC, Un-Buffered Memory
- Intel® Z590 Chipset
- ATX, 12 Inch x 9.6 Inch
Specification
| CPU | Intel® Socket LGA1200 For 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Z590 |
| Memory | Memory Channels : 4DDR4 (Dual Channel) Max Memory Size : 128GB DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz MHz Non-ECC, Un-Buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 Processors Support 2933/2800/2666/2400/2133 Natively, Others Will Run At The Maximum Transfer Rate Of DDR4 2666MHz * 11th Gen Intel® Core™ Processors Support 3200/2933/2800/2666/2400/2133 Natively |
| Graphics | For Intel® 11th Core™ i5/i7/i9 Processors, Support DisplayPort 1.4 With Max. Resolution Of 5120x2880 @60Hz, Others Would Only Support DisplayPort 1.4 With Max. Resolution Of 4096x2304@60Hz For Intel® 11th Core™ i5/i7/i9 Processors, Support HDMI™ 2.0 With Max. Resolution Of 4K@60Hz, Others Would Only Support HDMI™ 1.4 With Max. Resolution Of 4K@30Hz |
| Expansion Slots | 2xPCIe 4.0/3.0x16 (x16, x8/x4) + 1xPCIe 3.0x16 (Max. x4) Intel® 11th & 10th Gen Processors 2xPCIe 4.0/3.0x16 Slot(s) - Intel® 11th Support PCIe 4.0x16 Or x8/x4 Mode(s) - Intel® 10th Processors Support PCIe 3.0x16 Or x8/x4 Mode(s) Intel® Z590 Chipset 1 x PCIe 3.0x16 Slot (Supports x4 Mode) |
| Storage | Intel® 11th & 10th Gen Processors* M.2_1 Slot (Key M), Type 2242/2260/2280/22110 - Only Intel® 11th Core™ Processors Support PCIe 4.0x4 Mode, This Slot Will Be Disabled For Other CPUs M.2_2 Slot (Key M), Type 2242/2260/2280/22110 - Intel® 11th Processors Support PCIe 4.0x4 Mode - Intel® 10th Processors Support PCIe 3.0x4 Mode Intel® Z590 Chipset M.2_3 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 3.0x4 Mode) M.2_4 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0x4 & SATA Modes)* 6 x SATA 6Gb/s Ports Raid Function In Intel® Rapid Storage Technology Is Available With Either 1. Intel® SSDs Installed In Both CPU-Attached And PCH-Attached Slots, Or 2. Any Other 3rd Party SSDs Installed In PCH-Attached Slots To Enable Intel® Optane™ Memory (Hybrid Storage Device), It Must Be Installed In PCH-Attached Slots With Intel® Rapid Storage Technology. |
| Wireless & Bluetooth | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 |
| USB | Rear USB : Total 10 Ports 1xUSB 3.2 Gen 2x2 Port (1xUSB Type-C®) 3xUSB 3.2 Gen 2 Ports (2xType-A + 1xUSB Type-C®) 4xUSB 3.2 Gen 1 Ports (4xType-A) 2xUSB 2.0 Ports (2xType-A) Front USB : Total 7 Ports 1xUSB 3.2 Gen 2 Connector (Supports USB Type-C®) 1xUSB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2xUSB 2.0 Headers Support Additional 4 USB 2.0 Ports |
| Audio | Audio Features SupremeFX Shielding Technology ALC4080 + Savitech SV3H712 AMP Gold-Plated Audio Jacks Rear Optical S/PDIF Out Port Premium Japanese Audio Capacitors Audio Cover |

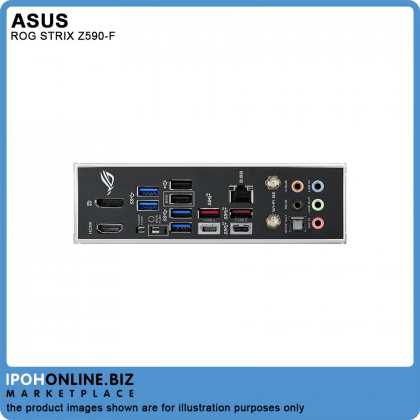

| Back Panel I/O Ports | 1xUSB 3.2 Gen 2x2 Port (1xUSB Type-C®) 3xUSB 3.2 Gen 2 Ports (2xType-A, 1xUSB Type-C®) 4xUSB 3.2 Gen 1 Ports (4xType-A) 2xUSB 2.0 Ports (2xType-A) 1xHDMI™ Port 1xDisplayPort 1xIntel® Wi-Fi 6E 1xIntel® I225-V 2.5GB Ethernet 5xGold-Plated Audio Jacks 1xOptical S/PDIF Out Port 1xBIOS FlashBack™ Button 1xClear CMOS Button |
| Internal I/O Connectors | Fan And Cooling Related 1x4-Pin CPU Fan Header 1x4-Pin CPU OPT Fan Header 1x4-Pin AIO Pump Header 3x4-Pin Chassis Fan Headers 1xVRM Heatsink Fan Header 1xW_PUMP+ Header Power Related 1x24-Pin Main Power Connector 1x8-Pin+12V Power Connector 1x4-Pin+12V Power Connector Storage Related 4xM.2 Slots (Key M) 6xSATA 6Gb/s Ports USB 1xUSB 3.2 Gen 2 Connector (Supports USB Type-C®) 1xUSB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2xUSB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 3xAURA Addressable Gen 2 Headers 1xAURA RGB Header 1xCPU Over Voltage Jumper 1xFront Panel Audio Header (AAFP) 1xSPI TPM Header (14-1Pin) 1x20-3 Pin System Panel Header With Chassis Intrude Function 1xThermal Sensor Header 1xThunderbolt Header |
| BIOS | 256MB Flash ROM, UEFI AMI BIOS |
| Manageability | WOL By PME, PXE |
| Operating System | Windows 10 64Bit |
| Form Factor | ATX 30.5cmx24.4cm |
What In The Box
- 1 x ASUS ROG STRIX Z590-F 11th & 10th Gen Intel Z590 LGA 1200 DDR4 5333 M.2 HDMI DP ATX Gaming WiFi Motherboard
- 1 x ASUS 2x2 Dual-Band Wi-Fi Moving Antennas
- 4 x SATA 6Gb/s Cables
- 1 x Fan Holder
- 1 x M.2 Q-Latch Package
- 2 x M.2 Rubber Package
- 1 x Cable Tie
- 1 x ROG Key Chain
- 1 x Support DVD
- 1 x ROG STRIX Stickers
- 1 x ROG STRIX Thank You Card
- 1 x User Manual
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
