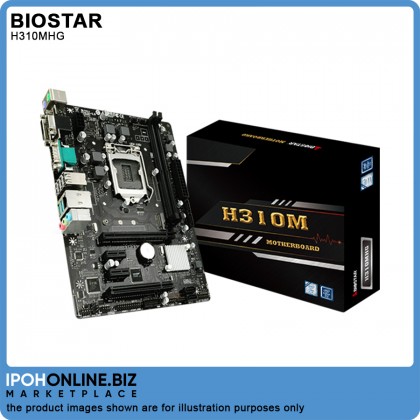

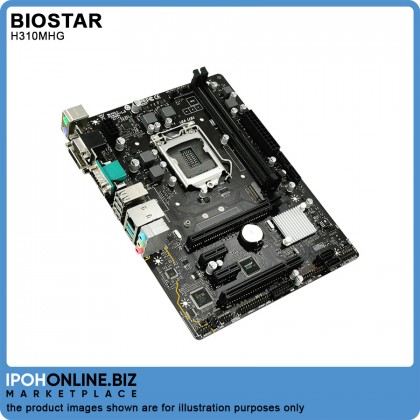

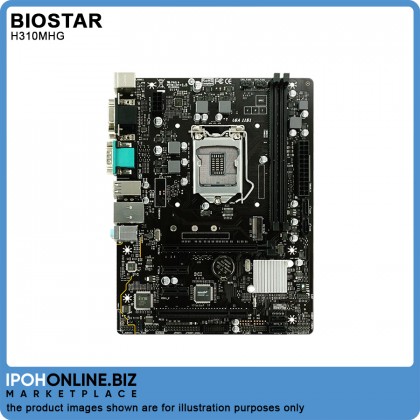

BIOSTAR H310MHG INTEL H310 1151 8th 9th Gen DDR4 M.2 HDMI DVI VGA LPT MICRO ATX Motherboard
| Price | RM287.00 RM459.00 RM |
| Product SKU | MOBO-BIOSTAR-H310MHG |
| Brand | Biostar |
| Size (L x W x H) | 30 cm x 25 cm x 10 cm |
| Availability | Out Of Stock |
Description
Highlight
- Supports 8th & 9th Generation Intel® Core™ Processor
- Intel H310 Single Chip Architecture
- Support Dual Channel DDR4 2666/2400/2133/1866MHz
- Support HDMI 4K Resolution
- Support GbE LAN
- Support USB 3.2 Gen1
- 1 x COM Port Header
- 1 x Printer (Parallel) Port Header
Specification
| Chipset | Intel H310 |
| CPU Support | 9th Gen Intel® Core™ i9 LGA 1151 Processor 9th Gen Intel® Core™ i5 LGA 1151 Processor 9th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Core™ i7 LGA 1151 Processor 8th Gen Intel® Core™ i5 LGA 1151 Processor 8th Gen Intel® Core™ i3 LGA 1151 Processor 8th Gen Intel® Pentium® LGA 1151 Processor 8th Gen Intel® Celeron® LGA 1151 Processor Maximum CPU TDP (Thermal Design Power) : 95Watt |
| Memory | Support Dual Channel DDR4 2666/2400/2133/1866MHz 2 x DDR4 DIMM Memory Slot Max. Supports Up To 32GB Memory |
| Integrated Video | Supports DX12 Supports HDCP |
| Storage | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Connector (10Gb/s) : Supports PCI-E (10Gb/s) & SATA III (6Gb/s) SSD |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| Audio Codec | Realtek ALC887 7.1-Channel HD Audio Support HD Audio |
| USB | 4 x USB 3.2 Gen1 Port (2 On Rear I/Os And 2 Via Internal Header) 6 x USB 2.0 Port (4 On Rear I/Os And 2 Via Internal Header) |
| Expansion Slot | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slot 1 x PCI Slot |
| Rear I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Port 1 x COM Port 1 x HDMI Connector 1 x DVI-D Connector 1 x VGA Port 1 x LAN Port 3 x Audio Jacks |
| Internal I/O | 1 x USB 3.2 Gen1 Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 x USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 4 x SATA III Connector (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 2 x System Fan Connector 1 x Chassis Instruction Header 1 x TPM Header 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header 1 x Printer Port Header |
| H/W Monitoring | CPU/System Temperature Monitoring CPU/System Fan Monitoring Smart/Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| Dimension | Micro ATX Form Factor Dimension : 24.4cm x 18.8cm (W x L) |
| OS Support | Supports Windows 10 Windows 7 |
| Bundle Software | BullGuard |
| Accessories | 2 x SATA Cable 1 x I/O Shield 1 x Fully Setup Driver CD 1 x Quick Guide |
| Features | BIOS-Flasher |
What In The Box
- 1 x BIOSTAR H310MHG INTEL H310 1151 8th 9th Gen DDR4 M.2 HDMI DVI VGA LPT MICRO ATX Motherboard
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x Fully Setup Driver CD
- 1 x Quick Guide
Warranty
3 Year Limited Warranty
Local Manufacturer Warranty
