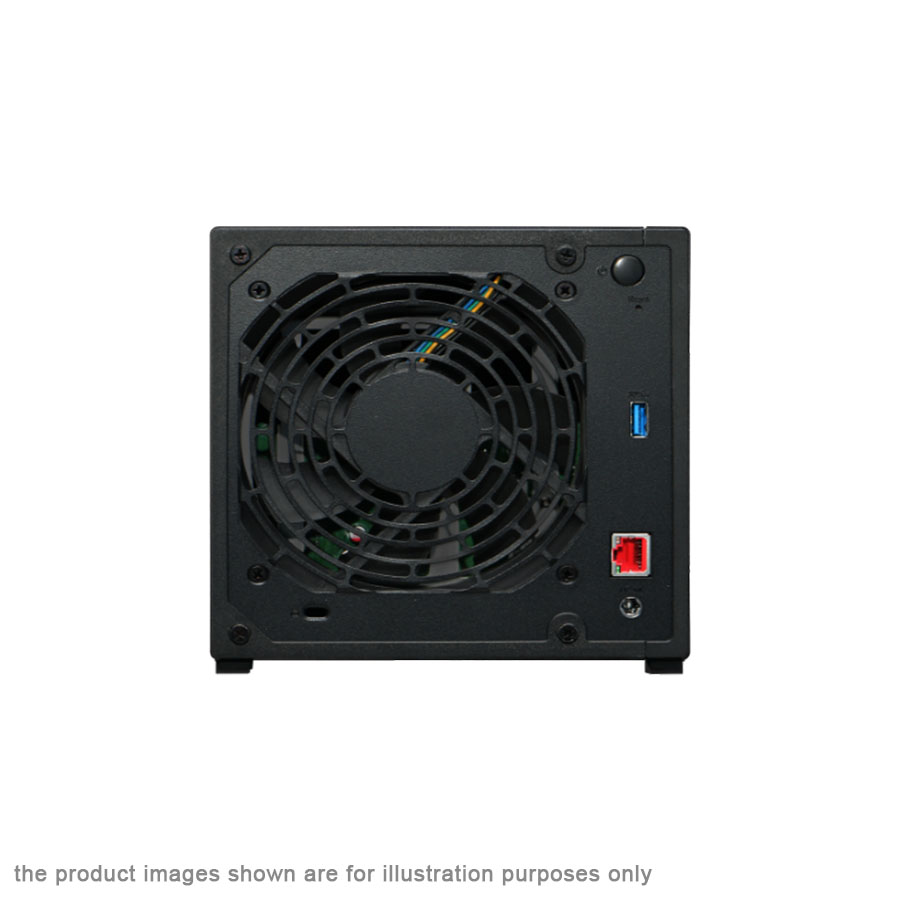

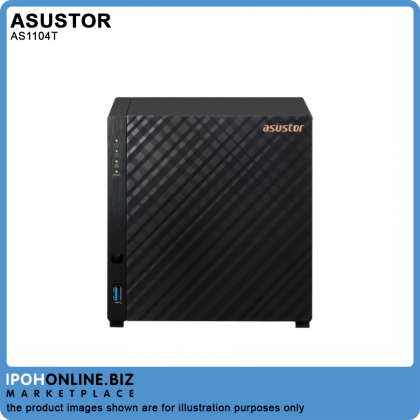

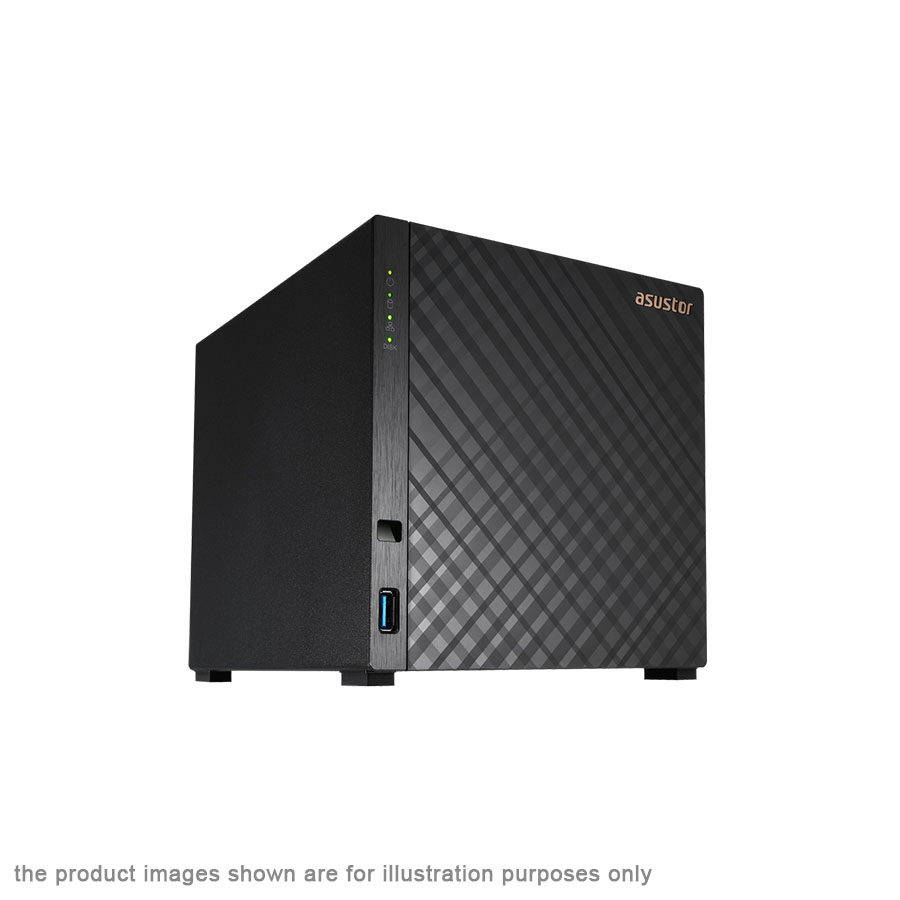

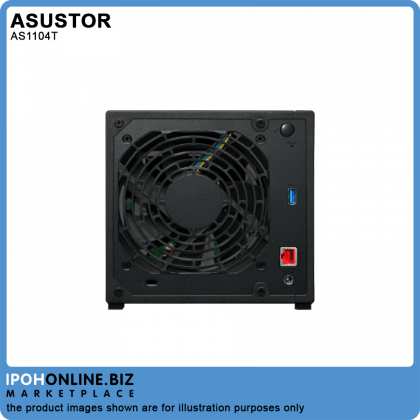

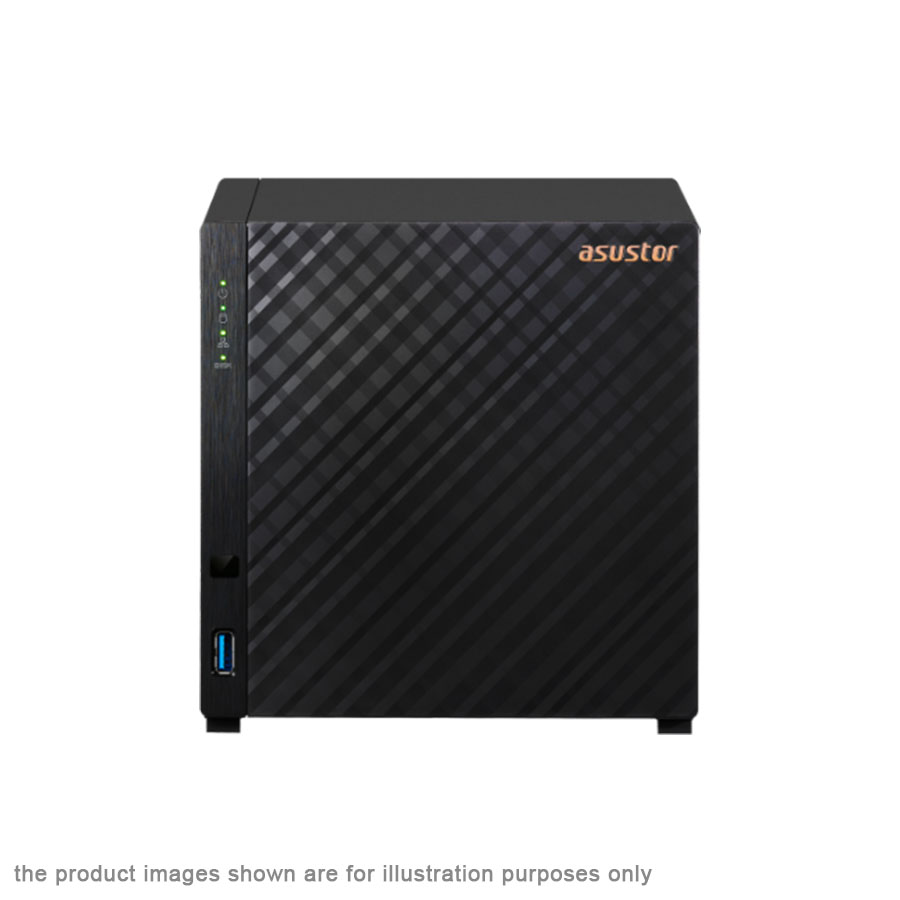

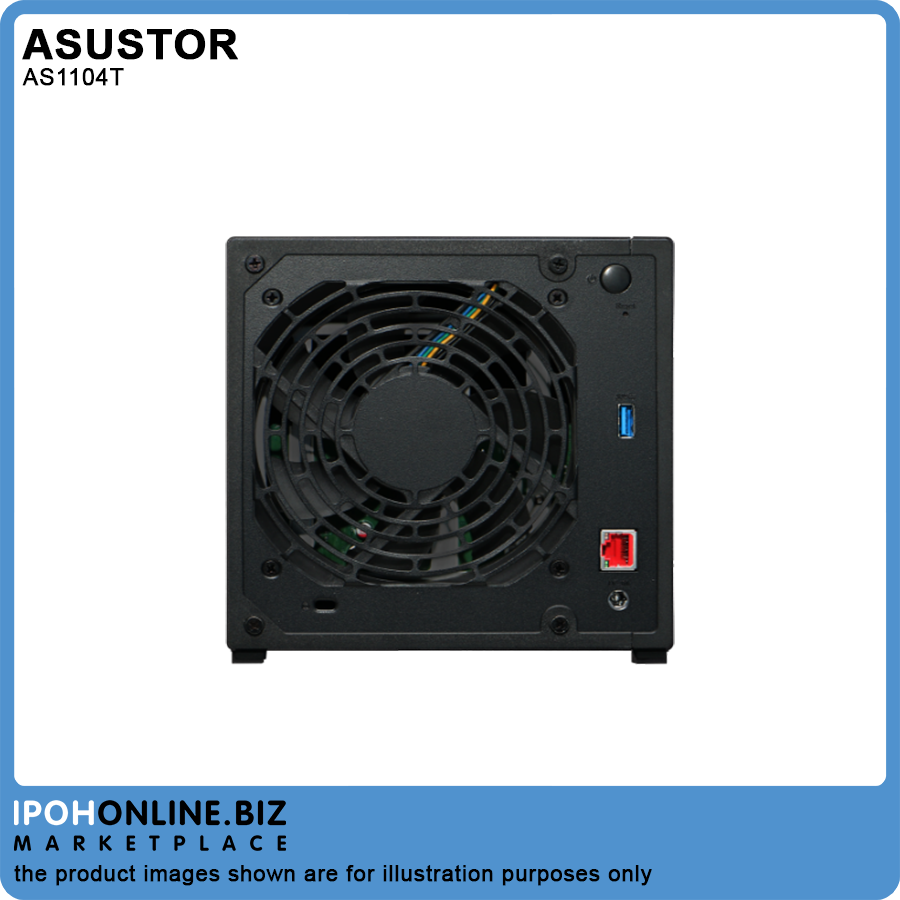

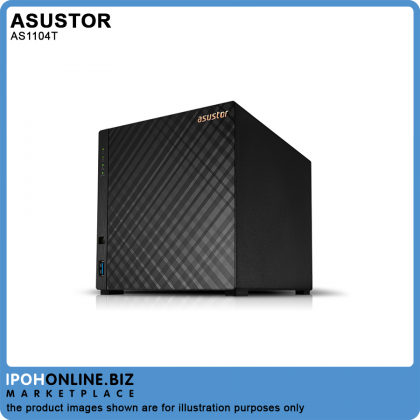

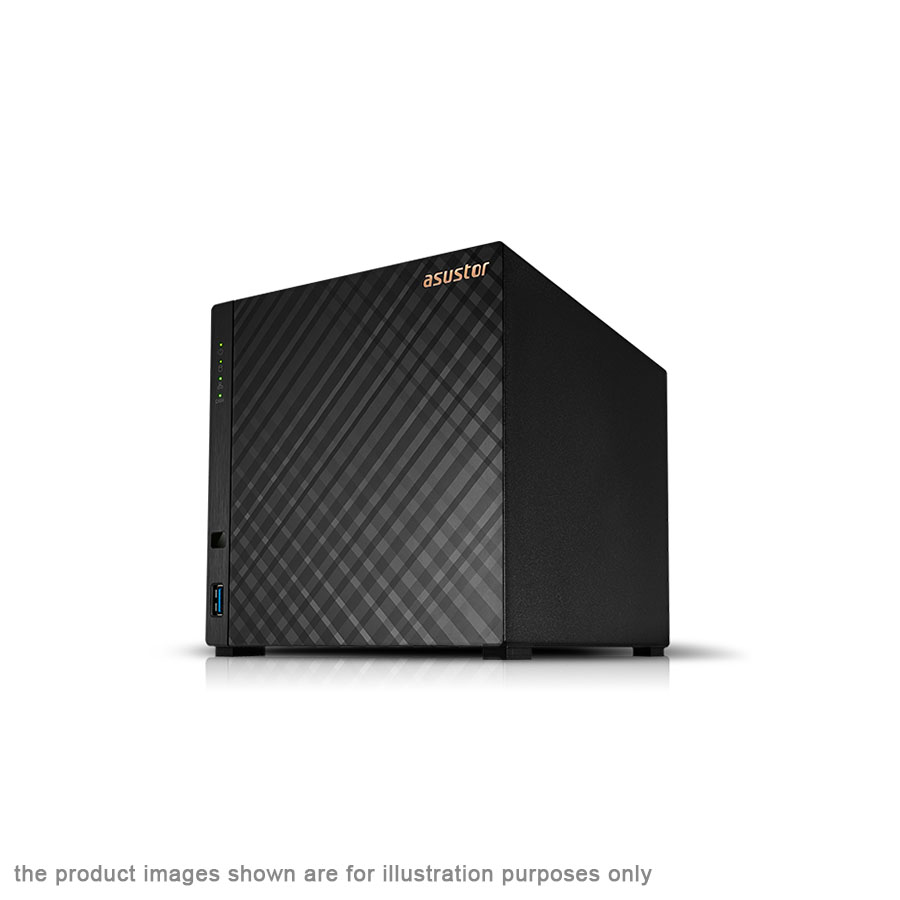

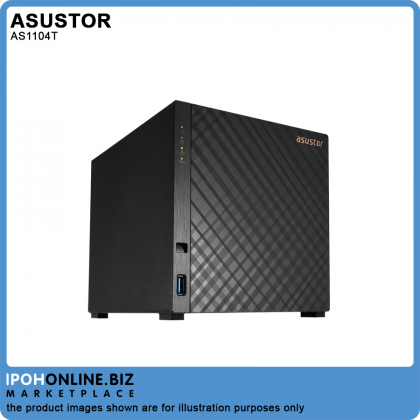

Asustor AS1104T / QC 1.4GHz/ 1GB DDR4 / 4 Bay / 1 x 2.5G Lan Port/2 USB 3 NAS Storage
Price RM1,348.00 RM1,786.00 RM
Brand Asustor
Size (L x W x H) 35 cm x 25 cm x 28 cm
Availability Pre-Order

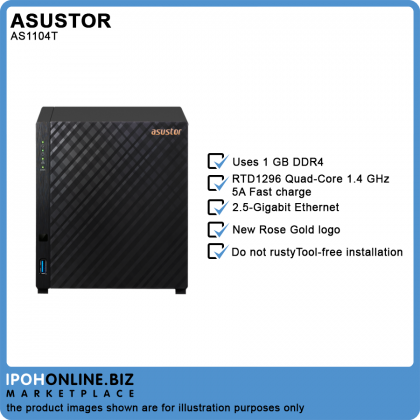

  • Realtek RTD1296 Quad-Core 1.4 GHz CPU
  • Uses 1 GB DDR4 – 40% more efficient
  • Superfast 2.5-Gigabit Ethernet
  • Supports Wake on LAN and Wake on WAN
  • New Rose Gold logo
  • Tool-free installation


CPU Model Realtek RTD1296
CPU Architecture ARM64 64-bit
CPU Frequency Quad-Core 1.4GHz
Memory 1GB DDR4
Memory Expandable up to not expandable
Flash Memory 8GB eMMC
Drive Bays 4
Compatible Drive Type 3.5" SATA HDD
Maximum Drive Bays with Expansion Unit 16
External Ports
Expansion USB 3.2 Gen 1 x 2
Network 2.5 Gigabit Ethernet (2.5G/1G/100M) x 1
HDMI Output N/A
Hardware Others
System Fan 120 mm x 1
Power Supply Unit / Adapter 90W x1
Input Power Voltage 100V to 240V AC
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Warranty 3 Years
Power Consumption 22.8W (Operation) 9.41W (Disk Hibernation)
Noise Level 19.7dB (HDD idle)
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH
Size and Weight
Size 165(H) x 164(W) x 218(D) mm
Weight 1.57 kg / 3.45 lbs
General Specifications
Supported OS Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
UNIX, Linux, and BSD
Supported Languages Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar
Supported Browsers Firefox
Microsoft Edge
Network Protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission TCP/IP (IPv4 & IPv6)
Link Aggregation: 0
Jumbo Frame (MTU)
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW)
File Management & Sharing
File System Internal Disk: EXT4
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
File Explorer Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback
Network Recycle Bin Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
Deletion Settings
Storage management
RAID Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration
iSCSI/IP-SAN Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations
Disk Management     Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans
Access & Security
Access Control Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows’ 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
System Administration Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/70/71 Series
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.
Network Defender Auto black list
Trusted list
Black/White list
Backup Solutions Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
EZ Sync
Snapshots iSCSI Snapshots
Support up to 256 snapshots
Software Others
ASUSTOR Hightlight System Migration
EZ Connect
2-way Backup
Task Monitor
Eco-Friendly Design Auto-Standby for Both Internal and External Disks
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart
Energy Control Configurable Disk Hibernation Wait Time

What In The Box

  • 1 x Asustor AS1104T / QC 1.4GHz/ 1GB DDR4 / 4 Bay / 1 x 2.5G Lan Port/2 USB 3 NAS Storage
  • 1 x AC Power Cord
  • 1 x Ac Power Adapter
  • 1 x RJ-45 LAN Cable
  • 16 x Thumb Screw

3 Year Limited Warranty
Local Manufacturer Warranty
Warranty Policy : Please Complete And Submit Product Warranty Registration Form Within 14 Days Of Purchase To Ensure Continuous Coverage. Lazada Warranty Registration http://lwr.accessglobal.info Email Us At [email protected]
