- 80 PLUS® Bronze certified — up to 85% efficient.
- Compliant Intel ATX12V v 2.31.
- Double-Layer EMI Filter protects from electromagnetic interference & restrains noise.
- 90-264Vac wide voltage input, ensure smooth usage in any place of the world
- 120mm silent fan with temperature control function.
- The longer cable design supports cable management perfectly.

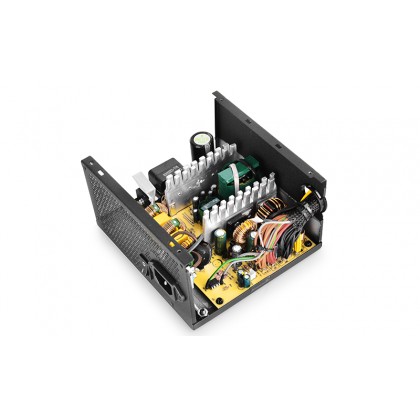

- High quality capacitors, ensure the stable output performance
- Energy saving design, consume <0.3w in its off-mode, compliant Erp standard
- Compliant Multi-Way SLI / CrossFire Multi-Core CPUs.

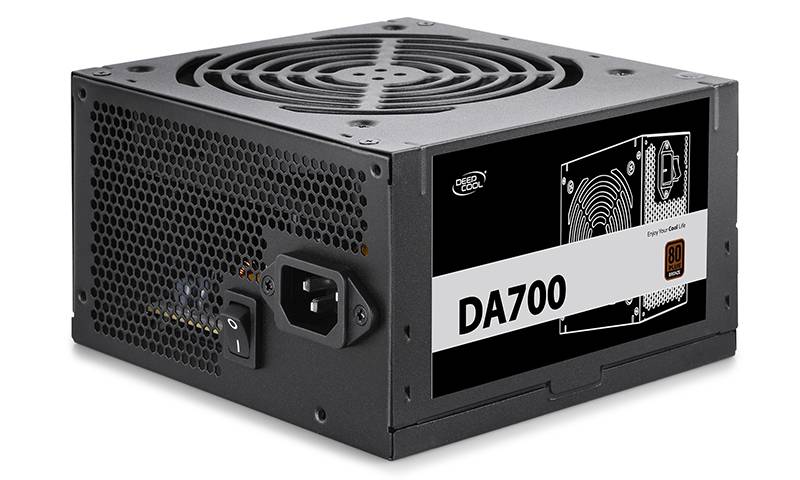

DA 700 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operating cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.
80 PLUS BRONZE
80 PLUS Bronze certified, providing a high energy efficiency performance of up to 85%. Click here to view the certification.

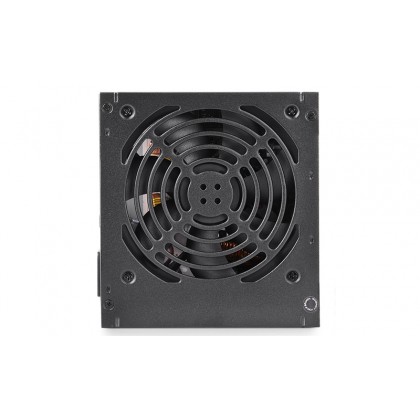

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.
Longer Cable Design
Longer cable design for enhancing cable management.
Specifications
| Model | DA700 |
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS Bronze |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 700W |
| Input Voltage | 100~240V |
| Input Current | 10A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm Silent Fan |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP / UVP / SCP / OPP / OTP |
| Operation Temperature | 0~40°C |
| Regulatory | CE / FCC / CCC / CB / EAC / TUV |
| MTBF | 120,000 Hours |

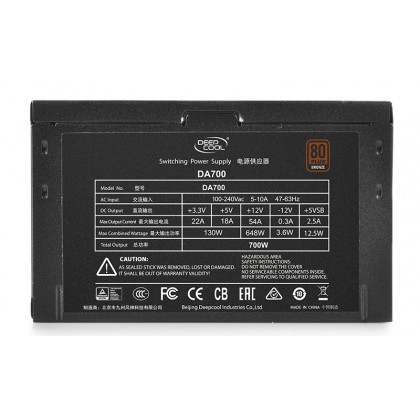

Output
| AC Input | Voltage | Current | Frequency | ||
| 100-240V | 10.0A | 47/63Hz | |||
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Current (Max) | 22A | 18A | 54A | 0.3A | 2.5A |
| Output (Max) | 130W | 648W | 3.6W | 12.5W | |
| Total Output | 700W | ||||

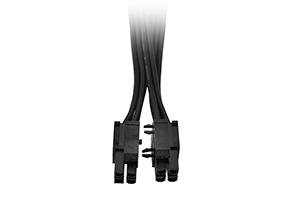

Cables
 |
Mainboard (24Pin) 1 |
 |
EPS ATX12V (4+4Pin) 1 |
 |
PCI-E (6+2Pin) 4 |
 |
SATA 5 |
 |
Peripheral (Big 4Pin) 4 |
- 1 X Deepcool DA700 80 Plus Bronze Certified 700W Power Supply PSU with Intelligent Fan
