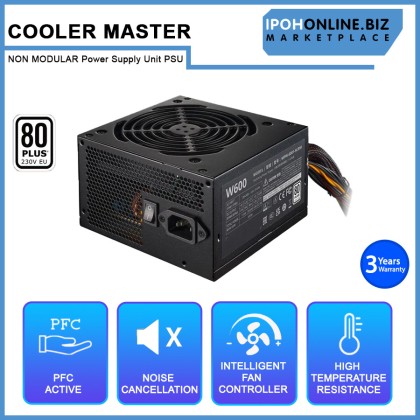

COOLER MASTER ELITE NEX W600 (600W) White 80 PLUS 230V NON MODULAR Power Supply Unit PSU
| Price | RM245.00 RM299.00 RM |
| Product SKU | PSU-CM-W600 |
| Brand | Cooler Master |
| Size (L x W x H) | 30 cm x 25 cm x 15 cm |
| Availability | 5 |
| Quantity |
|
Description
Highlight

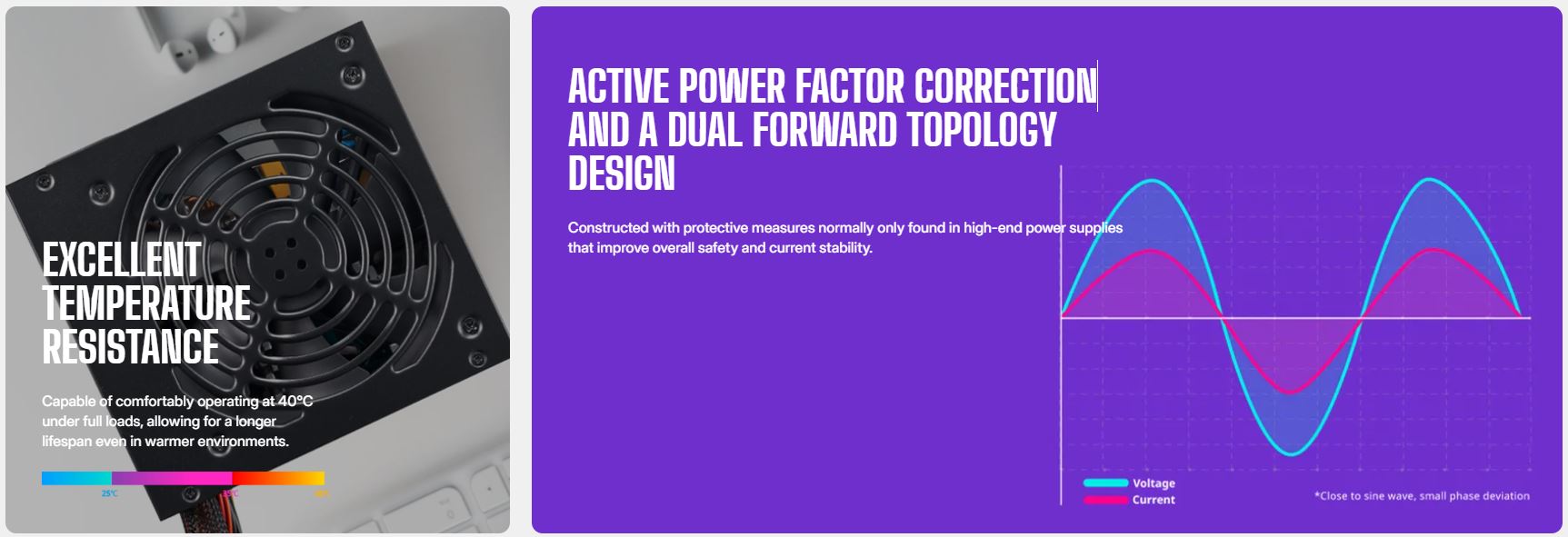

- Active PFC and a dual forward topology design
- Excellent temperature resistance

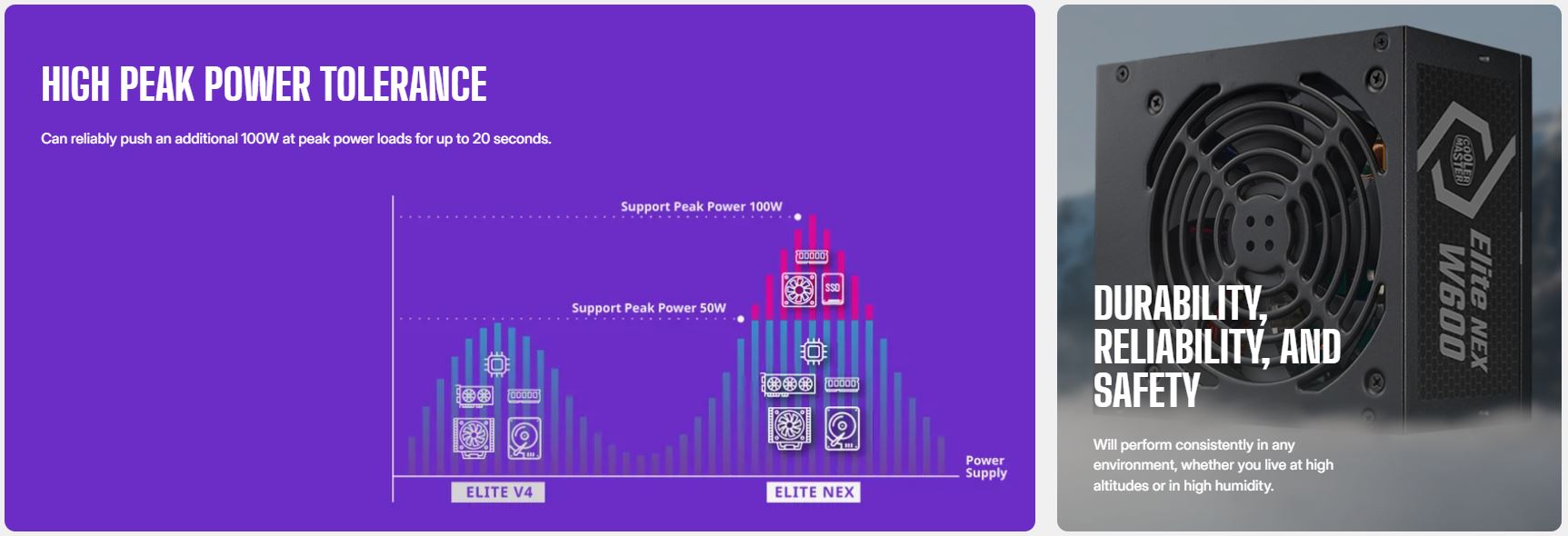

- High peak power tolerance
- Durability, reliability, and safety

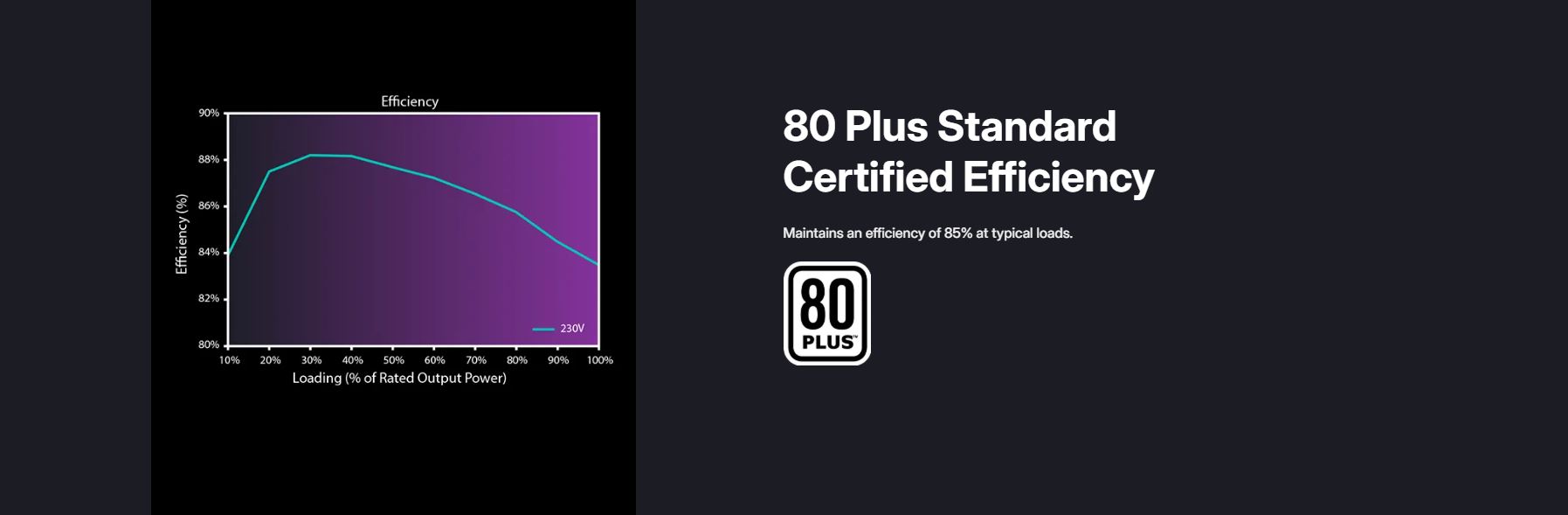

- 80 Plus standard certified efficiency
Specifications
| Model | MPW-6001-ACBW-B |
| ATX Version | ATX 12V Ver. 2.41 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 4.5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120mm |
| Fan Bearing | Sleeve Fan |
| Efficiency | ≥ 85% @ Typical Load |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 500 ms |
| Hold Up Time | ≥10ms at 100% load |
| MTBF | >100,000 Hours |
| Protections | OVP / OPP / SCP / UVP / OTP / Inrush Protection |
| Regulatory | TUV, cTUVus, CE, FCC, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| SATA Connectors | 5 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 2 |
| Series | Elite Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus Efficiency | White |
| Form Factor | ATX |
| Watts | 600W |
| AC Input | 200-240V~, 4.5A, 47-63Hz | ||||
| DC Output | +5V | +3.3V | +12V | -12V | +5V sb |
| 17A | 19A | 46A | 0.3A | 2.5A | |
| Total Power | 110W | 552W | 3.6W | 12.5W | |
| 600W | |||||
What's in the box
- 1 x COOLER MASTER ELITE NEX W600 (600W) WHITE 80 PLUS 230V NON MODULAR POWER SUPPLY UNIT PSU
Warranty
3 Years Warranty
Local Manufacturer Warranty
