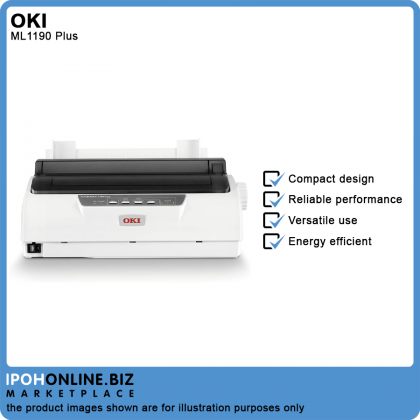

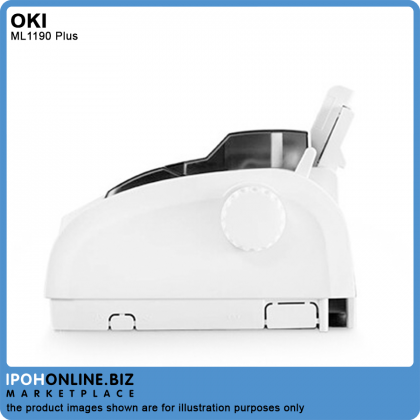

OKI ML1190 Plus Dot Matrix Printer

Price	RM698.00 RM798.00 RM
Product SKU	PRI-OKI-ML1190
Brand	OKI
Size (L x W x H)	45 cm x 34 cm x 26 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Compact design
Reliable performance
Versatile use
Energy efficient

Specification

Printing Method	Serial Impact Dot Matrix Method
Print Head	24 Pin
Columns	80 (10cpi); 160 (maximum in compression mode)
Dot Wire Diameter	0.2 mm
Print Direction	Bidirectional/Unidirectional printing, Short line-seeking printing
Graphic Resolution	Max. 360(H) x 360(V) dpi
Print Speed	High Speed Draft : 333 cps, Utility : 250 cps, Letter Quality : 83 cps
Weight	4.2kg approx
Print Head life	Approx. 300 million strokes/ pin
Reliability	MTBF: 10,000 hours (duty cycle 25%, page density 35%)
Line Feed Pitch	4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.42mm(n/60 ") (n=0-127), n x 0.35mm(n/72 ") (n=1-85), n x 0.14mm(n/180 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255), n x 0.07mm(n/360 ") (n=0-255)
Feed Speed	4.3 inches per second
Feed Rate	4.23mm(1/6”) line feed: Approx. 47 milliseconds
Paper Route	Tractor feeder (Rear), Tractor feeder (Bottom), Manual (Top)
Character Pitch	High Speed Draft : 10.0 cpi, 12.0 cpi Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width	80 characters/line at ANK 10 cpi
Interface	IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), RS-232C (25pin)
Emulation	ESC/P2 emulation, IBM ProPrinter emulation, IBM AGM emulation
Supported OS	Windows Vista, Windows Vista x64, Windows Server 2003, Windows Server 2003 x64
Receive Buffer	Max. 128KB
Resident Font	Utility, LQ Courier, LQ Roman, LQ Swiss, LQ Swiss Bold, LQ Orator, LQ Prestige, LQ Gothic, OCR-A, OCR-B, High Speed Draft, Scalable Roman, Scalable Courier, Scalable Swiss
Font Style	Double Width, Double Height, Enhanced, Emphasized, Bold, Italics, Over score, Outline, Shadow, Underline
1-D Barcode	UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET
Paper Type	Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment	Manual
Paper Size	Continuous paper: Width 76.2-254.0mm x Length 76.2-355.6mm Single part paper: Width 100.0-257.0mm x Length 100.0-356.0mm Multi part paper: Width 76.2-254.0mm x Length 76.2-355.6mm
Paper Weight	Continuous paper : 52 - 82 gsm Single part paper : 52 - 90 gsm Multi part paper : 40 - 58 gsm
First printable line (from top of page)	Continuous (multi-parts): 2.12mm; Cut sheet (single sheet): 2.12mm
Paper feeding	Automatic sheet loading, Short paper tear-off, Auto park feature, Top/Rear/Bottom path, Rear push tractor, Top pull tractor, Friction fed cut sheet
Copy Capability	Normal print mode: original + 4sheets(Total Thickness < 0.33mm)
Dimensions(WxDxH)	349 x 232 x 150 mm
Operating Environment	Operating: 5 - 35 °C, 20 - 80 %RH Storage: -10 - 50 °C, 5 - 95 %RH No condensation
Power Source	Single phase 220 - 240 VAC ±10%, 50/60 Hz ±2%
Power Consumption	Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 41W) Idle: Approx. 6W Power Save: < 1.3W
Noise Level	Operating :Approx. 53 dBA
MTBF(Mean Time Before Failure)	10,000 hours
Ribbon Life	Black : 4 million characters
In the Box	Ribbon cartridge, Power cable, CD-ROM, Others
Product order numbers	43516924
