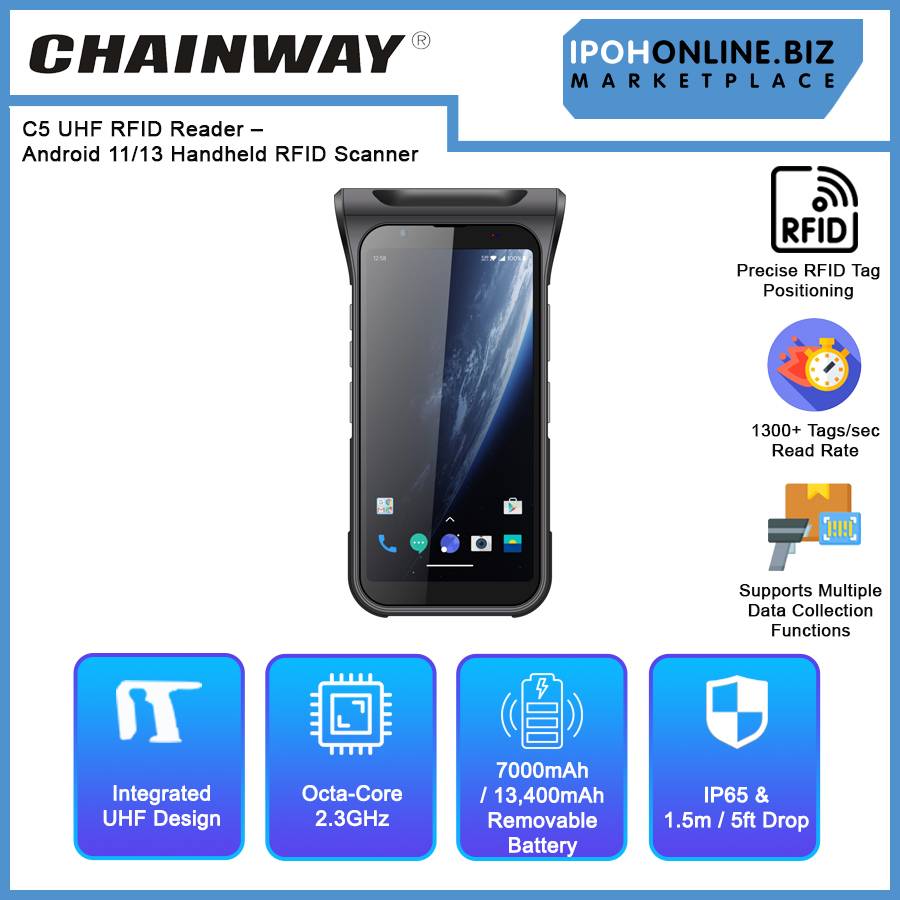

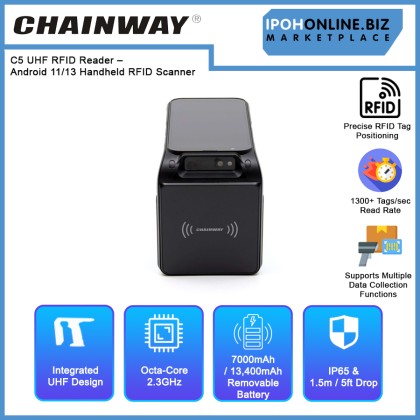

Chainway C5 UHF RFID Reader – Android 11/13 Handheld RFID Scanner

RM0.00 RM

Chainway C5 UHF RFID Reader – Android 11/13 Handheld RFID Scanner

Price	RM0.00 RM
Product SKU	sca-chainway-c5
Brand	OEM
Availability	Pre-Order

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Integrated UHF Design - Fast & convenient RFID tag scanning
Octa-Core 2.3GHz - Smooth & powerful performance
5" / 6" Large Screen Options - Flexible screen size for different needs
7000mAh / 13,400mAh Removable Battery - Long-lasting power for daily operations
IP65 & 1.5m / 5ft Drop - Durable protection for demanding environments
1300+ Tags/sec Read Rate - Scan large quantities of tags quickly
Precise RFID Tag Positioning - Quickly locate and identify specific RFID tags
Barcode, NFC, PSAM And More - Supports multiple data collection functions



Features

Integrated UHF Design - Fast & convenient RFID tag scanning
Octa-Core 2.3GHz - Smooth & powerful performance
5" / 6" Large Screen Options - Flexible screen size for different needs
7000mAh / 13,400mAh Removable Battery - Long-lasting power for daily operations
IP65 & 1.5m / 5ft Drop - Durable protection for demanding environments
1300+ Tags/sec Read Rate - Scan large quantities of tags quickly
Precise RFID Tag Positioning - Quickly locate and identify specific RFID tags
Barcode, NFC, PSAM And More - Supports multiple data collection functions

Specification

Physical Characteristics
Dimensions	178.8 × 96.5 × 128.4 mm / 7.03 × 3.80 × 5.06 in
Weight	626g / 22.08oz (device with battery)
Display	5-inch (Fingerprint): 1280 × 720 / 6-inch: 2160 × 1080
Touch Panel	Multi-touch; supports gloves & wet hands; Corning Gorilla Glass
Power	7000mAh / 13,400mAh removable pistol battery; 100mAh backup battery for hot swap
Notification	Sound, LED indicator & vibrator
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Card Slot	2× PSAM (optional); 1× Nano SIM; 1× Nano SIM / TF card
Audio	1 microphone, 1 speaker & 1 receiver
Keypad	Power key, 2 scan keys, user-defined key & 2 volume keys
Sensors	Gravity, proximity & light sensors; geomagnetic & gyroscope optional
Communication
WLAN	802.11 a/b/g/n/ac, 2.4G/5G dual-band, 2×2 MIMO (optional)
WWAN	2G / 3G / 4G cellular connectivity
Bluetooth	Bluetooth 5.0
VoLTE	Supported
GNSS	GPS / AGPS, GLONASS, BeiDou & Galileo
Developing Environment
Operating System	Android 11/13, upgradable to Android 16
SDK	Chainway Software Development Kit
Language	Java
Tools	Eclipse / Android Studio
Performance
CPU	Octa-core, 2.3GHz
RAM + ROM	4GB + 128GB / 4GB + 64GB (optional)
Expansion	Up to 512GB Micro SD / TF card
User Environment
Operating Temperature	-20°C to 50°C / 4°F to 122°F
Storage Temperature	-40°C to 70°C / -40°F to 158°F
Humidity	5% RH – 95% RH (non-condensing)
Drop Specification	Multiple 1.5m / 4.9ft drops onto concrete
Tumble Specification	1000 × 0.5m / 1.64ft falls
Sealing	IP65
ESD	±15KV air / ±8KV conductive discharge
Barcode Scanning
2D Imager Scanner	CM60 / Zebra SE4710 (optional)
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, QR Code, DataMatrix, Micro QR, Aztec, MaxiCode, Postal Codes, etc.
UHF RFID
Engine	Based on Impinj E Series chips
Frequency	865–868MHz / 920–925MHz / 902–928MHz
Impinj Gen2X	Supported
Protocol	EPCglobal Gen 2 (ISO18000-6C)
Output Power	1W / 30dBm, adjustable +5dBm to +30dBm; 2W optional
Fastest Read Rate	1,300+ tags/sec
Max Read Range	Up to 30–33m, depending on tag & environment
Fingerprint Recognition
Fingerprint	TLK1NC02 (optional)
Camera
Front Camera	5MP
Rear Camera	13MP autofocus with flash
NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 & Impinj Protected Mode
Chips	M1 card (S50/S70), CPU card, NFC tags, etc.
Range	2–4cm
Note	NFC function is optional
