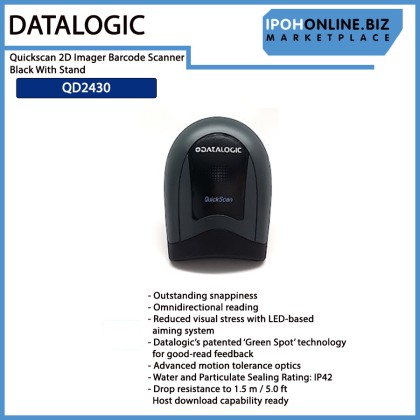

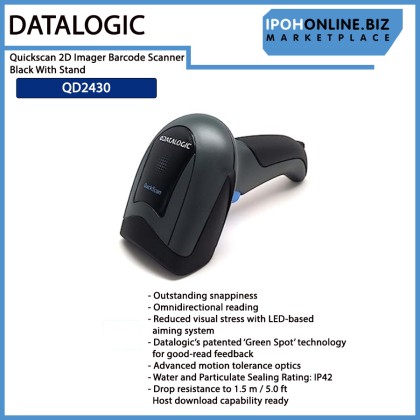

Name: Datalogic QD2430 Quickscan 2D Imager Barcode Scanner Black With Stand and USB Cable 2M
Brand: Datalogic
SKU: SCA-DATALOGIC-QD2430
Price: 789.00 MYR
Availability: OutOfStock

Datalogic QD2430 Quickscan 2D Imager Barcode Scanner Black With Stand and USB Cable 2M

RM789.00 RM899.00 RM

Datalogic QD2430 Quickscan 2D Imager Barcode Scanner Black With Stand and USB Cable 2M

Price	RM789.00 RM899.00 RM
Product SKU	SCA-DATALOGIC-QD2430
Brand	Datalogic
Size (L x W x H)	25 cm x 13 cm x 10 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Outstanding snappiness
Omnidirectional reading
Reduced visual stress with LED-based aiming system
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Advanced motion tolerance optics
Water and Particulate Sealing Rating: IP42
Drop resistance to 1.5 m / 5.0 ft
Host download capability ready



Overview

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

Specifications

Technical Information
Connectivity Technology	Cable
Scanning Capability	1D 2D
Barcode Linear Supported:	1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. 2D Codes: Aztec Code Aztec Mesas Data Matrix MaxiCode QR Code Micro QR Code China Han Xin Code Postal Codes: Australian Post British Post Canadian Post China Post Japanese Post KIX Post Korea Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Image Sensor Type: Imager Maximum Scan Resolution: 4 mil Depth of Field: 0.2" - 5.9"@5mil - Code 39 0.2" - 13.8"@13mil - EAN/UPCA 0.4" - 5.1"@6.6mil - PDF417 0.4" - 5.1"@10mil - Data Matrix Scan Pattern: Omni-directional Scanning Distance: 13.78" Cable Type Included: USB Reading Angle (Skew): 360° Reading Angle (Pitch): 65° Reading Angle (Roll): 60° Motion Tolerance: 25 in/s Maximum Ambient Light: 86000 lux Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. Minimum Print Contrast: 25% Minimum Element Resolution (Code 39): 5 mil Minimum Element Resolution (DataMatrix): 10 mil Minimum Element Resolution (PDF417): 6.6 mil
Interfaces/Ports
Host Interface:	Keyboard Wedge Serial USB
Physical Characteristics
Color:	Black
Height:	6.4"
Width	1.6"
Depth	3.6"
Weight (Approximate)	5.11 oz
Miscellaneous
Additional Information	USB Cable separate
Application/Usage	Industrial Retail

What's in the box

1 x Datalogic QD2430 Quickscan 2D Imager Barcode Scanner Black With Stand and USB Cable 2M

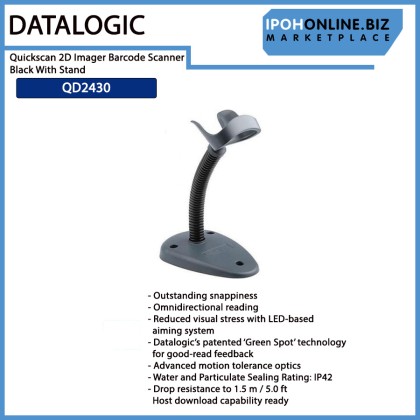

1 x STD-QD24-BK Quickscan Gooseneck Stand

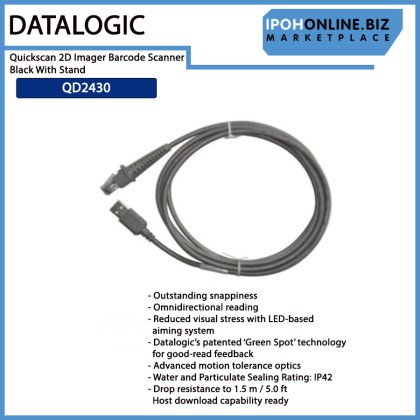

1 x USB Cable Type A Enhanced Straight Power Off Terminal 2M-90A052065

Warranty
1 Year Warranty
Local Manufacturer Warranty
