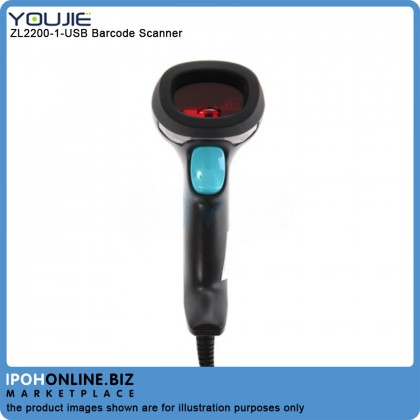

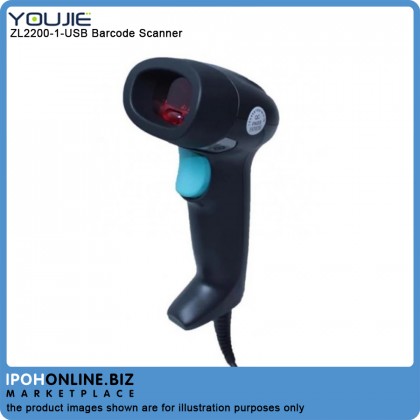

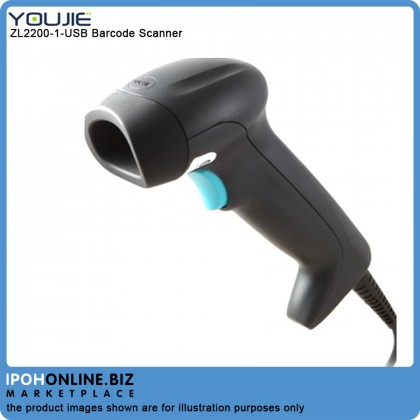

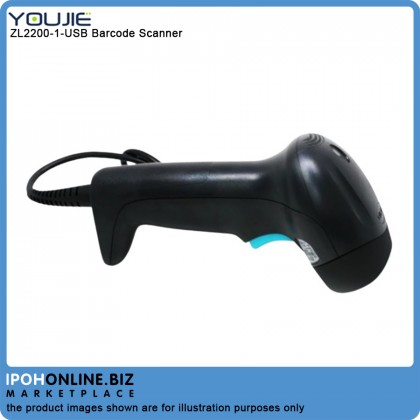

Youjie ZL2200-1-USB Single Line Laser Wired 1D Scanner by Honeywell - Black Laser Barcode Scanner (Handheld)

RM148.00 RM388.00 RM

Youjie ZL2200-1-USB Single Line Laser Wired 1D Scanner by Honeywell - Black Laser Barcode Scanner (Handheld)

Price	RM148.00 RM388.00 RM
Product SKU	SCA-YOUJIE-ZL2200
Brand	OEM
Size (L x W x H)	28 cm x 12 cm x 10 cm
Availability	2 - 3 Days

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Scan performance at an affordable price ratio: Highly cost effective, ideal for small- to medium-sized enterprises
Proprietary scanning platform
Outstanding scanning performance: Provides faster scanning, larger depth of field, wider scanning angle and zero error rates.
Ergonomic form factor design
High compatibility



Product description of Youjie ZL2200 1D Scanner

Youjie ZL2200 is a cost-effective single-line laser scanner with optimized performance. As an entry level bar code scanner targeting the low to middle segment of the AIDC markets, ZL2200 is ideal for various scanning applications like retail POS for small supermarkets and convenience stores, document scanning for office automation, and mail and parcels processing for post offices. With its innovative scanning platform design, ZL2200 enjoys similar performance from international AIDC vendors at an affordable price, while beating other low-cost brands with its better performance. To meet the challenging demand for high cost-efficient offering from high growth markets, Youjie ZL2200 is engineered with a revolutionary scanning platform design. Sophisticated and integrated, Youjie combines the robust hardware design with an optimized software decoding algorithm. Built on this platform, ZL2200 scans much faster, with a greater depth of field and wider scanning angle. Its crisp and loud beeper helps operators confirm each successful scan easily, avoiding error or missed scans. Its ergonomic gunshape design combining top manufacturing technology provides comfortable grip for any hand size, greatly reducing users’ fatigue in high volume scanning environment. Featuring “plug-and-play” with no additional configuration needed, ZL2200 simplifies “user set up with superior out-of-box experience. It can simply be plugged into any USB port of a PC or POS machine and it is ready to go. Youjie ZL2200 truly frees users from repetitive and tedious data collection work, eliminating errors from manual records entry. In addition, with its high compatibility and ease-of-use feature, ZL2200 has become an import tool in offices. For enterprises seeking highly efficient data collection devices at low cost, ZL2200 is the no. 1 choice.

Specifications

Operational
Light Source	Visible Laser Diode (VLD) @ 650 nm
Laser Power	Less than 1.0 mW average
Depth of Scan Field	17 mm – 232 mm (0.7" – 9.1")	0.33 mm (13 mil) UPC-A Bar Code
Scan Speed	72 ± 2 scan lines per second
Scan Pattern	Single scan line
Minimum Bar Width	4.5 mil
Decode Capability	Reads standard 1D and GS1 DataBar symbologies.
System Interfaces	USB
Print Contrast	20% minimum reflectance difference
No. Characters Read	Up to 80 data characters. The maximum number will vary based on symbology and density
Scan Angle	55° Horizontal
Pitch, Yaw	68°, 52°
Beeper Operation	7 tones or no beep
Indicators (LED)	Green = good read
	Red = laser on, ready to scan
Mechanical
Length	165 mm (6.5")
Width	65 mm (2.6")
Height	80 mm (3.2")
Weight	182 g (6.42 oz)
Electrical
Input Voltage	5VDC +/- 0.2V (USB port)
Operating Power	Standby	700 mW
	Decoding USB	1000 mW
Operating Current	Standby	140 mA average @ 5VDC
	Decoding USB	200 mA average @ 5VDC
Environmental
Temperature	Operating	0°C to 40°C (32°F to 104°F)
	Storage	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Light Levels	Up to 100000 Lux (9290 footcandles)
Shock	Designed to withstand 1.0 m (3.3 ft.) drops
Contaminants	Sealed to resist airborne particulate contaminants
Ventilation	None required
