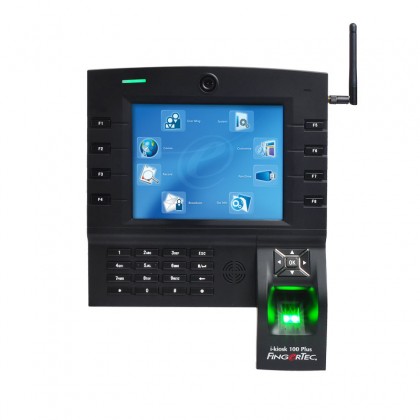

Name: FingerTec i-Kiosk 100 Plus Premier Color Multimedia Fingerprint Time Attendance & Access Control System
Brand: FingerTec
SKU: FP-FINGERTEC-I-KIOSK-100-PLUS
Price: 4299.00 MYR
Availability: InStock

FingerTec i-Kiosk 100 Plus Premier Color Multimedia Fingerprint Time Attendance & Access Control System

RM4,299.00 RM

FingerTec i-Kiosk 100 Plus Premier Color Multimedia Fingerprint Time Attendance & Access Control System

Price	RM4,299.00 RM
Product SKU	FP-FINGERTEC-I-KIOSK-100-PLUS
Brand	FingerTec
Size (L x W x H)	35 cm x 9 cm x 30 cm
Availability	20

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								10,000 FP templates
200,000 transaction logs
Comm: TCP/IP, RS232, RS485, USB flashdisk,WiFi
Verification: FP/Card/PIN
Card: Default RFID



Multi Verification Methods
Is your fingerprint damaged due to injuries? We think ahead. Our device has password and RFID card verification to fall back on should your fingerprint fail to be read.

Camera
Don’t compromise on security! Every time a user attempts to verify into an authorized area, this hi-tech camera captures a photo of the user. This feature is useful in warding off vandals, and in duress situations.

Wireless Data Management
That’s right. With the USB flashdisk port and the Wi-Fi data communication, syncing of data can now be done without any wiring hassle.

Supersized Capacity
Get up to 10,000 fingerprint templates and 200,000 transaction logs – more than enough to fulfill the requirements of an SME.

Shortcut Keys
Program these keys to take you to commonly used functions in just one step. Did we mention that we make things easy?

T9 Input Method
Reduce your time and effort by using the T9 method of typing when doing data input. With T9 Input, you just need to press a button once for the alphabet that your want.

Mini TV
Take your full colour touch screen display to the next level. Display a company ad, corporate song, or even a short entertaining clip for your customers/guests to view in your waiting room.

Manage Your Data Easily
Administration is easy with the Ingress software application. Ingress allows you to remotely manage door activity of all connected terminals, while containing time attendance functions for attendance monitoring

LAYOUT PLAN

System Communication

for illustration only

Installation Diagram

Specifications

MODEL	i-Kiosk 100 Plus
SURFACE FINISHING	Acrylonitrile Butadiene Styrene (ABS)
TYPE OF SCANNER	Optical fingerprint scanner
MICROPROCESSOR	600 MHz
MEMORY	256MB flash memory & 64MB SDRAM
ALGORITHM	BioBridge VX 9.0 / VX 10.0
PRODUCT DIMENSION (L X W X H), mm	260 x 70 x 320
STORAGE
• Fingerprint templates	10000
• Card	10000
• Transaction	200000
ENROLLMENT & VERIFICATION
• Methods	Fingerprint (1:1, 1:N), Password & Card
• Recommended fingerprint per user ID	2
• Fingerprint placement	Any angle
• Verification time (sec)	< 1
• FAR (%)	< 0.0001
• FRR (%)	< 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330)	Yes
• MIFARE: MFIS50/S70, 13.56MHz	Made to order
• HID: HID 1326, 26-bit, 125kHz	Made to order
COMMUNICATIONS
• Method	TCP/IP, RS232, RS485, USB disk & WiFi
• Baud rates	9600, 19200, 38400, 57600, 115200
• Wiegand	26-bit input/output
OPERATING ENVIRONMENT
• Temperature (°C)	0 ~ 45
• Humidity (%)	20 ~ 80
• Power input	DC 12V 3A
TIME ATTENDANCE
• Siren	Built- in
• Work codes	Yes
MULTIMEDIA
• Voice	Yes
• Display	8.0” 65k color TFT touch screen panel
• Short messaging	Yes
• Music playback	Yes
• Movie playback	Yes
• Internal backup battery	Yes (DC12V, 2000mAh)
ACCESS CONTROL
• EM lock driving output	DC 12V 3A / Relay output
• Alarm output	NO / NC
• Antipassback	Yes
VOICE / DISPLAY LANGUAGE (TERMINAL)	English (Standard), Arabic, Indonesian, Spanish, Persian. Other languages are available upon request.
