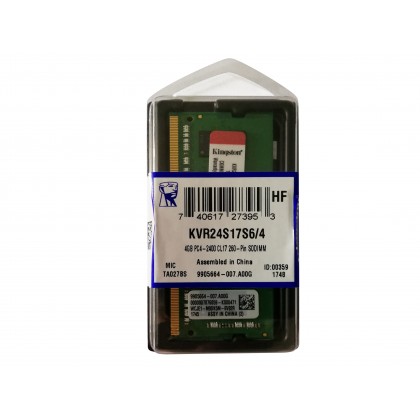

Name: Kingston 4GB DDR4 2400Mhz SODIMM 2400 260 PIN NOTEBOOK Value RAM KVR24S17S6/4
Brand: Kingston
SKU: RAM-4GB-2400-KVR24S17S6/4
Price: 239.00 MYR
Availability: InStock

Kingston 4GB DDR4 2400Mhz SODIMM 2400 260 PIN NOTEBOOK Value RAM KVR24S17S6/4

RM239.00 RM284.00 RM

Kingston 4GB DDR4 2400Mhz SODIMM 2400 260 PIN NOTEBOOK Value RAM KVR24S17S6/4

Price	RM239.00 RM284.00 RM
Product SKU	RAM-4GB-2400-KVR24S17S6/4
Brand	Kingston
Size (L x W x H)	4.7 cm x 0.7 cm x 9.8 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank



This document describes ValueRAM's KVR24S17S6/4 as a 512M x 64-bit (4GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

CL(IDD)	17 cycles
Row Cycle Time (tRCmin)	45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	350ns(min.)
Row Active Time (tRASmin)	32ns(min.)
Maximum Operating Power	TBD W*
UL Rating	94 V - 0
Operating Temperature	0°C to +85° C
Storage Temperature	-55° C to +100°C

Features:

On-board I2 serial presence-detect (SPD) EEPROM
8 internal banks; 2 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
