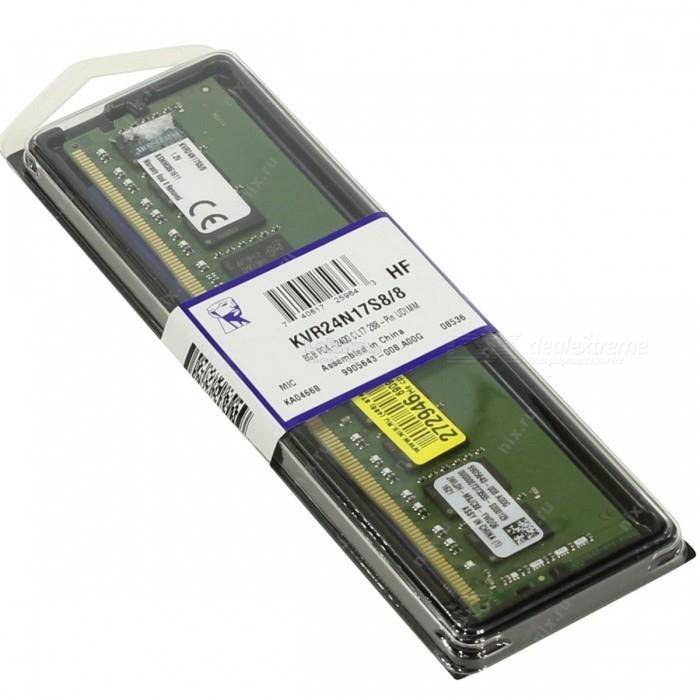

Kingston 8GB 2400 DDR4 2400Mhz 288 Pin UDIMM Desktop Value Ram KVR24N17S8/8
Price RM438.00 RM499.00 RM
Product SKU RAM-8GB-2400-KVR24N17S8/8
Brand Kingston
Size (L x W x H) 4.8 cm x 0.1 cm x 16.3 cm
Availability 1
Quantity
Description
Highlight
  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free

This document describes ValueRAM's KVR24N17S8/8 is a 1G x 64-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follow:



SPECIFICATIONS

CL(IDD)  17 cycles
Row Cycle Time (tRCmin) 45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 350ns(min.)
Row Active Time (tRASmin) 32ns(min.)
Maximum Operating Power TBD W*
UL Rating 94 V - 0
Operating Temperature 0°C to +85°C
Storage Temperature -55°C to +100°C



Features:

  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free
Reviews (0)
view all
back
0
0 reviews
What's in the box

1 x Kingston 8GB 2400 DDR4 2400Mhz 288 Pin UDIMM Desktop Value Ram KVR24N17S8/8
