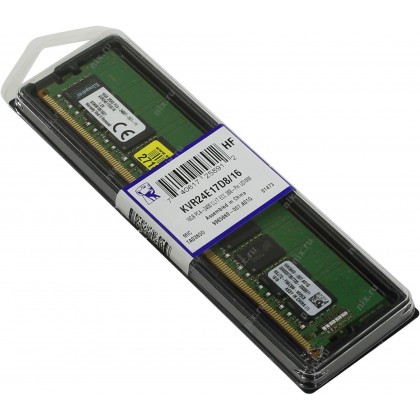

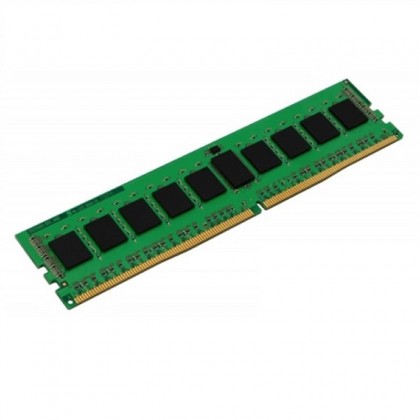

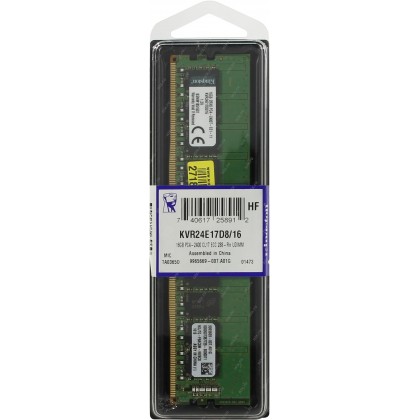

Name: Kingston ValueRAM 16GB 2400 DDR4 2400Mhz 288 Pin ECC Unbufferred DIMM Server RAM KVR24E17D8/16
Brand: Kingston
SKU: RAM-16GB-KINGSTON-KVR24E17D8/16
Price: 1249.00 MYR
Availability: InStock

Kingston ValueRAM 16GB 2400 DDR4 2400Mhz 288 Pin ECC Unbufferred DIMM Server RAM KVR24E17D8/16

RM1,249.00 RM1,399.00 RM

Kingston ValueRAM 16GB 2400 DDR4 2400Mhz 288 Pin ECC Unbufferred DIMM Server RAM KVR24E17D8/16

Price	RM1,249.00 RM1,399.00 RM
Product SKU	RAM-16GB-KINGSTON-KVR24E17D8/16
Brand	Kingston
Size (L x W x H)	4.8 cm x 0.9 cm x 16.5 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)



Features:

Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
Temperature sensor with integrated SPD
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB: Height 1.23” (31.25mm)
RoHS Compliant and Halogen-Free

ValueRAM's KVR24E17D8/16 is a 2G x 72-bit (16GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS
CL(IDD)	17 cycles
Row Cycle Time (tRCmin)	46.16ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	350ns(min.)
Row Active Time (tRASmin)	32ns(min.)
Maximum Operating Power	TBD W*
UL Rating	94 V - 0
Operating Temperature	0°C to +85°C
Storage Temperature	-55°C to +100°C
