Name: DC 12V 1CH Relay Receiver Module RF Transmitter 433Mhz Wireless Remote Control Switch
Brand: OEM
SKU: REMOTE-2K08-10
Price: 28.00 MYR
Availability: OutOfStock

DC 12V 1CH Relay Receiver Module RF Transmitter 433Mhz Wireless Remote Control Switch

RM28.00 RM56.00 RM

DC 12V 1CH Relay Receiver Module RF Transmitter 433Mhz Wireless Remote Control Switch

Price	RM28.00 RM56.00 RM
Product SKU	REMOTE-2K08-10
Brand	OEM
Size (L x W x H)	11 cm x 14 cm x 7 cm
Availability	Out Of Stock

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Momentary: Push the remote button, the relay connects, release the remote button, the relay disconnect
Toggle: Push once the remote button , the relay connects , push twice the remote button , the relay disconnect
Latching: Push the remote button A, the relay connects, push the remote button B, the relay disconnect
Time delay mode: Push the remote control button, the relay connects, from when release the remote button, after 5s or 10s or 15s, the relay disconnect automatically.



Specification

Material: Plastic + Metal
Color: Black
Dimension of PCB: (L×W×H) 35×30×18mm/1.38×1.18×0.71in (Approx.)
Input Power: DC10V-14V
Standby Current: <5MA
RF Frequency: 433M
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: >100m (open space)
Decoding mode: MCU software decoding
Remote storage: 25pcs

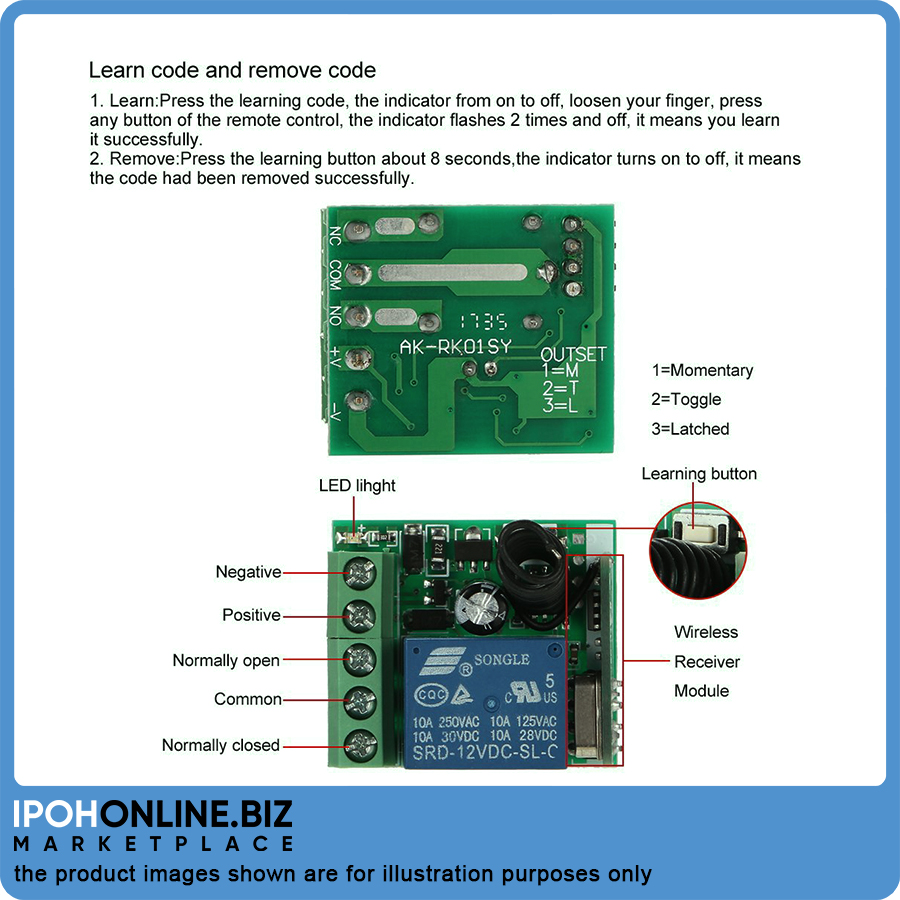

Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Wiring type: fixed terminal
Output Terminal: NO , NC , COM

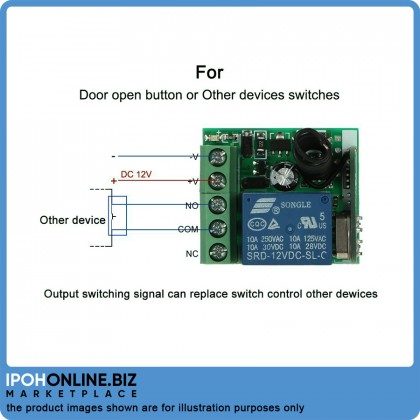

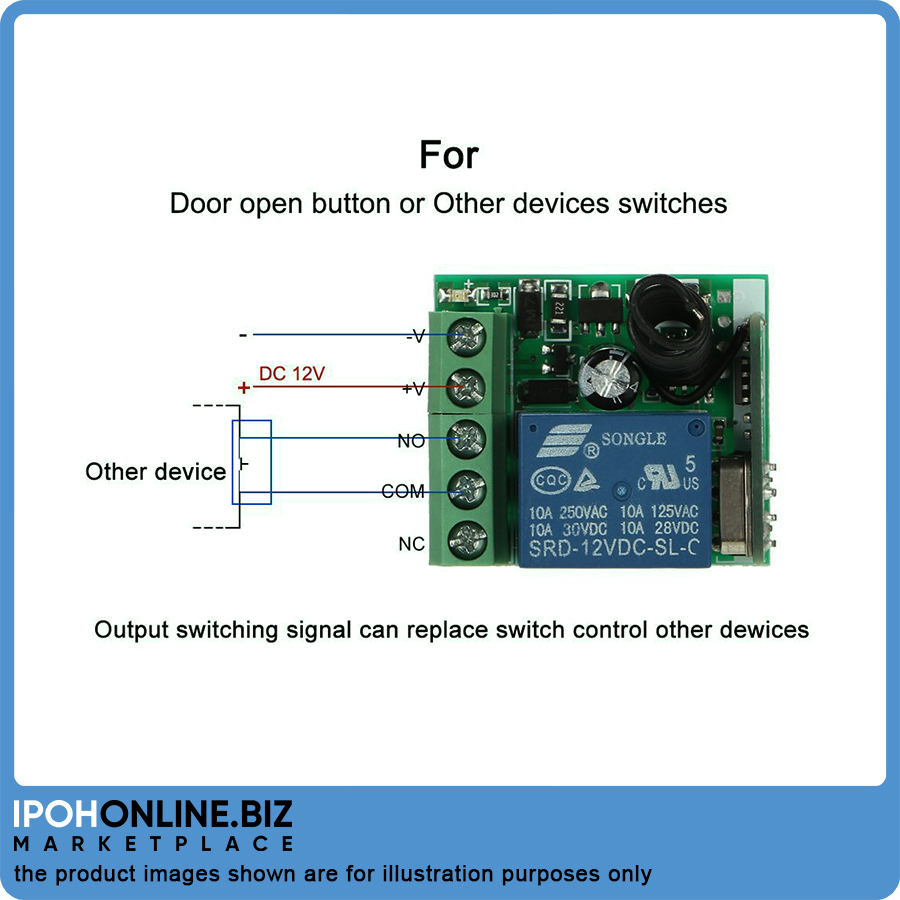

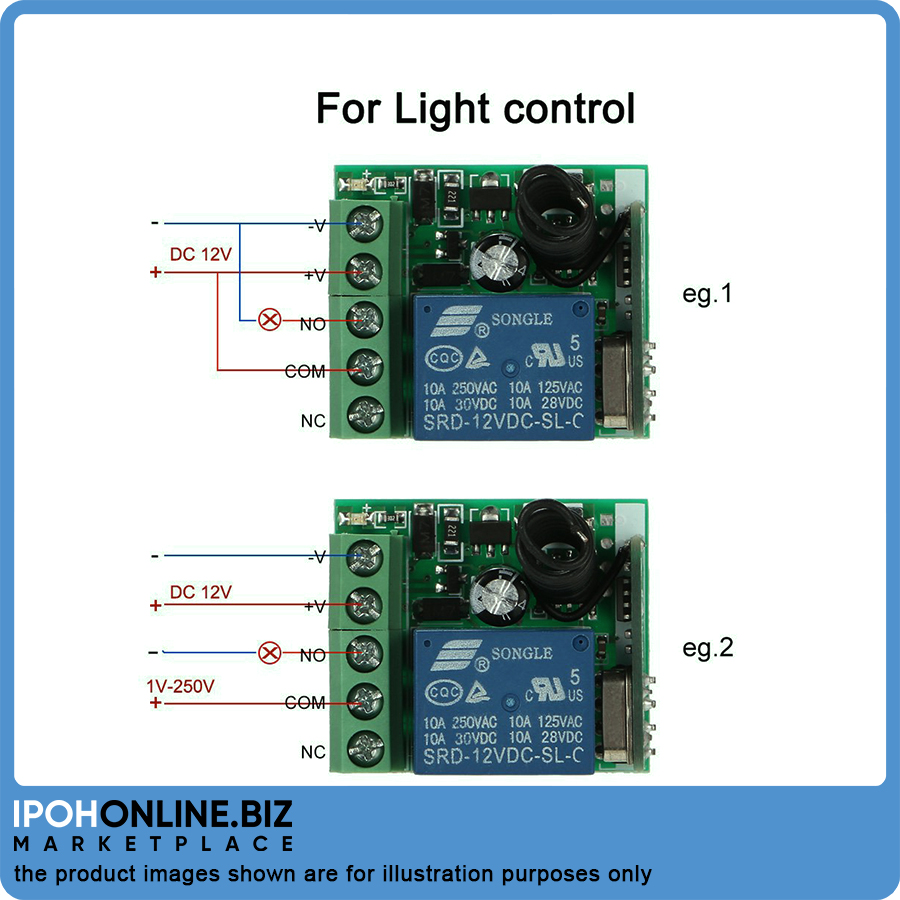

Wiring diagram:
- +V : 12V + input ;
- - V: 12V - input ;
- NO: Output, normal open;
- COM: Output, common ;
- NC: Output, normal close
