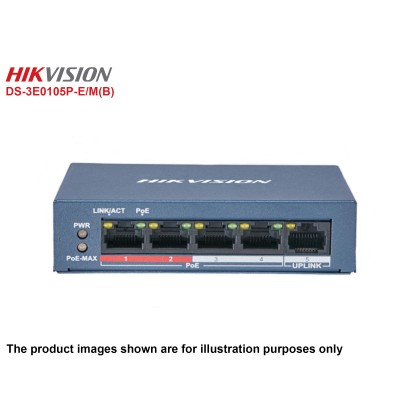

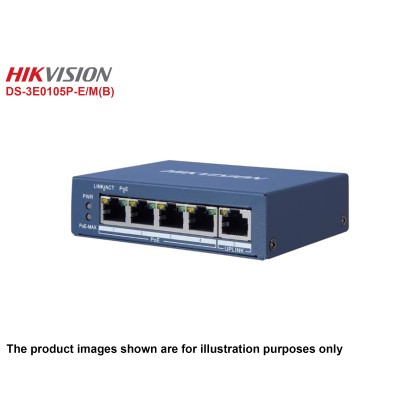

Name: Hikvison DS-3E0105P-E/M(B) L2 4 Port 10/100M RJ45 Unmaneged Poe Port Switch W 6KV Surge Protection
Brand: Hikvision
SKU: SWI-HIK-DS-3E0105P-E/M(B)
Price: 138.00 MYR
Availability: InStock

Hikvison DS-3E0105P-E/M(B) L2 4 Port 10/100M RJ45 Unmaneged Poe Port Switch W 6KV Surge Protection

RM138.00 RM299.00 RM

Hikvison DS-3E0105P-E/M(B) L2 4 Port 10/100M RJ45 Unmaneged Poe Port Switch W 6KV Surge Protection

Price	RM138.00 RM299.00 RM
Product SKU	SWI-HIK-DS-3E0105P-E/M(B)
Brand	Hikvision
Size (L x W x H)	23 cm x 14 cm x 13 cm
Availability	2

Quantity

Product
Description
Reviews (0)

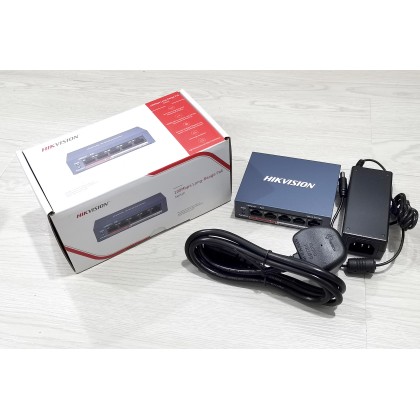

What's in the box

Description

Highlight
								4 × 100 Mbps PoE ports, and 1 × 100 Mbps Ethernet port.
IEEE 802.3at/af standard.
IEEE 802.3, IEEE 802.3u and IEEE 802.3x standard.
High priority ports.
8-core power supply.
Up to 250 m transmission distance.
6 KV surge protection for PoE ports.
PoE power management.
100 Mbps network access.
Wire-speed forwarding and non-blocking design.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.



Hikvison DS-3E0105P-E/M(B) L2 4 Port 10/100M RJ45 Unmaneged Poe Port Switch W 6KV Surge Protection

Specification

Model	Hikvison DS-3E0105P-E/M(B)
Network Parameters

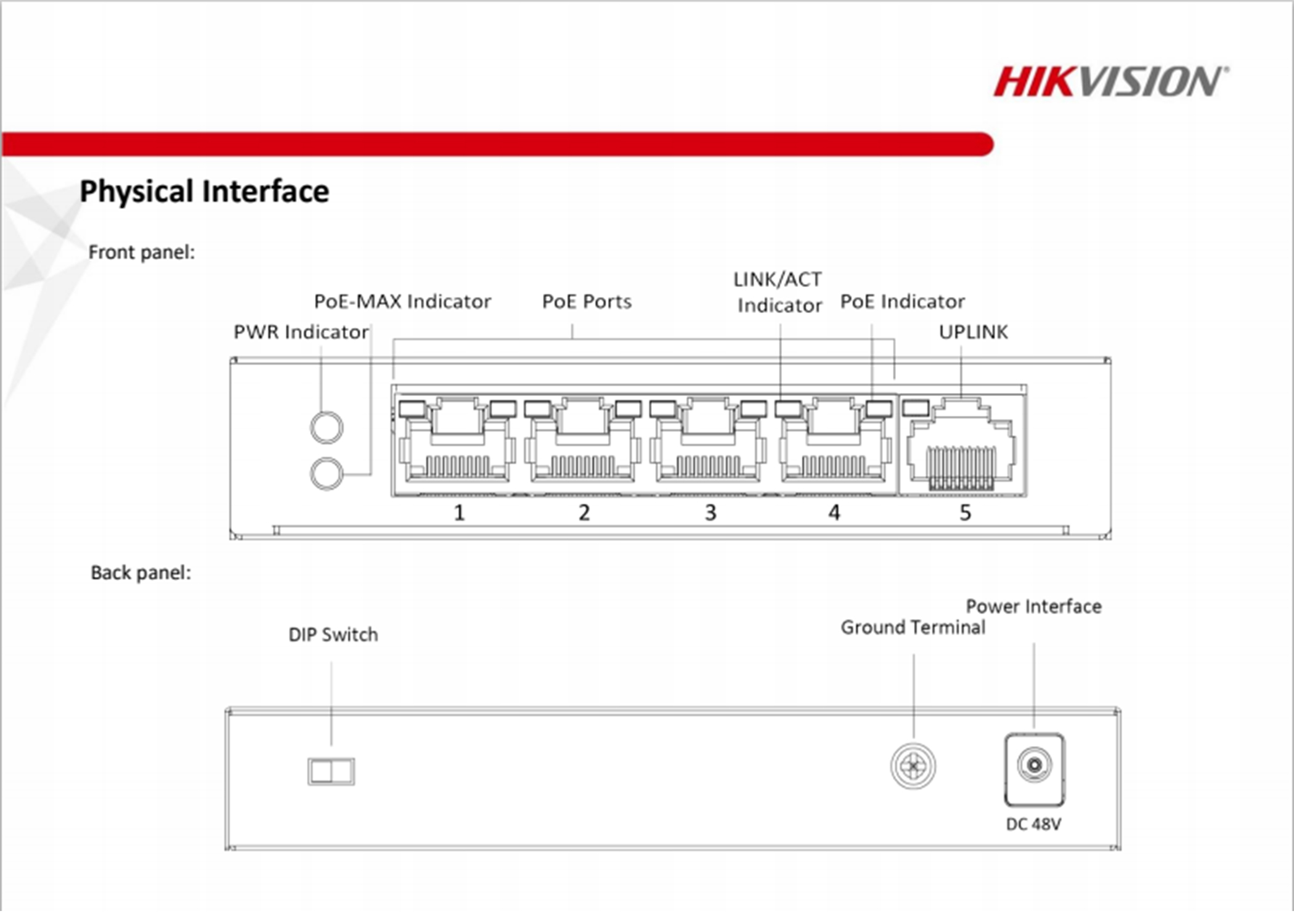

Port Number	4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode	Store-and-forward switching
Working Mode	Standard mode (default); Extend mode
High Priority Ports	Ports 1 to 2
MAC Address Table	1K
Switching Capacity	1 Gbps
Packet Forwarding Rate	0.744 Mpps
Internal Cache	448 Kbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	Ports 1 to 4
Max. Port Power	30 W
PoE Power Pudget	35 W
Dialing Function
Long Range	Ports 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.
General
Shell	Metal material, fan-free design
Gross Weight	0.48 kg (1.06 lb)
Net Weight	0.20 kg (0.4 lb)

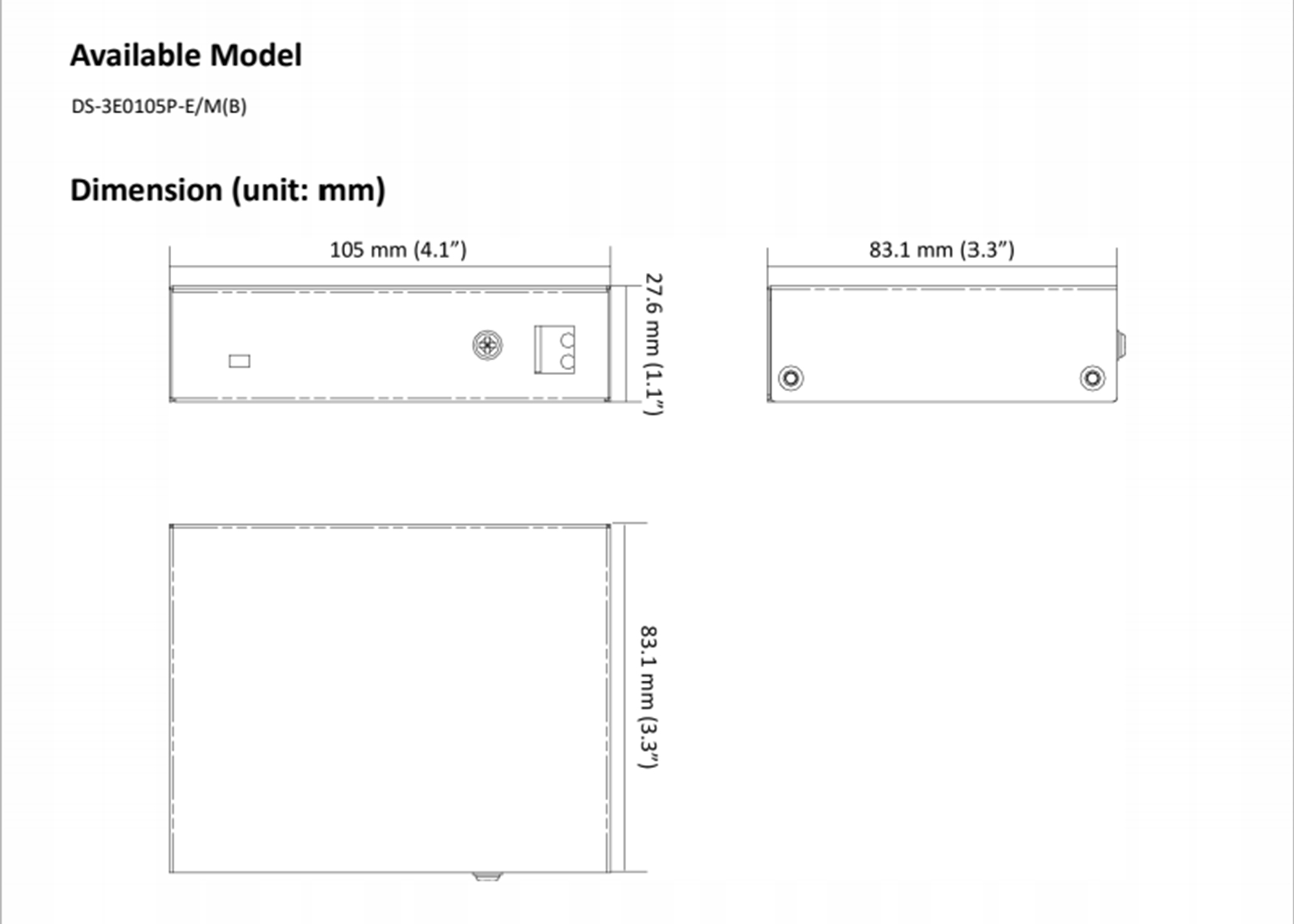

Dimension (L × H × D)	105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Storage Humidity	5% to 95% (no condensation)
Power Supply	48 VDC, 0.8 A
Power Consumption In Idle	3 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

4 Port Fast Ethernet Unmanaged POE Switch

Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.

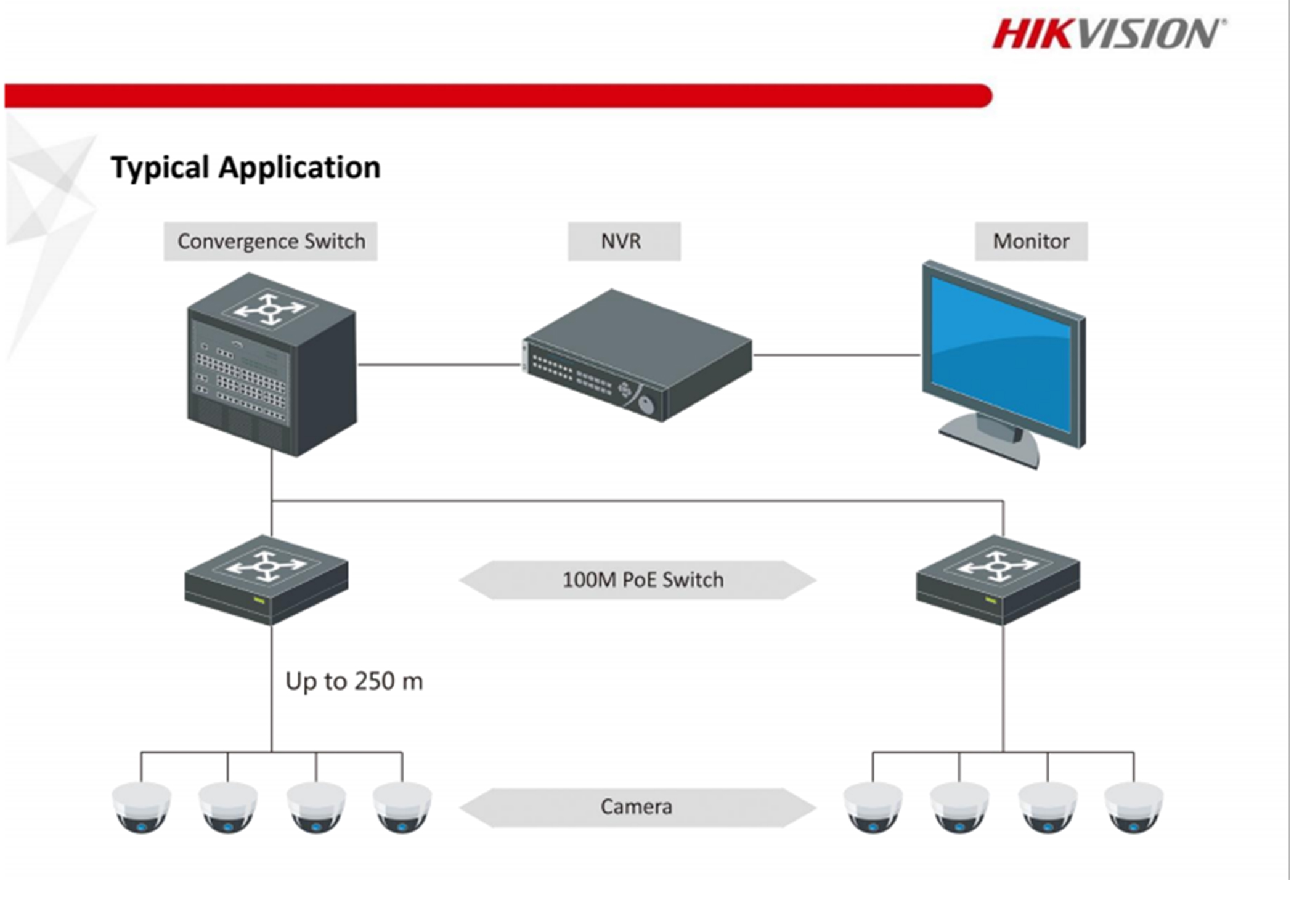

Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
