Price | RM168.00 RM398.00 RM |
Product SKU | AP-DLINK-DAP-3320 |
Brand | D-Link |
Size (L x W x H) | 36 cm x 18 cm x 12 cm |
Availability | Out Of Stock |
Description
Highlight
- AP / WDS / WDS with AP / wireless client mode
- D-Link Central WiFiManager for remote management
- Up to 300Mbps wireless throughput
- 10 / 100 BaseT PoE Ethernet Port
- High Power design with built-in onmi-directional antennas
- Compliant with 802.11b/g/n
- Support multiple SSID in AP mode and multiple SSID over WDS
Specifications
Device Interfaces | 802.11n/g/b wireless Reset Button 10/100BaseT PoE Ethernet Port Grounding Wire Connector |
LEDs | Power |
Antenna | 2 dBi Antenna |
Wireless Frequency | 2.4 GHz to 2.4835 GHz |
Maximum Transmit Power Output | 29.55 dBm (901 mW) |
Standards | IEEE 802.11 b/g/n IEEE 802.3u IEEE 802.3 IEEE 802.3af |
Operation Mode | AP WDS WDS with AP Wireless Client |
Network Management | Web Browser Interface HTTP, Secure HTTP (HTTPS) Telnet, Secure Shell (SSH) D-Link Central WiFi Manager SNMP v1, v2c and v3 Traffic Control AP Array Security |
Security | WPA2-Personal/Enterprise WPA-Personal/Enterprise WEP 64/128 bit Encryption 802.1x SSID Broadcast Disable MAC Address Control Network Access Protection |
SSID/VLAN | Support for up to 8 SSIDs/VLANs |
Dimensions | 105.43 x 228.6 x 35.86 mm (4.15 x 9.00 x 1.41 inches) |
Weight | 370.4 grams (13.07 ounces) 384.25 grams (13.55 ounces) with mounting bracket |
Power Input | 48 V, 0.5 A or 802.3af PoE compliant |
Temperature |
Operating: -20 to 60 °C (-4 to 140 °F)
• Storage: -20 to 65 °C (-4 to 149 °F)
|
Humidity | Operating: 0% to 90% non-condensing • Storage: 5% to 95% non-condensing |
Surge Protection | 4 kV |
ESD Protection | 15 kV |
Certifications | CE,UL, Wi-Fi Certified, FCC, IC |
Minimum Requirements | Computer With - Windows 7, Macintosh10.8, or Linux-based operating systems / Internet Explorer 7, Mozilla Firefox v12, Google Chrome v12, or Safari v4 For Central WiFiManager - Windows Server 2012 or Windows 7 |
What's in the box

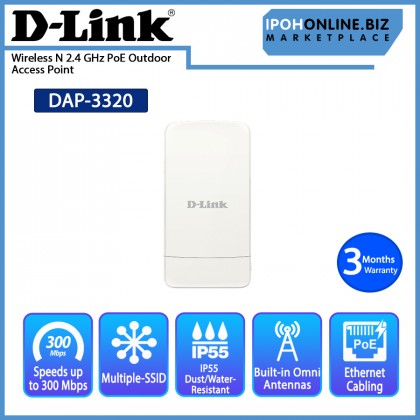

- 1 x D-Link DAP-3320 Wireless N 2.4 GHz PoE Outdoor Access Point
- 1 x Mounting Kit
- 1 x PoE Kit (PoE Injector + Power AdaptOr)
- 1 x Grounding Wire
- 1 x Quick Install Guide
Warranty
3 Months Warranty
Local Manufacturer Warranty
