Features​​​​​​

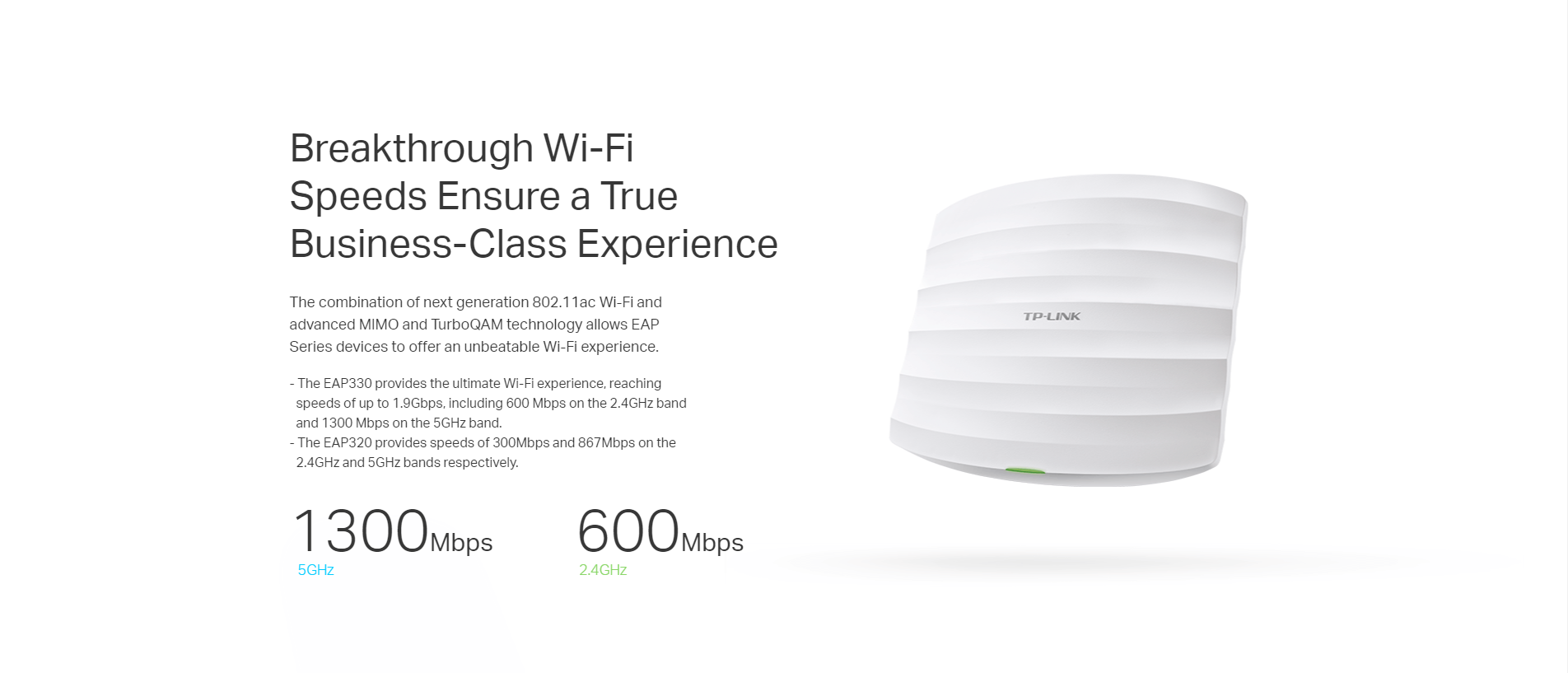

• Speeds of up to 1.9Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
• Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
• Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Captive portal provides a convenient method for guest authentication
• Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation
• Supports management vlan for an enhanced network management

Specification

Hardware

• Interface: Gigabit Ethernet (RJ-45) Port *2 (ETH1 Support IEEE802.3at PoE）
• Physical Security Lock: Kensington Lock Slot
• Button: Reset
• Power Supply: PoE or External 12VDC / 2.5A Power Supply
• Power Consumption: US: 21.2 W
• Dimensions ( W x D x H ): 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)
• Antenna Type: Internal Omni 2.4GHz: 3* 6dBi, 5GHz: 3*7dBi
• Mounting: Ceiling /Wall Mounting (Kits included)
• Hardware Watch Dog: Yes

Wireless

• Wireless Standards: IEEE 802.11ac/n/g/b/a
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 5GHz:Up to 1300Mbps, 2.4GHz:Up to 600Mbps
• Transmit Power: < 27dBm
• Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control(Adjust Transmit Power on dBm), QoS(WMM), Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Link Aggregation, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
• Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Management

• Omada Cloud Access: Yes
• Omada App: Yes
• Omada Cloud Controller: Yes
• Omada Controller Software: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1,v2c
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes

Others

• Certification: CE, FCC, RoHS
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
• Environment: Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

What In The Box

• 1 x TP-Link EAP330 AC1900 Wireless Dual Band Gigabit Ceiling Mount Access Point
• 1 x Mounting Kits
• 1 x Power Adapter
• 1 x Installation Guide

Warranty
3 Years Limited Warranty
Local Manufacturer Warranty
