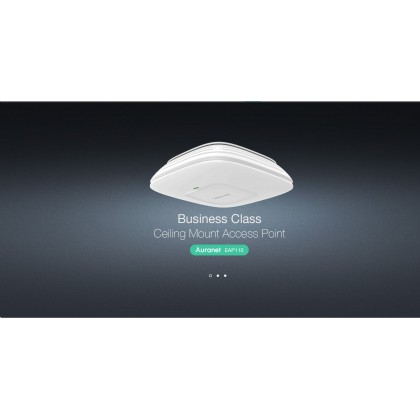

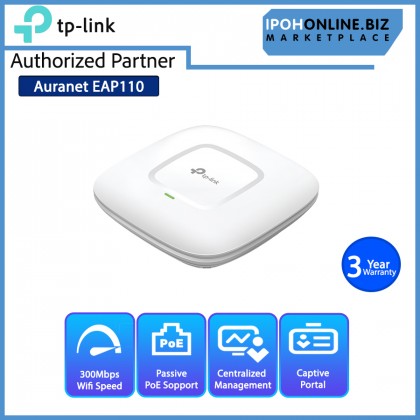

Name: TP-Link Auranet EAP110 300Mbps Wireless N Ceiling Mount Access Point
Brand: TP-Link
SKU: AP-TL-EAP110
Price: 179.00 MYR
Availability: InStock

TP-Link Auranet EAP110 300Mbps Wireless N Ceiling Mount Access Point

RM179.00 RM385.00 RM

TP-Link Auranet EAP110 300Mbps Wireless N Ceiling Mount Access Point

Price	RM179.00 RM385.00 RM
Product SKU	AP-TL-EAP110
Brand	TP-Link
Size (L x W x H)	37 cm x 29 cm x 13 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight

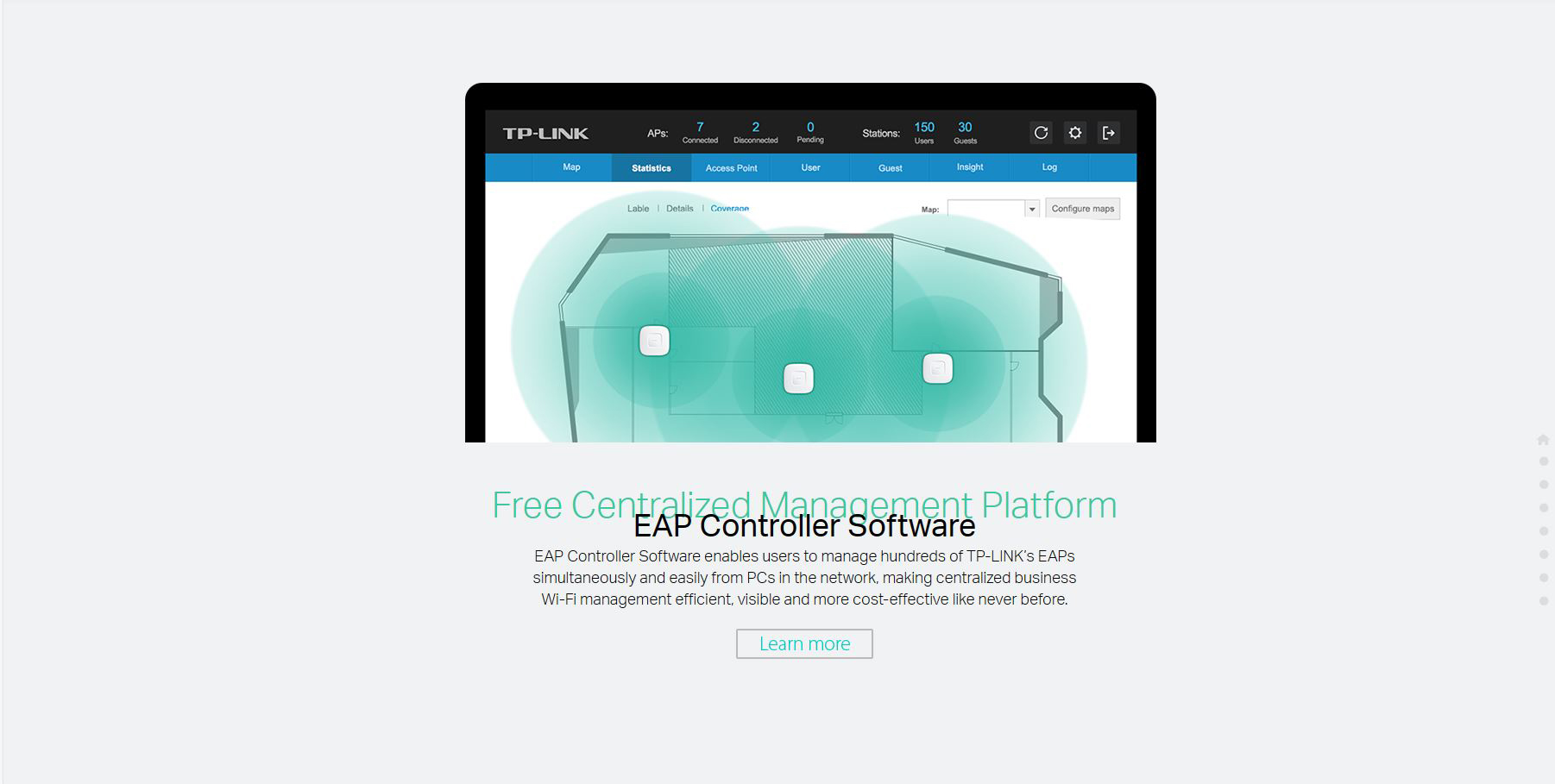

								EAP Controller Software enables administrators to easily manage hundreds of EAPs

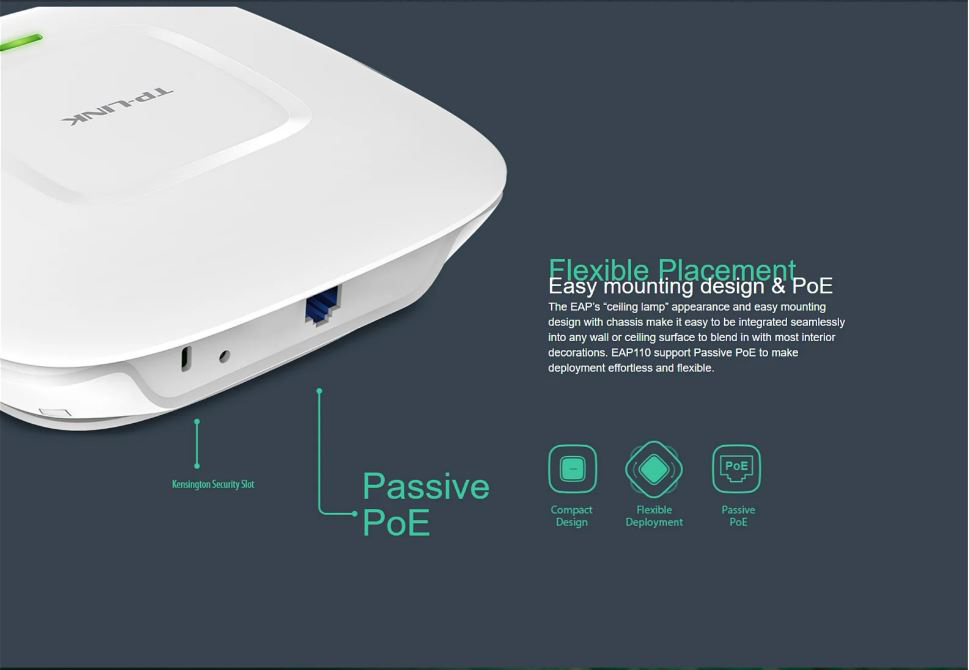

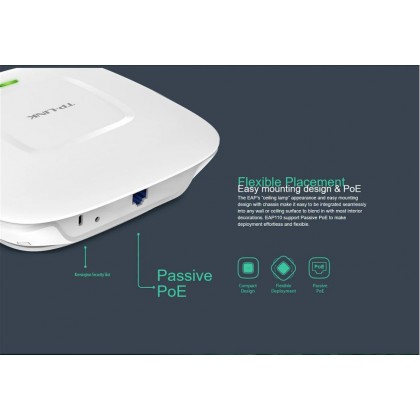

Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling

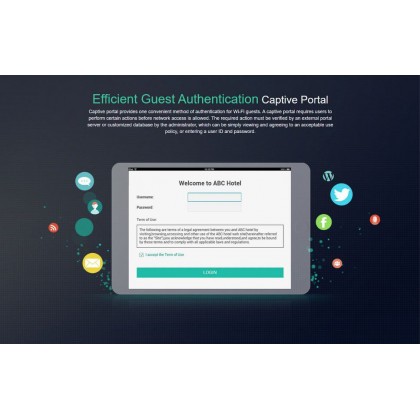

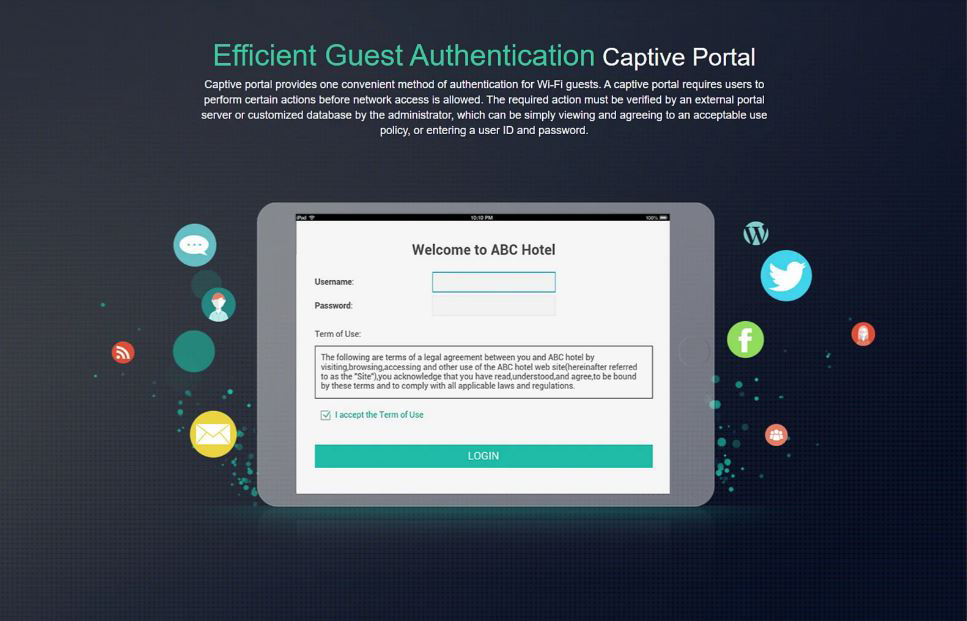

Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats



TP-Link Auranet EAP110 300Mbps Wireless N Ceiling Mount Access Point

Overview

Specifications

Hardware Features

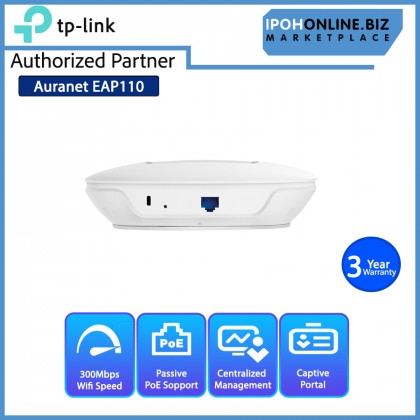

Interface	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Physical Security Lock	Kensington Lock Slot
Button	Reset
Power Supply	24VDC / 1A Passive PoE Supply
Power Consumption	7.7W
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions	7.1 x 7.1 x 1.9 in. (18018047.5mm)
Antenna Type	Internal 2* 3dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
Watch Dog	Yes
Wireless Features
Wireless Client Capacity	100+**
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate 11n	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: <20dBm FCC: <26dBm
Management
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
EAP Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Others
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Resource CD Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

What In The Box

1 x TP-Link EAP110 300Mbps Wireless N Ceiling Mount Access Point
1 x Passive PoE Adapter
1 x Power Cord
1 x Mounting Kits
1 x Installation Guide

Warranty

3 Months Warranty
Local Manufacturer Warranty
Warranty Policy : Please complete and submit Product Warranty Registration Form within 14 days of purchase to ensure continuous coverage. LAZADA Warranty Registration http://LWR.accessglobal.info Email us at [email protected]
