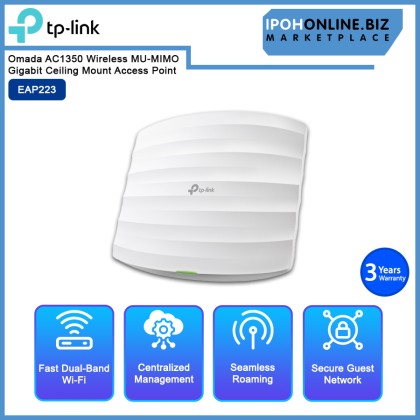

Name: TP-Link Omada EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point 802.11 ac WAVE 2
Brand: TP-Link
SKU: AP-TL-EAP223
Price: 399.00 MYR
Availability: InStock

TP-Link Omada EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point 802.11 ac WAVE 2

RM399.00 RM399.00 RM

TP-Link Omada EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point 802.11 ac WAVE 2

Price	RM399.00 RM399.00 RM
Product SKU	AP-TL-EAP223
Brand	TP-Link
Size (L x W x H)	39 cm x 28 cm x 11 cm
Availability	2

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Fast Dual-Band Wi-Fi : Simultaneous 450 Mbps On 2.4 GHz And 867 Mbps On 5 GHz Totals 1317 Mbps Wi-Fi Speeds.
Integrated Into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, And Intelligent Monitoring.
Centralized Management : Cloud Access And Omada App For Ultra Convenience And Easy Management.
Seamless Roaming : Even Video Streams And Voice Calls Are Unaffected As Users Move Between Locations.
PoE Support : Support Both Standard 802.3af/at And Passive PoE (PoE Adapter Is Not Included) For Flexible Installations.
Secure Guest Network : Along With Multiple Authentication Options (SMS/Facebook Wi-Fi/ Voucher, etc.) And Abundant Wireless Security Technologies.
Advanced Wireless Tech : Optimize Network Performance Eith MU-MIMO, Band Steering, Airtime Fairness And Beamforming Technologies.



Features

Fast Dual-Band Wi-Fi : Simultaneous 450 Mbps On 2.4 GHz And 867 Mbps On 5 GHz Totals 1317 Mbps Wi-Fi Speeds.
Integrated Into Omada SDN : Zero-Touch Provisioning (ZTP), Centralized Cloud Management, And Intelligent Monitoring.
Centralized Management : Cloud Access And Omada App For Ultra Convenience And Easy Management.
Seamless Roaming : Even Video Streams And Voice Calls Are Unaffected As Users Move Between Locations.
PoE Support : Support Both Standard 802.3af/at And Passive PoE (PoE Adapter Is Not Included) For Flexible Installations.
Secure Guest Network : Along With Multiple Authentication Options (SMS/Facebook Wi-Fi/ Voucher, etc.) And Abundant Wireless Security Technologies.
Advanced Wireless Tech : Optimize Network Performance Eith MU-MIMO, Band Steering, Airtime Fairness And Beamforming Technologies.

Specifications

Hardware Features
Interface	Gigabit Ethernet (RJ-45) Port × 1 (Support IEEE802.3af/at PoE And Passive PoE)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/at PoE 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Is Not Included)
Power Consumption	EU: 9.7W US: 12.1W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type	3 Internal Omni 2.4 GHz: 4 dBi 5 GHz: 5 dBi
Mounting	Ceiling /Wall Mounting (Kits Included)
Wireless Features
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4 GHz & 5 GHz
Signal Rate	5 GHz : Up To 867 Mbps 2.4 GHz : Up To 450 Mbps
Wireless Functions	Multiple SSIDs (Up To 15 SSIDs, 8 For 2.4GHz Band, 7 For 5GHz Band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power On dBm) QoS(WMM) Seamless Roaming Omada Mesh Band Steering Load Balance MU-MIMO Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics Based On SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID To VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	CE : ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) FCC : ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)
Management
Omada App	Yes
Centralized Management	Omada Hardware Controller OC300 Omada Hardware Controller OC200 Omada Software Controller Omada Cloud-Based Controller
Cloud Access	Yes, Through OC300 OC200 Omada Software Controller Omada Cloud-Based Controller
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-Based Management	HTTP/HTTPS
L3 Management	Yes
Multi-Site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring The Use Of Omada Cloud-Based Controller
Others
Certification	CE, FCC, RoHS
Package Contents	AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223 Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	Operating Temperature : 0–40 ℃ (32–104 ℉) Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH Non-Condensing Storage Humidity : 5–90% RH Non-Condensing
