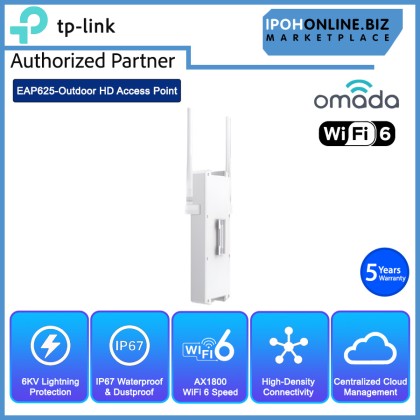

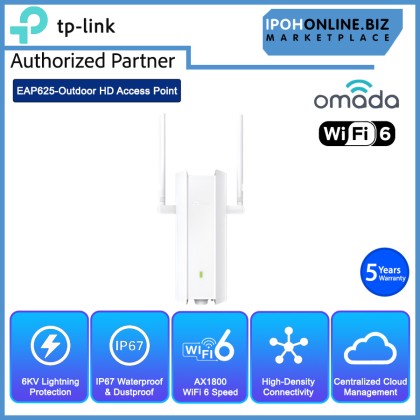

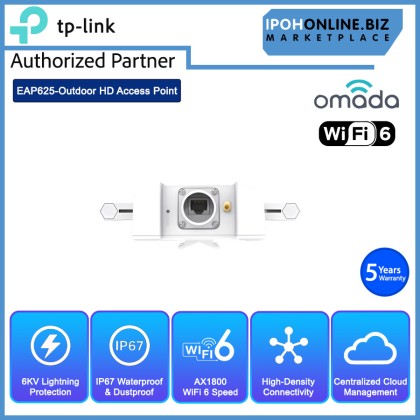

TP-LINK EAP625-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

RM1,099.00 RM1,999.00 RM

TP-LINK EAP625-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

Price	RM1,099.00 RM1,999.00 RM
Product SKU	AP-TL-EAP625-OUTDOOR-HD
Size (L x W x H)	39 cm x 27 cm x 13 cm
Availability	2

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
High-density connectivity up to 1,000+ clients
Long-range coverage with the high-power amplifier and 2 × detachable antennas
IP67 weatherproof enclosure for various outdoor environments
Advanced Functions: Centralized management, Omada mesh, and seamless roaming
PoE+ Powered: Supports both 802.3at PoE (adapter not included)



Features

Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc
High-density connectivity up to 1,000+ clients
Long-range coverage with the high-power amplifier and 2 × detachable antennas
IP67 weatherproof enclosure for various outdoor environments
Advanced Functions: Centralized management, Omada mesh, and seamless roaming
PoE+ Powered: Supports both 802.3at PoE (adapter not included)

Specifications

HARDWARE FEATURES
Interface	1 x Gigabit Ethernet Port
Button	Button
Power Supply	• 802.3at PoE • 48V Passive PoE Note: PoE adapter is not included.
Power Consumption	• EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE)
Dimensions ( W x D x H )	7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)^*5
Antenna Type	2× External Dual-Band Omni Antennas • 2.4 GHz: 3.0 dBi; • 5 GHz: 5.0 dBi
Bluetooth	V5.2
Weatherproof Enclosure	IP67
Mounting	Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients	1,020+³
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax
Frequency	5 GHz, and 2.4 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• Mesh^4 • Seamless Roaming^4 • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (2x2 MU-MIMO DL) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication^*4 • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support
Transmission Power	• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
MANAGEMENT
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP625-Outdoor HD • 2× Detachable Antennas • Installation Guide • Mounting Kit • Waterproof Kit
Environment	• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
