Name: TP-LINK EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point
Brand: TP-Link
SKU: AP-TL-EAP650
Price: 789.00 MYR
Availability: InStock

TP-LINK EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point

RM789.00 RM899.00 RM

TP-LINK EAP650 AX3000 Ceiling Mount Wi-Fi 6 Access Point

Price	RM789.00 RM899.00 RM
Product SKU	AP-TL-EAP650
Brand	TP-Link
Size (L x W x H)	30 cm x 28 cm x 12 cm
Availability	1

Quantity

Product
Description
Reviews (0)
What's in the box

Description

Highlight
								Ultra-Fast WiFi 6 Speeds
High-Efficiency WiFi 6

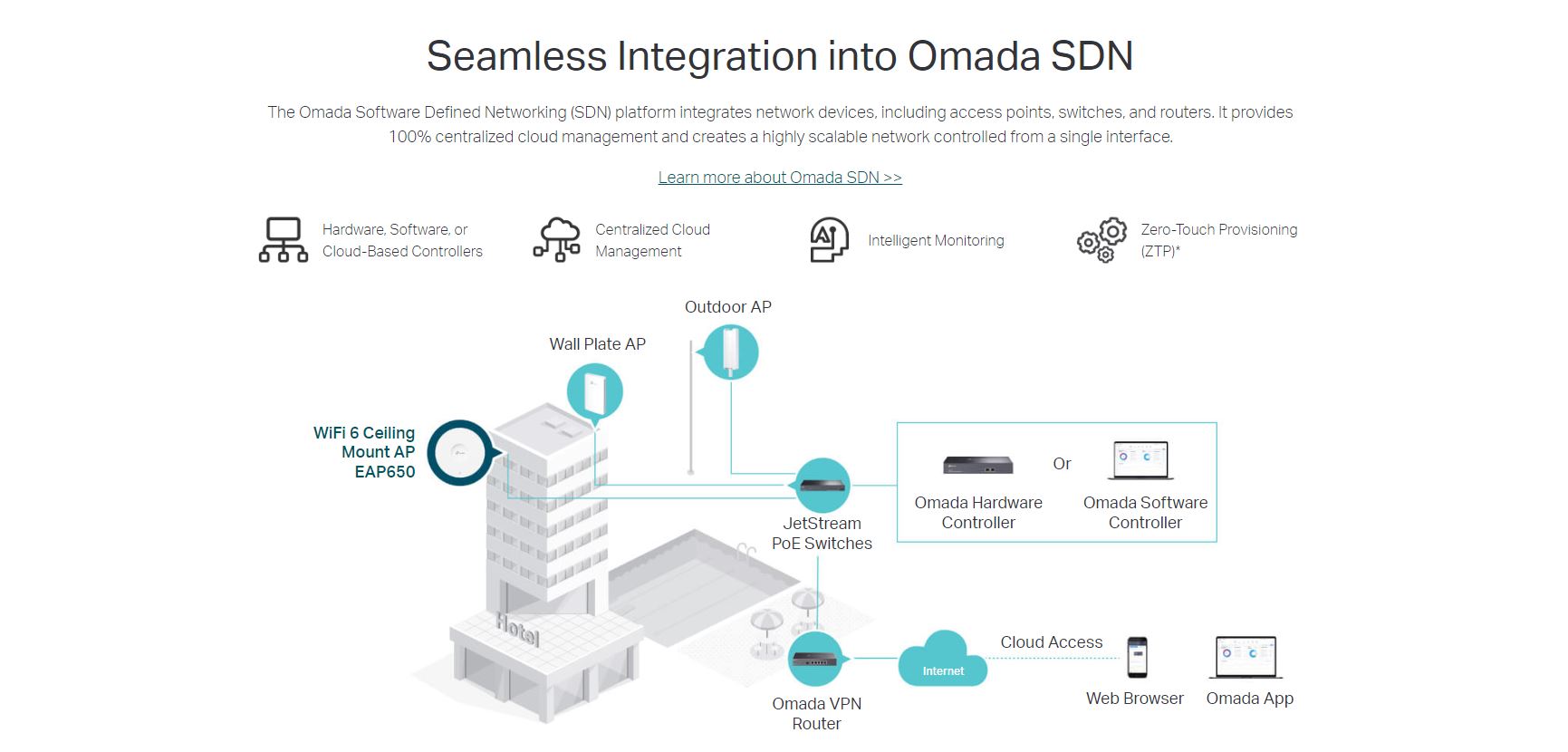

Centralized Cloud Management
160 MHz Channel
Seamless Roaming
Omada Mesh
PoE+ Powered
Ultra-Slim Design



Specifications

HARDWARE FEATURES

Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button	Reset
Power Supply	802.3at PoE 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)
Power Consumption	EU: 13.5 W US: 14.7 W
Dimensions (W x D x H)	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi
Mounting	Ceiling /Wall Mounting (Kits included) Junction Box Mounting

WIRELESS FEATURES

Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps
Wireless Functions	1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160 MHz Bandwidth) Seamless Roaming Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP) FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

MANAGEMENT

Omada App	Yes
Centralized Management	Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller
Cloud Access	Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification	CE, FCC, RoHS
Package Contents	EAP650 Power Adapter Ceiling/Wall Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
