RM929.00
RM1,499.00
RM

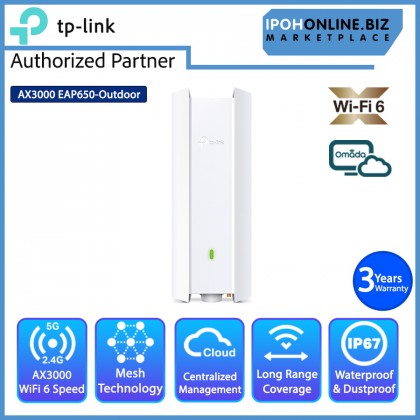

TP-Link Omada EAP650-Outdoor AX3000 Indoor Outdoor WiFi 6 Access Point with PoE MESH Technology
| Price | RM929.00 RM1,499.00 RM |
| Product SKU | AP-TL-EAP650-OD |
| Brand | TP-Link |
| Size (L x W x H) | 37 cm x 28 cm x 11 cm |
| Availability | Pre-Order |
Description
Highlight
- Superior WiFi 6 Speeds
- Higher Network Efficiency
- 160 MHz Bandwidth Channel
- Long-Range Coverage
- Omada Mesh Technology
- Stay Smooth with Seamless Roaming
- PoE Powered
- Centralized Cloud Management
- Swimming Pool, Outdoor Cafe, Amphitheatre, Park, School Playground, Yard / Garden, Outdoor WiFi Camera, Shed / Barns USE
Features
- Superior Wifi 6 Speeds : Delivers Dual Band Speeds Of Up To 3 Gbps Powered By The Latest Wifi 6 Technology.
- Higher Network Efficiency : Enjoy Faster Speeds On More Devices With Less Lag With OFDMA And MU-MIMO.
- 160 Mhz Bandwidth Channel : Double The Data At Peak Transmission Times On A Single Stream With HE160.
- Long-Range Coverage : Dedicated High-Power Amplifier And Professional Antennas With An IP67 Weatherproof Enclosure.
- Omada Mesh Technology : Enables Wireless Connectivity Between Access Points For Extended Range And Flexible Deployment.
- Stay Smooth With Seamless Roaming : Users Can Enjoy Seamless Streaming Across The Property With Their Devices Switching Effortlessly Between Access Points.
- Poe Powered : Supports Both 802.3at Poe+ And Passive Poe (Adapter Included) Power Supply For Flexible Installation.
- Centralized Cloud Management : Omada SDN Integration Manages The Whole Network Locally Or From The Cloud Via Web UI Or The Omada App.
- Swimming Pool, Outdoor Cafe, Amphitheatre, Park, School Playground, Yard / Garden, Outdoor WiFi Camera, Shed / Barns USE
Specifications
| Hardware Features | |
| Interface | 1× Gigabit Ethernet (Rj-45) Port (Support 802.3at PoE And Passive PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE 48v Passive PoE (PoE Adapter Included) |
| Power Consumption | Eu: 12.5w (802.3at PoE Or Passive PoE) Us: 14.7w (802.3at PoE Or Passive PoE) |
| Dimensions ( W X D X H ) | 280.4×106.5×56.8 Mm (Without Antenna & Mounting Kit) |
| Antenna | 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits Included) |
| Wireless Features | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 802.11ax : 8 Mbps To 1201 Mbps (Mcs0-Mcs11, NSS = 1 To 2 HE20/40/80) 802.11ac : 6.5 Mbps To 1083.3 Mbps (Mcs0-Mcs9, NSS = 1 To 2 VHT20/40/80) 802.11n : 6.5 Mbps To 300 Mbps (Mcs0-Mcs15, Ht20/40) 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Transmit Power | Ce: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) Fcc: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Wireless Functions | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up To 16 SSIDs, 8 For Each Band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power On dBm) QoS (WMM) MU-MIMO Omada Mesh Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics Based On SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID To VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Management | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes, Through Omada Cloud-Based Controller OC300 OC200 Omada Software Controller |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-Based Management | Yes |
| L3 Management | Yes |
| Multi-Site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring The Use Of Omada Cloud-Based Controller |
| Others | |
| Certification | CE, FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature : -30–70 °C (-22–158 °F) Storage Temperature : -40–70 °C (-40–158 °F) Operating Humidity : 10–90% RH Non-Condensing Storage Humidity : 5–90% RH Non-Condensing |
What In The Box
- 1 x TP-Link Omada EAP650-Outdoor AX3000 Indoor Outdoor WiFi 6 Access Point with PoE MESH Technology
- 1 x Passive PoE Adapter
- 1 x Power Cord
- 1 x Mounting Kits
- 1 x Waterproof Kit
- 1 x Installation Guide
Warranty
3 Year Warranty
Local Manufacture Warranty
