| Price | RM799.00 RM899.00 RM |
| Product SKU | AP-TL-EAP650-DESKTOP |
| Brand | TP-Link |
| Size (L x W x H) | 25 cm x 23 cm x 15 cm |
| Availability | 2 |
| Quantity |
|

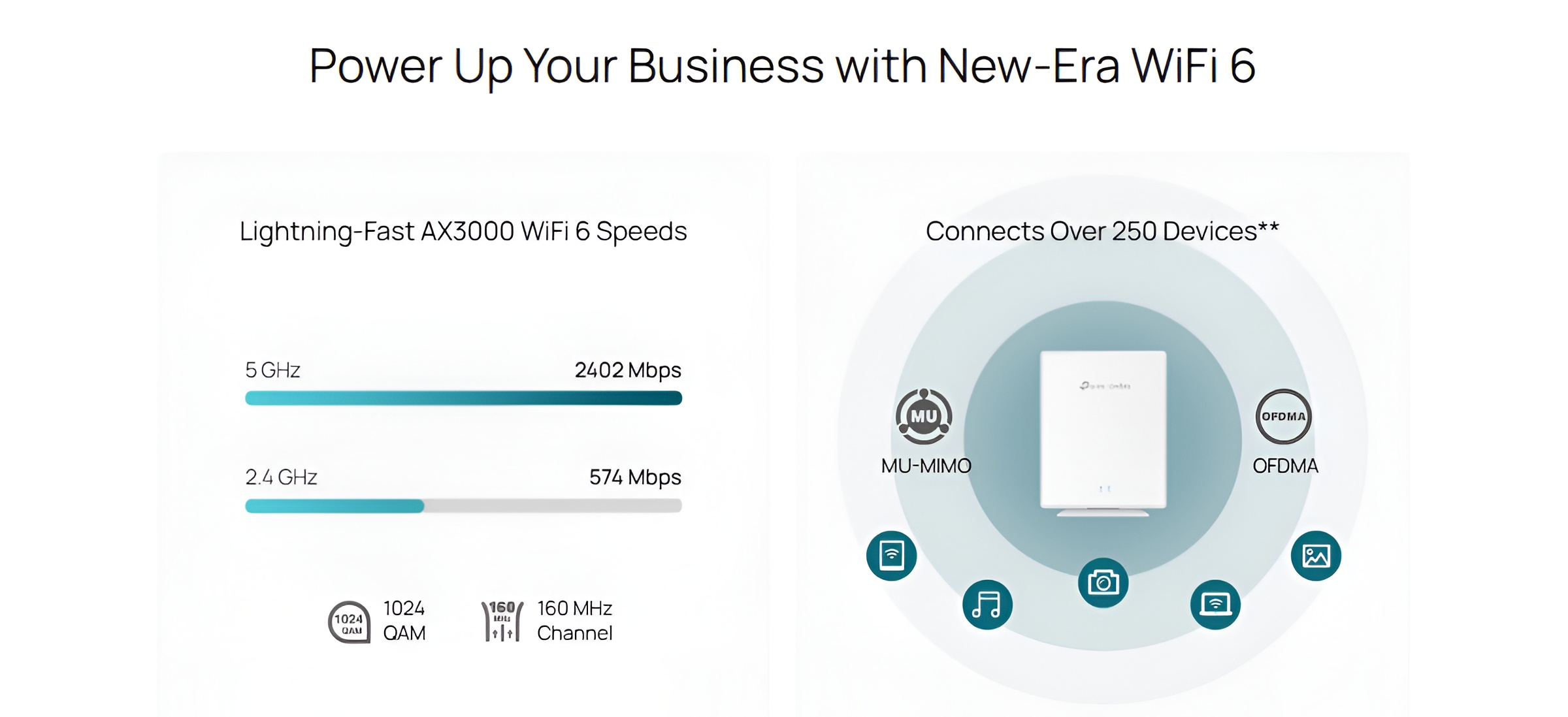

- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- No Installation needed:Supports desktop installation without the need for additional setup.

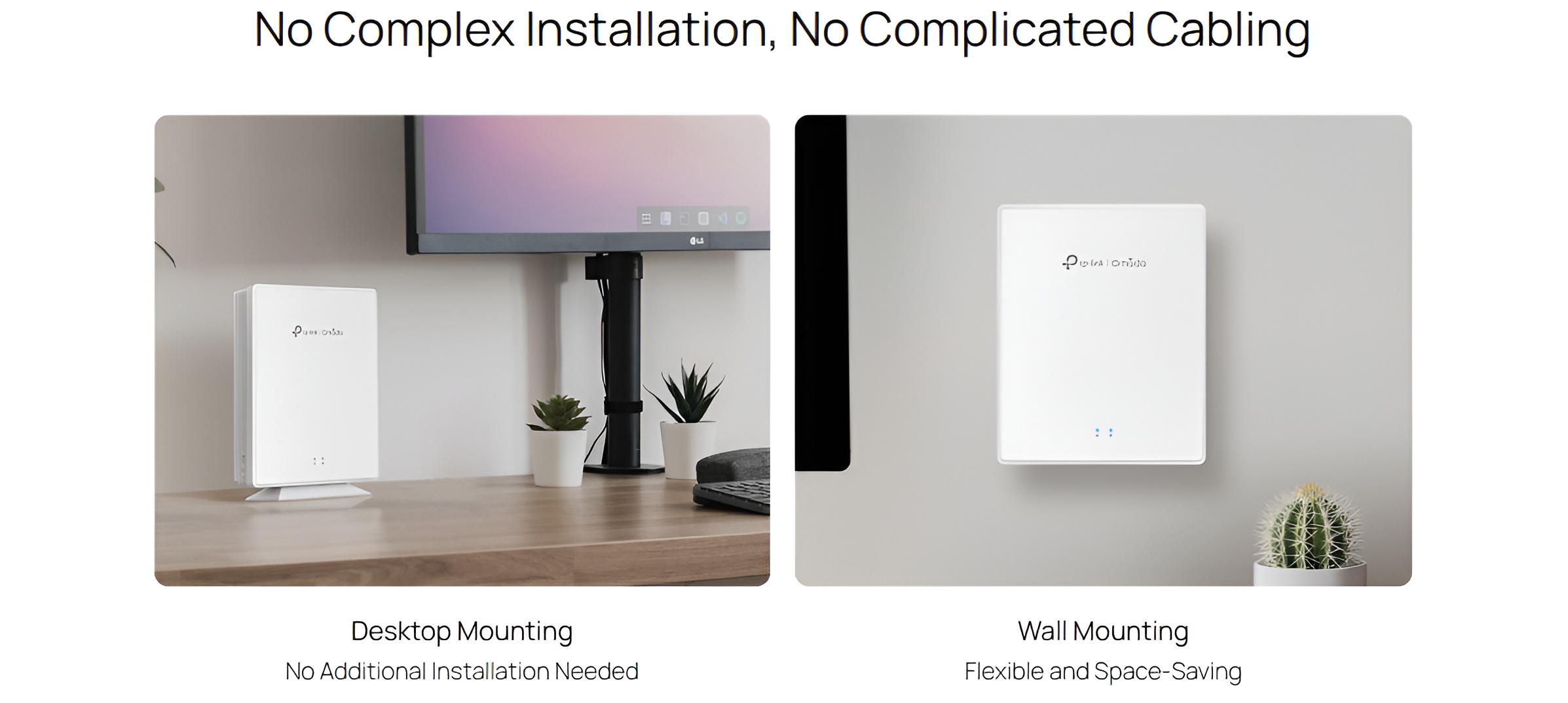

- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.

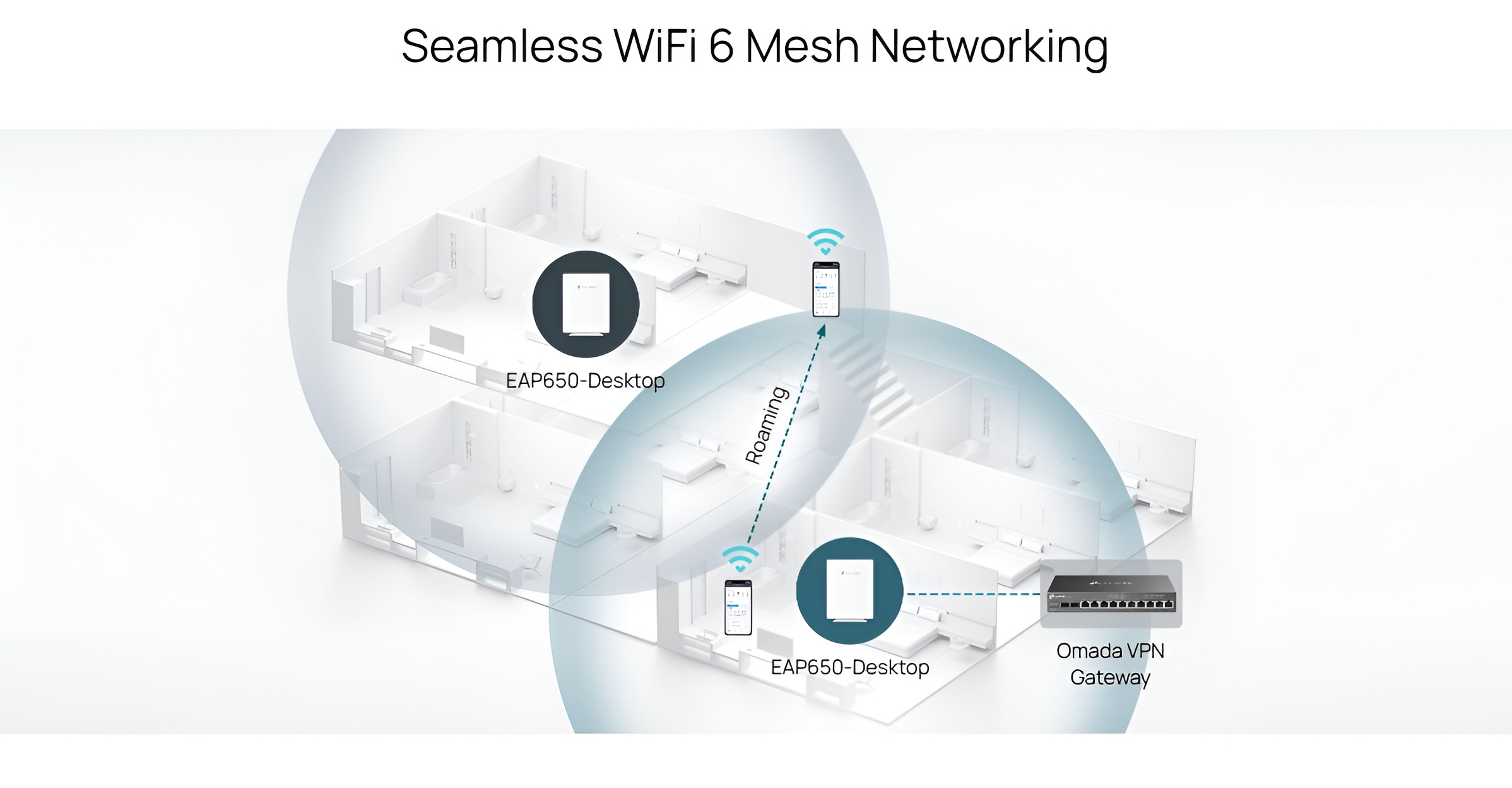

- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.

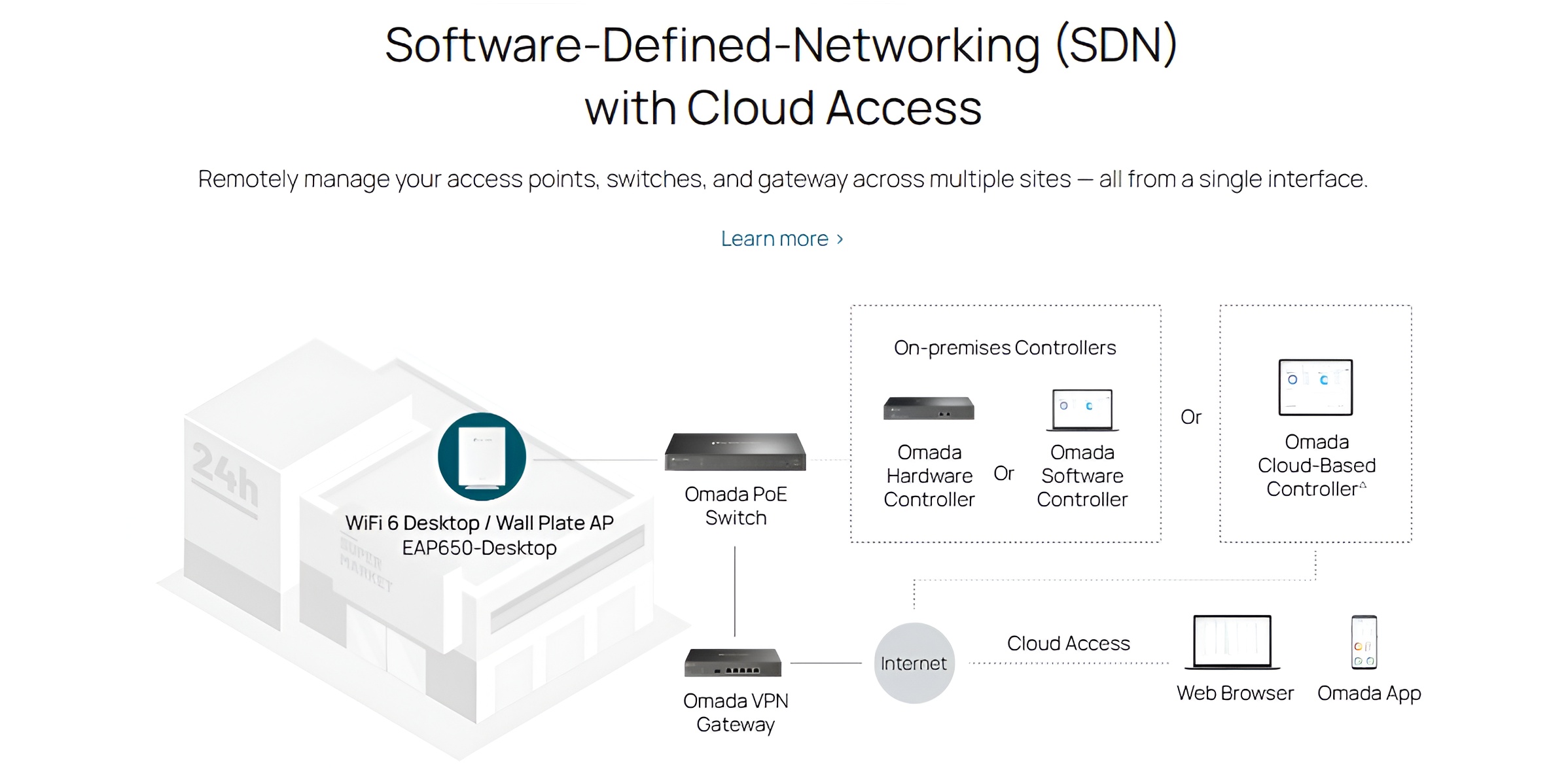

- Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management.
Features
- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports.
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
- No Installation needed:Supports desktop installation without the need for additional setup.
- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
- Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management.

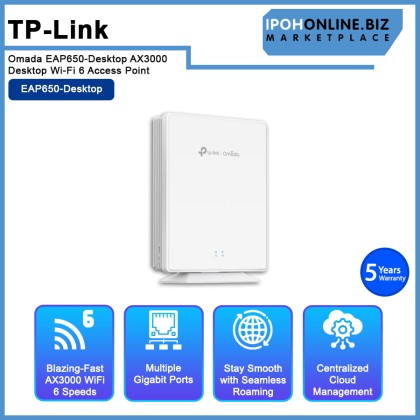

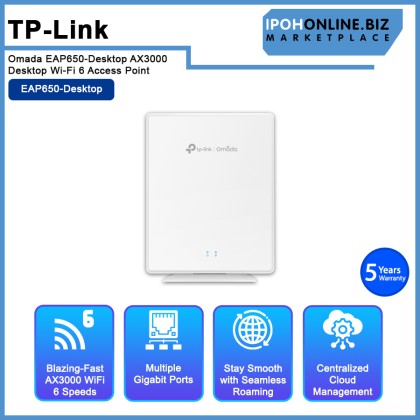

The TP-Link Omada EAP650-Desktop is a high-performance Wi-Fi 6 (AX3000) access point designed for small to medium business environments that demand reliable, high-speed connectivity. Offering combined wireless speeds of up to 2976 Mbps (574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz), it supports 250+ concurrent devices, making it ideal for offices, retail stores, and hospitality spaces. Equipped with four Gigabit Ethernet ports and an FXS port, the EAP650-Desktop also supports PoE in/out for flexible power options, while its compact design allows for both desktop placement and wall mounting. Advanced Wi-Fi 6 features such as OFDMA, MU-MIMO, HE160 bandwidth, beamforming, and seamless roaming ensure efficient multi-user performance and stable coverage. For security, it includes WPA3, VLAN, captive portal, rogue AP detection, and access control. Managed through the Omada cloud platform, software, or hardware controllers, it offers centralized cloud management, zero-touch provisioning, and easy control via the Omada app—delivering enterprise-grade performance in a sleek, versatile package.
Specifications

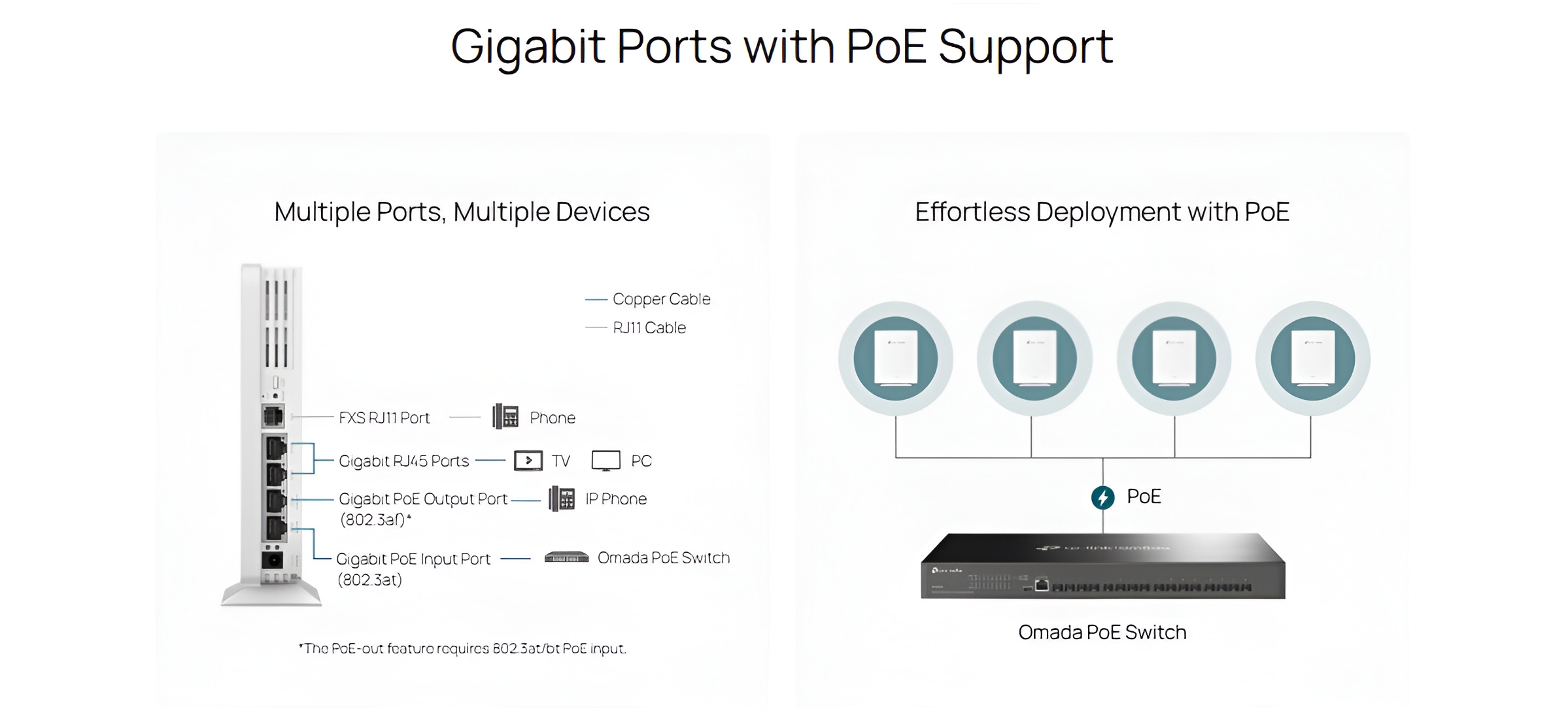

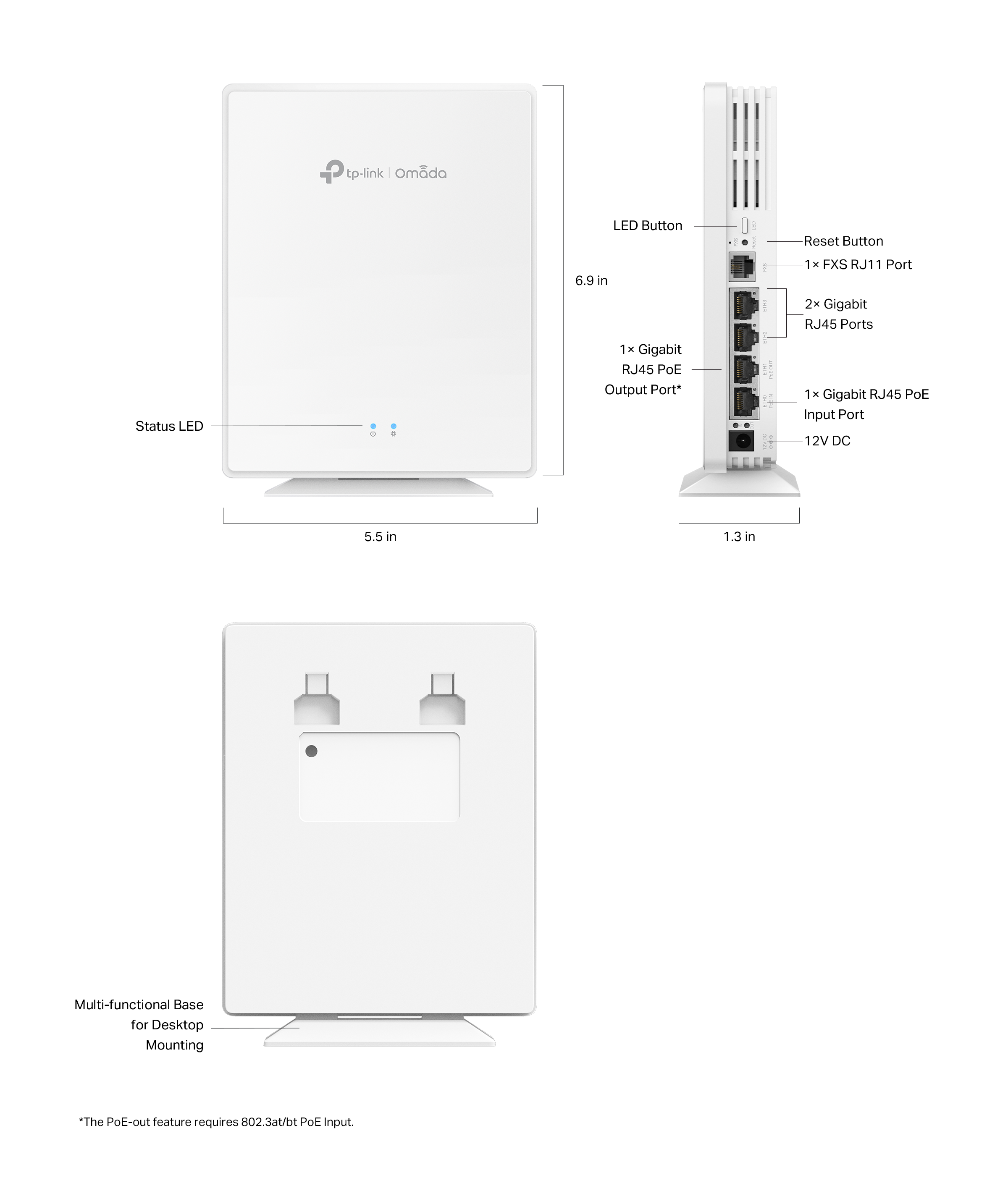

| Interface | 4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Button | • Reset • LED |
| Power Supply | 802.3 af/at/bt PoE or 12V/1.5A DC *PoE Out requires 802.3at/bt PoE power supply |
| Max. Power Consumption | 17.3W (PoE Out Off) |
| Weight | 452g (excluding mounting base) |
| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna | Internal Omni • 2.4 GHz: 2× 5 dBi • 5 GHz: 3× 4.7 dBi |
| Range | 140㎡(1500 ft²)* |
| Mounting | Desktop / Wall mouting (Kits included) |
| Concurrent Clients | 250+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 2402 Mbps† • 2.4 GHz: 574 Mbps |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡ • HE160 (160 MHz Bandwidth)‡ • OFDMA‡ • Seamless Roaming § • Multiple SSIDs (16 SSIDs, 8 on each band) • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • Guest Network • Automatic Channel Assignment • Beamforming • Rate Limit (Based on SSID/Client) • Band Steering • Load Balance • Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule and Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <29 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes.Reauire the use of Omada Cloud-Based controller |
| Certification | CE, FCC, RoHS, IC |
| Package Content | • EAP650-Desktop • Desktop/Wall Mounting Kit • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |

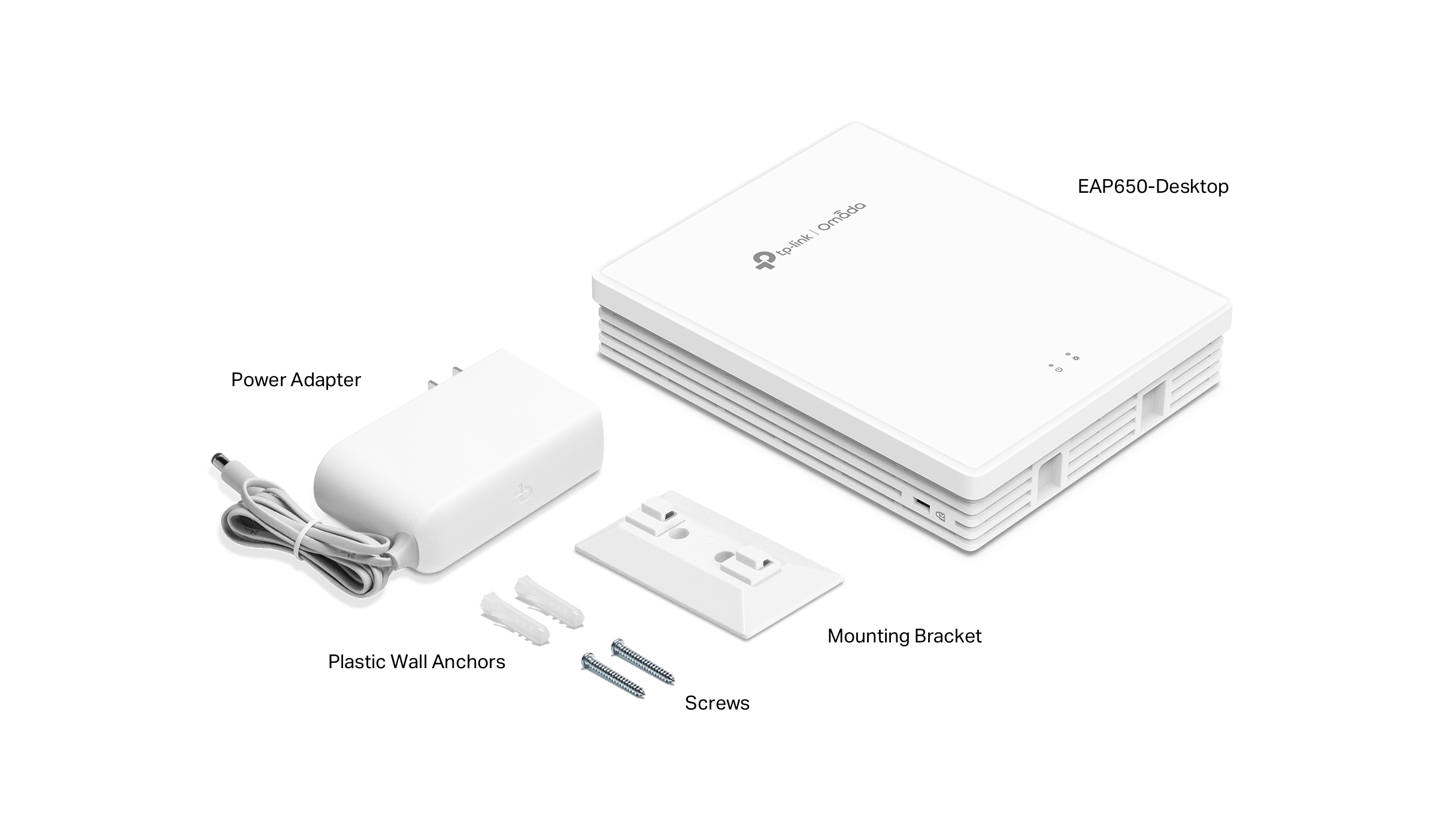

What's in the box
- 1 x EAP650-Desktop
- 1 x Power Adapter
- 1 x Mounting Bracket
- 2 x Plastic Wall Anchors
- 2 x Screws
Warranty
5 Years Warranty
Local Manufacturer Warranty
- 1 x EAP650-Desktop
- 1 x Power Adapter
- 1 x Mounting Bracket
- 2 x Plastic Wall Anchors
- 2 x Screws
